HIKVISION DS-7204HGHI-F1 User Manual

Digital Video Recorder User Manual
201

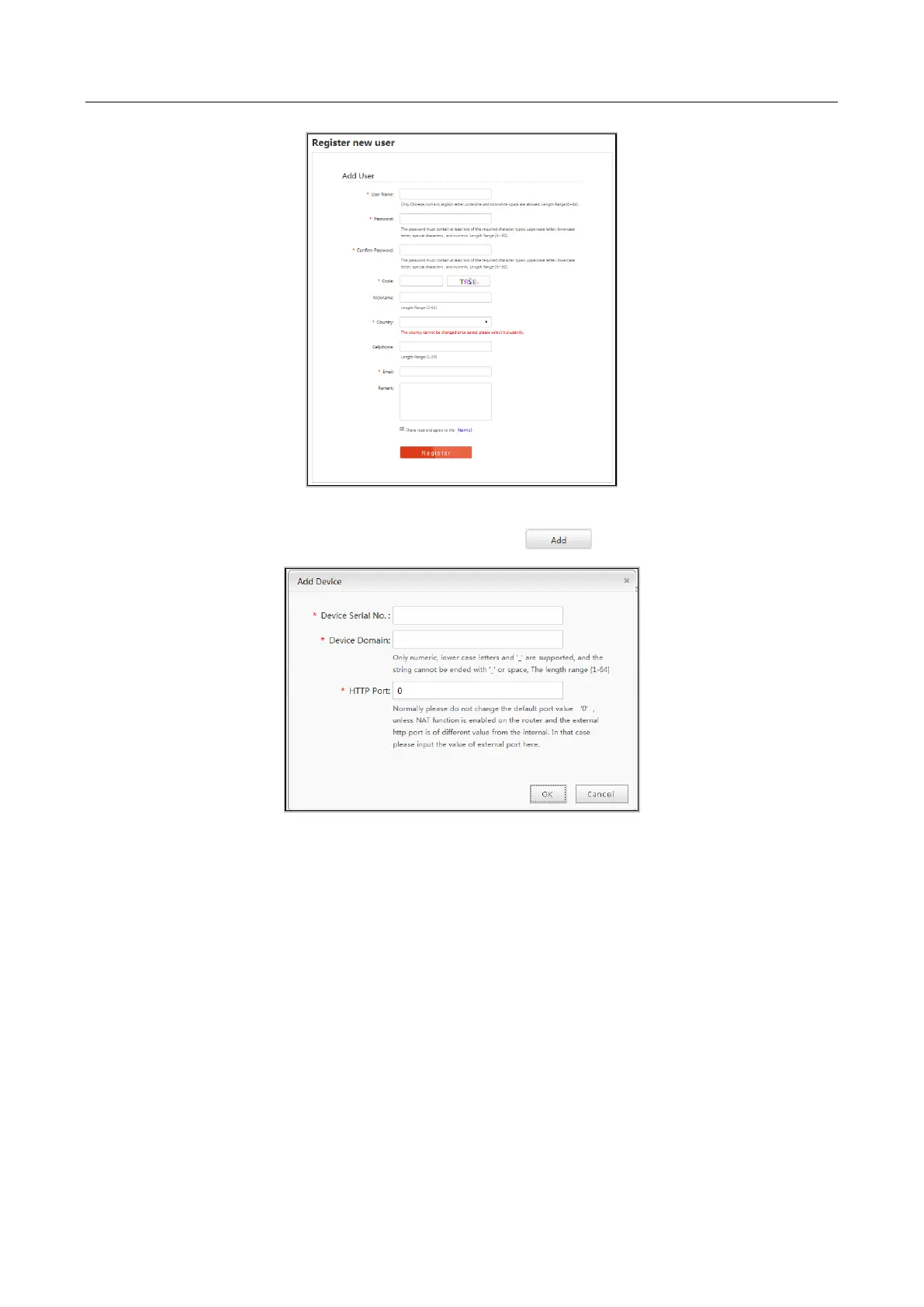

Figure 12-10 Register an Account
3) In the Device Management interface, click to register the device.
Figure 12-11 Register the Device
4) Input Device Serial No., Device Domain (Device Name) and HTTP Port. And click OK
to add the device.
 Access the Device via Web Browser or Client Software
After having successfully registered the device on the HiDDNS server, you can access
your device via web browser or Client Software with the Device Domain (Device
Name).
 OPTION 1: Access the Device via Web Browser
Open a web browser, and enter http://www.hiddns.com/alias in the address bar. Alias
refers to the Device Domain on the device or the Device Name on the HiDDNS server.
Example: http://www.hiddns.com/dvr

HIKVISION DS-7204HGHI-F1 Specifications

General

Voltage	12 V
Product color	Black
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Video input channels	4 channels
USB 2.0 ports quantity	2
Power consumption (typical)	8 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	260 x 222 x 45 mm
