HIKVISION DS-7204HGHI-F1 User Manual

Digital Video Recorder User Manual
254

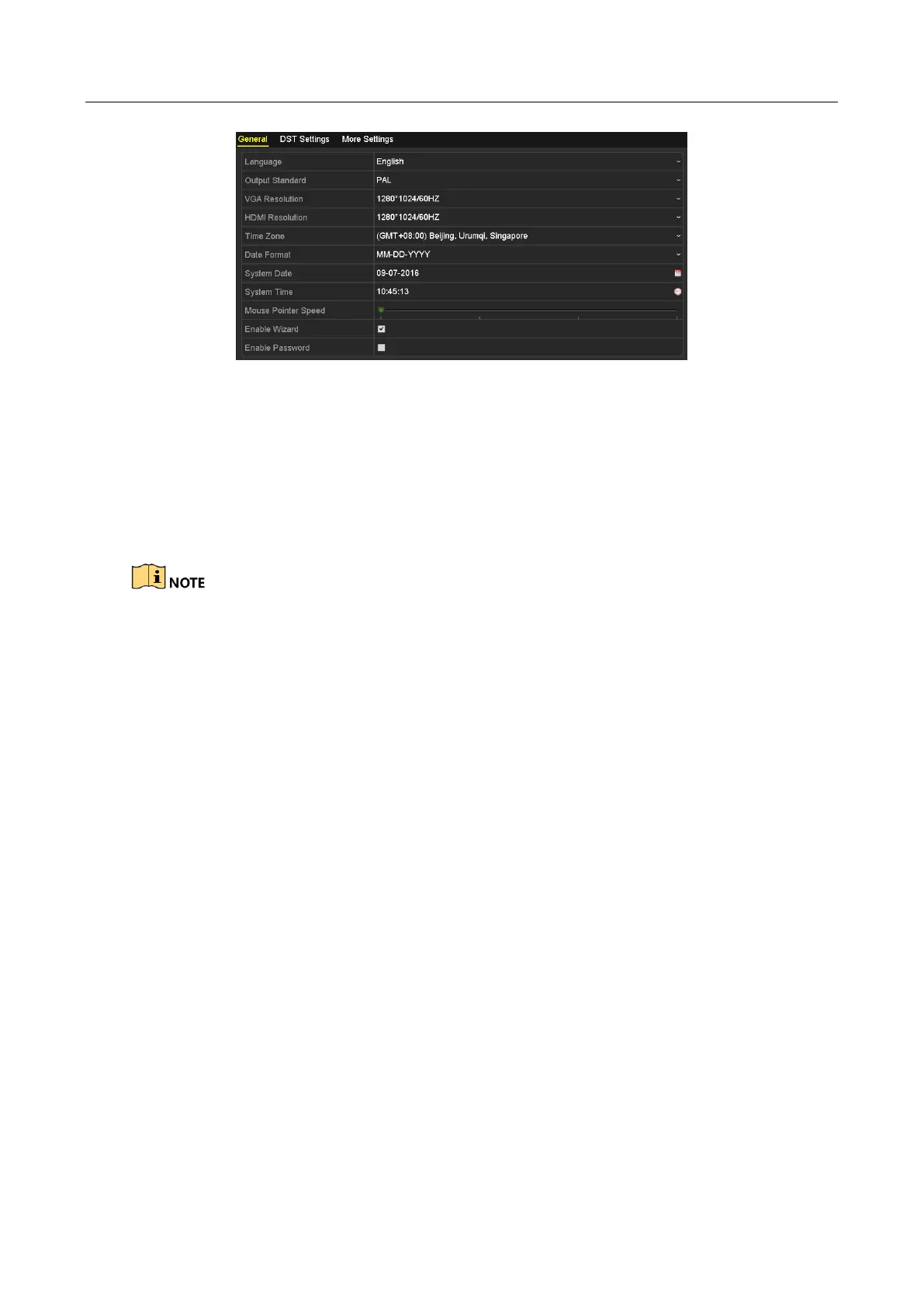

Figure 17-3 General Settings Interface (for Independent VGA and HDMI Output)
Step 3 Configure the following settings:
 Language: The default language used is English.
 Output Standard: Select the output standard to be PAL or NTSC.
 VGA/HDMI Resolution: Select the output resolution, which must be the same with the
resolution of the VGA/HDMI display.

For DS-7300/8100/9000HUHI-F/N series, VGA/HDMI1 Resolution and HDMI2 Resolution
can be configured separately. Up to 1920 × 1080/60 Hz resolution is supported for
VGA/HDMI1 output and up to 4K (3840 × 2160)/30 Hz resolution is supported for HDMI2
output.

For DS-7608/7616HUHI-F/N and DS-7300/8100HQHI-F/N series DVR, the HDMI and VGA
interfaces can be configured to be simultaneous or independent (Refer to Chapter 17.4
Configuring More Settings for reference). If you have configured HDMI/VGA simultaneous
output, you can set the VGA/HDMI Resolution. If you have configured independent HDMI
and VGA output, you can set the VGA Resolution and HDMI Resolution independently. Up
to 1920 × 1080/60 Hz resolution is supported for VGA output and up to 4K (3840 × 2160)/30
Hz resolution is supported for HDMI output.
 Time Zone: Select the time zone.
 Date Format: Select the date format.
 System Date: Select the system date.
 System Time: Select the system time.
 Mouse Pointer Speed: Set the speed of mouse pointer; 4 levels are configurable.
 Enable Wizard: Enable/disable the Wizard when the device starts up.
 Enable Password: Enable/disable the use of the login password.

HIKVISION DS-7204HGHI-F1 Specifications

General

Voltage	12 V
Product color	Black
Rack capacity	1U
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Video input channels	4 channels
USB 2.0 ports quantity	2
Power consumption (typical)	8 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	1000 g
Dimensions (WxDxH)	260 x 222 x 45 mm
