HIKVISION DS-7204HUHI-K1 User Manual

Digital Video Recorder User Manual
142

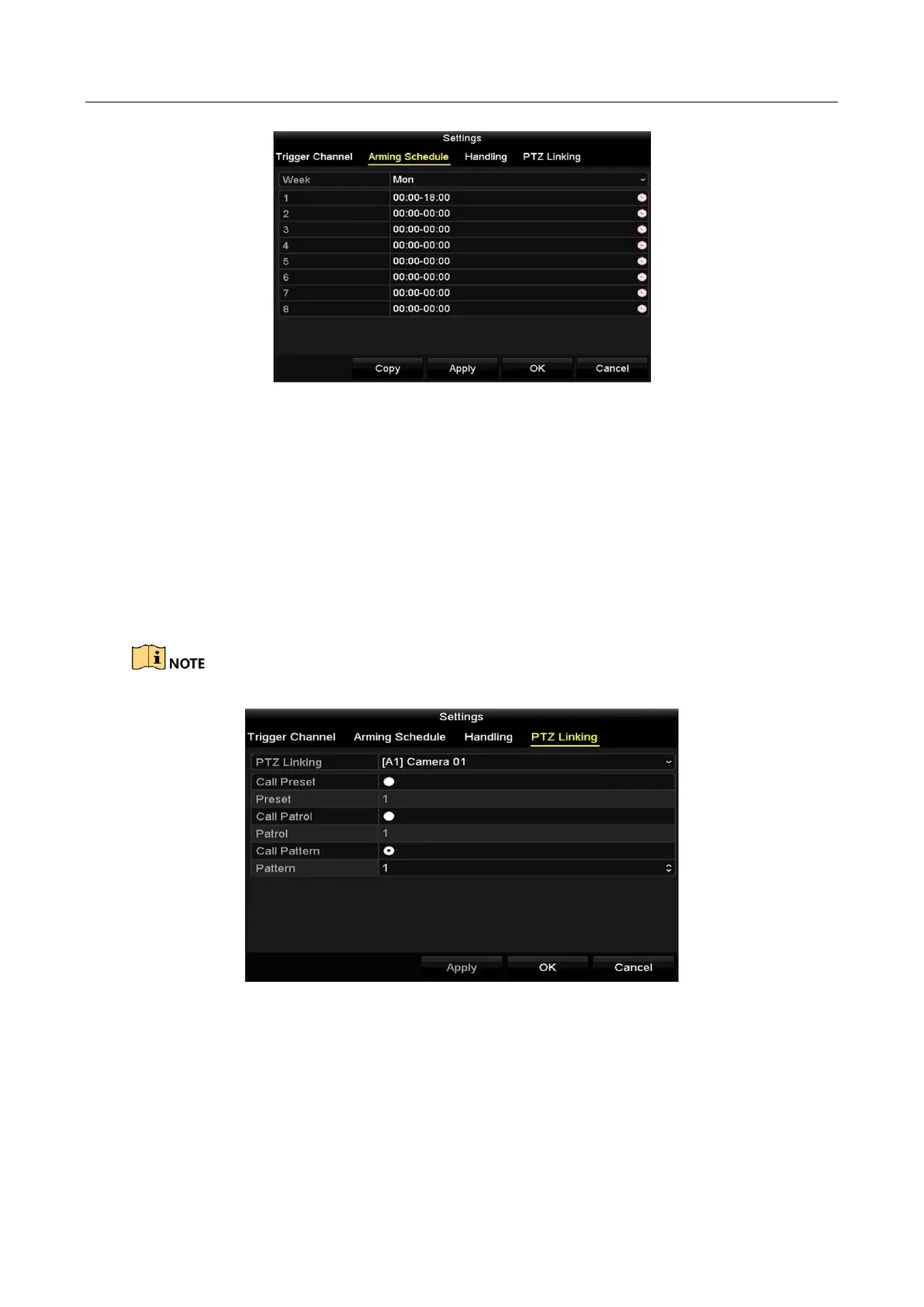

Figure 9-16 Set Arming Schedule
Step 6 Click the Handling tab to set up alarm response actions of POS alarm (Refer to Chapter 8.7
Setting Alarm Response Actions).
Repeat the above steps to set up arming schedule of other days of a week.
Click the OK button to complete the POS settings of the channel.
Step 7 Select PTZ Linking tab and set PTZ linkage of the POS alarm.
Set PTZ linking parameters and click the OK button to complete the settings of the alarm
input.
Please check whether the PTZ or speed dome supports PTZ linkage.
Figure 9-17 Set PTZ Linking
Step 8 Click OK to save the settings.

HIKVISION DS-7204HUHI-K1 Specifications

General

Video Input	4 channels
Video Output	1 HDMI, 1 VGA
Video Bitrate	32 Kbps to 6 Mbps
Audio Bitrate	64 Kbps
Dual Stream	Yes
Stream Type	Video, Video & Audio
Synchronous Playback	4-ch
SATA	1 SATA interface
HDD Capacity	Up to 10 TB capacity for each disk
Network Interface	1, RJ45 10M/100M self-adaptive Ethernet interface
Power Supply	12 VDC
Operating Humidity	10% to 90%
Max Resolution	1080p
Video Compression	H.264+
Audio Output	1-ch RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ)
HDMI Output	1
VGA Output	1
Recording Resolution	1080p
Playback Resolution	1080p
Network Protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS
USB Interface	2 USB 2.0
Operating Temperature	-10 °C to +55 °C
