Digital Video Recorder User Manual
70
Step 1 Click the button PTZ in the lower-right corner of the PTZ Settings interface;
Or press the PTZ button on the front panel or click the PTZ Control icon in the quick
setting bar, or select the PTZ option in the right-click menu to show the PTZ control panel.
Step 2 Click the General tab to show the general settings of the PTZ control.

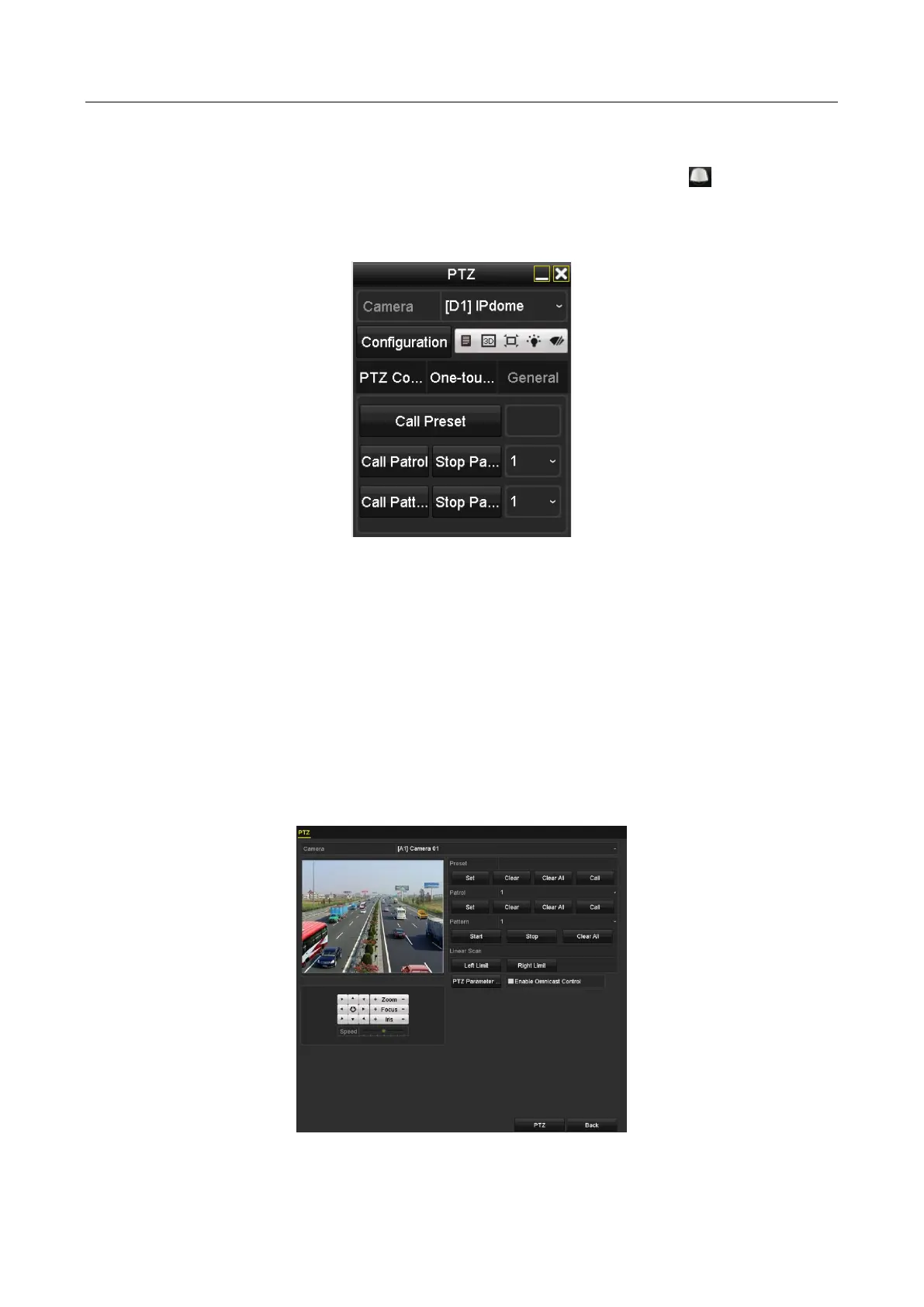

Figure 4-8 PTZ Panel - General
Step 3 Select a patrol in the drop-down list and click the Call Patrol button to call it.
Step 4 You can click the Stop Patrol button to stop calling it.
4.2.5 Customizing Patterns
Purpose
Patterns can be set by recording the movement of the PTZ. You can call the pattern to make the
PTZ movement according to the predefined path.
Step 1 Go to Menu>Camera>PTZ.
Figure 4-9 PTZ Settings

HIKVISION DS-7204HUHI-K1 Specifications

General

Video Input	4 channels
Video Output	1 HDMI, 1 VGA
Video Bitrate	32 Kbps to 6 Mbps
Audio Bitrate	64 Kbps
Dual Stream	Yes
Stream Type	Video, Video & Audio
Synchronous Playback	4-ch
SATA	1 SATA interface
HDD Capacity	Up to 10 TB capacity for each disk
Network Interface	1, RJ45 10M/100M self-adaptive Ethernet interface
Power Supply	12 VDC
Operating Humidity	10% to 90%
Max Resolution	1080p
Video Compression	H.264+
Audio Output	1-ch RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ)
HDMI Output	1
VGA Output	1
Recording Resolution	1080p
Playback Resolution	1080p
Network Protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS
USB Interface	2 USB 2.0
Operating Temperature	-10 °C to +55 °C
