HIKVISION DS-7204HUHI-K1 User Manual

Digital Video Recorder User Manual
90
There are three different modes for the date format to configure holiday schedule. By
Month, By Week, and By Date are selectable.
4) Set the start and end date.
5) Click Apply to save settings.
6) Click OK to exit the Edit interface.
Step 3 Configure the record schedule.
Please refer to the Chapter 5.2 Configuring Recording and Capture Schedule, while you
may choose Holiday in the Schedule drop-down list, or you can draw the schedule on the
timeline of Holiday.

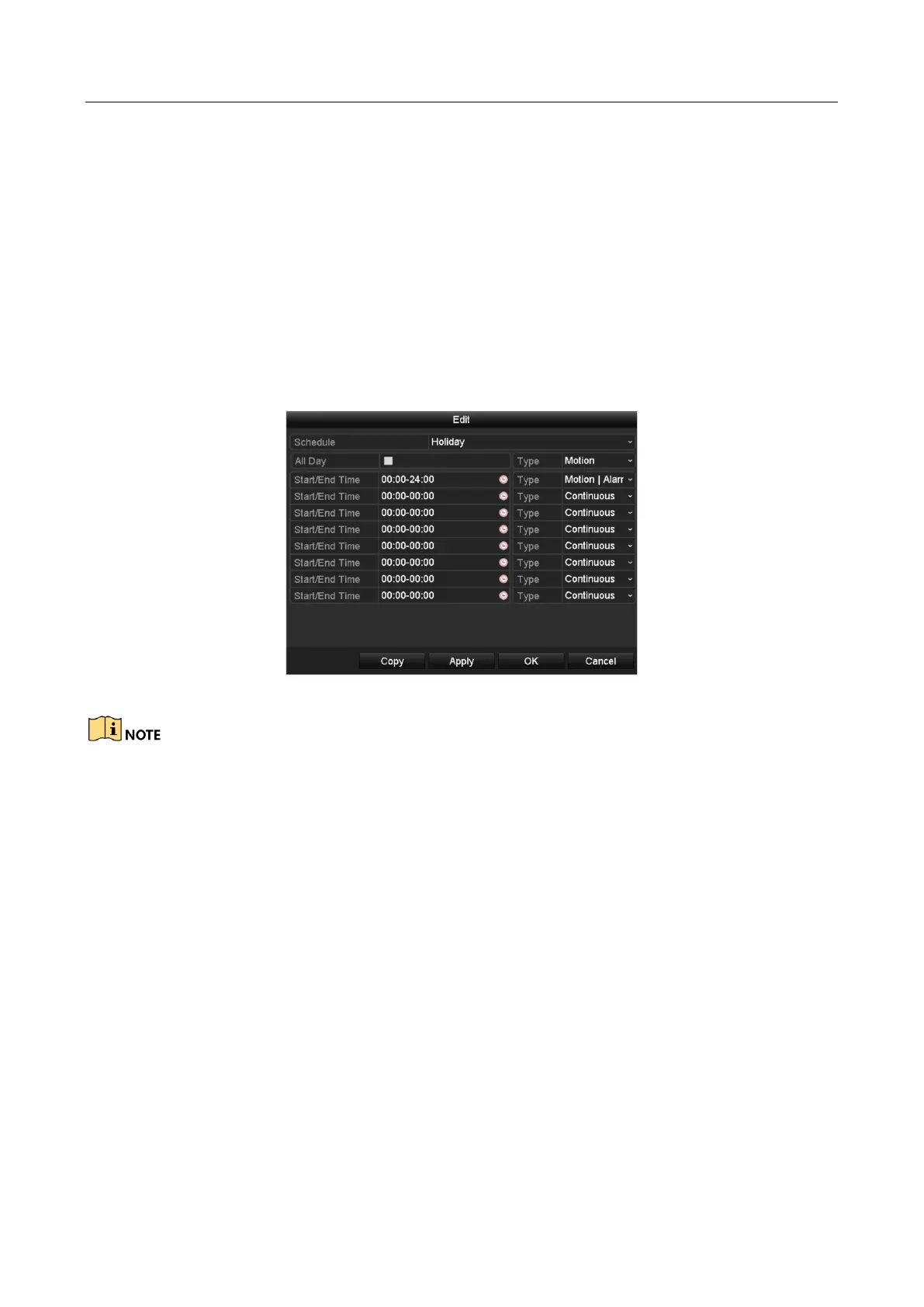

Figure 5-24 Edit Schedule- Holiday

Up to 8 periods can be configured for each day. And the time periods cannot be overlapped
each other.

In the time table of the channel, both holiday schedule and normal day schedule are
displayed.

Repeat the above step 4 to set Holiday schedule for other channels. If the holiday schedule
can also be used to other channels, click Copy and choose the channel you want to apply
the settings.
5.8 Configuring Redundant Recording
Purpose
Enabling redundant recording, which means saving the record files not only in the R/W HDD but
also in the redundant HDD, will effectively enhance the data safety and reliability.
Before you start

HIKVISION DS-7204HUHI-K1 Specifications

General

Video Input	4 channels
Video Output	1 HDMI, 1 VGA
Video Bitrate	32 Kbps to 6 Mbps
Audio Bitrate	64 Kbps
Dual Stream	Yes
Stream Type	Video, Video & Audio
Synchronous Playback	4-ch
SATA	1 SATA interface
HDD Capacity	Up to 10 TB capacity for each disk
Network Interface	1, RJ45 10M/100M self-adaptive Ethernet interface
Power Supply	12 VDC
Operating Humidity	10% to 90%
Max Resolution	1080p
Video Compression	H.264+
Audio Output	1-ch RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ)
HDMI Output	1
VGA Output	1
Recording Resolution	1080p
Playback Resolution	1080p
Network Protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS
USB Interface	2 USB 2.0
Operating Temperature	-10 °C to +55 °C
