HIKVISION DS-7204HUHI-K1 User Manual

Digital Video Recorder User Manual
173
Step 4 Create the self-signed certificate or authorized certificate.

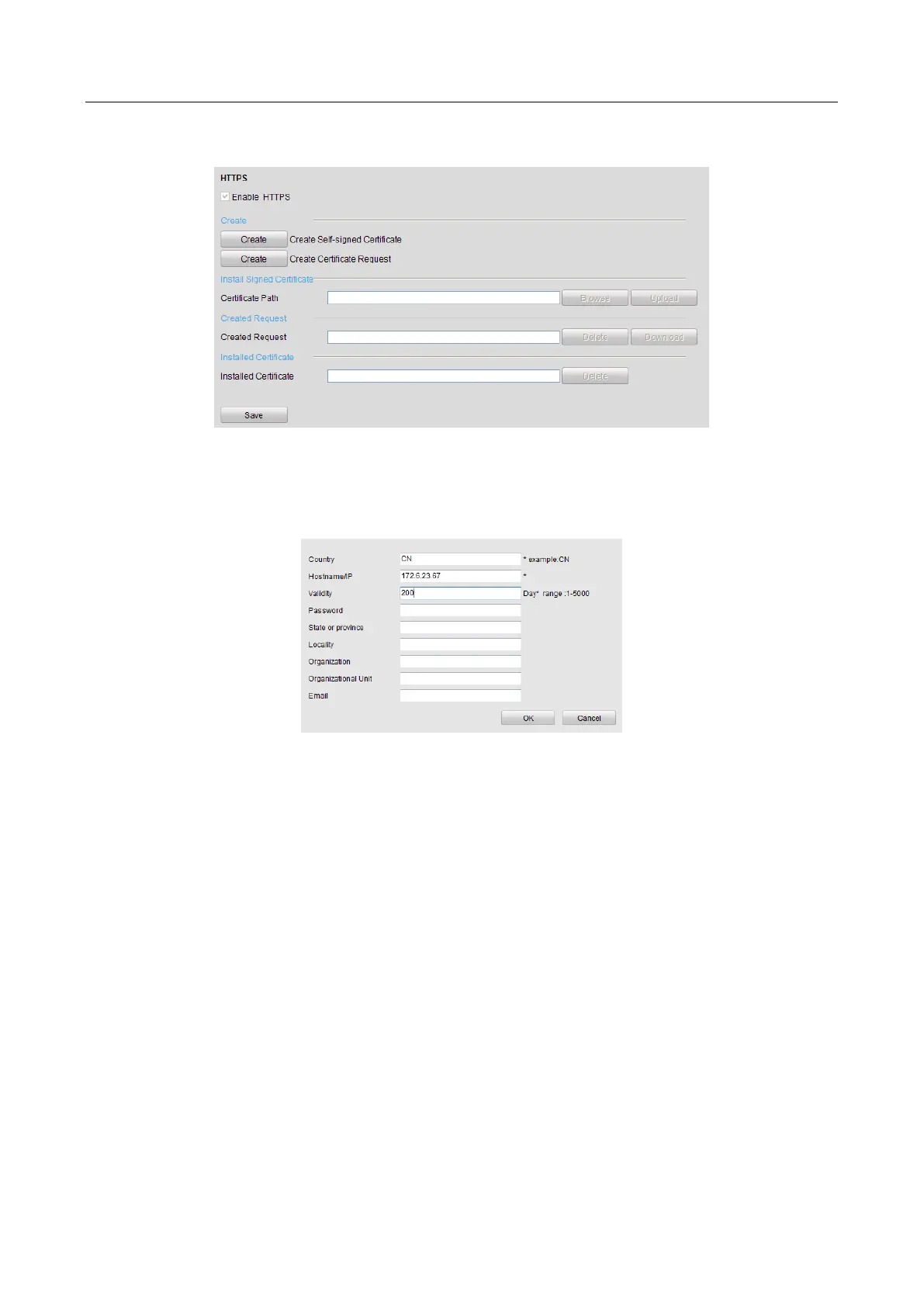

Figure 12-15 HTTPS Settings
OPTION 1: Create the self-signed certificate
1) Click the Create button to create the following dialog box.
Figure 12-16 Create Self-signed Certificate
2) Enter the country, host name/IP, validity and other information.
3) Click OK to save the settings.
OPTION 2: Create the authorized certificate
1) Click the Create button to create the certificate request.
2) Download the certificate request and submit it to the trusted certificate authority for
signature.
3) After receiving the signed valid certificate, import the certificate to the device.
Step 5 There will be the certificate information after you successfully create and install the
certificate.

HIKVISION DS-7204HUHI-K1 Specifications

General

Video Input	4 channels
Video Output	1 HDMI, 1 VGA
Video Bitrate	32 Kbps to 6 Mbps
Audio Bitrate	64 Kbps
Dual Stream	Yes
Stream Type	Video, Video & Audio
Synchronous Playback	4-ch
SATA	1 SATA interface
HDD Capacity	Up to 10 TB capacity for each disk
Network Interface	1, RJ45 10M/100M self-adaptive Ethernet interface
Power Supply	12 VDC
Operating Humidity	10% to 90%
Max Resolution	1080p
Video Compression	H.264+
Audio Output	1-ch RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ)
HDMI Output	1
VGA Output	1
Recording Resolution	1080p
Playback Resolution	1080p
Network Protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS
USB Interface	2 USB 2.0
Operating Temperature	-10 °C to +55 °C
