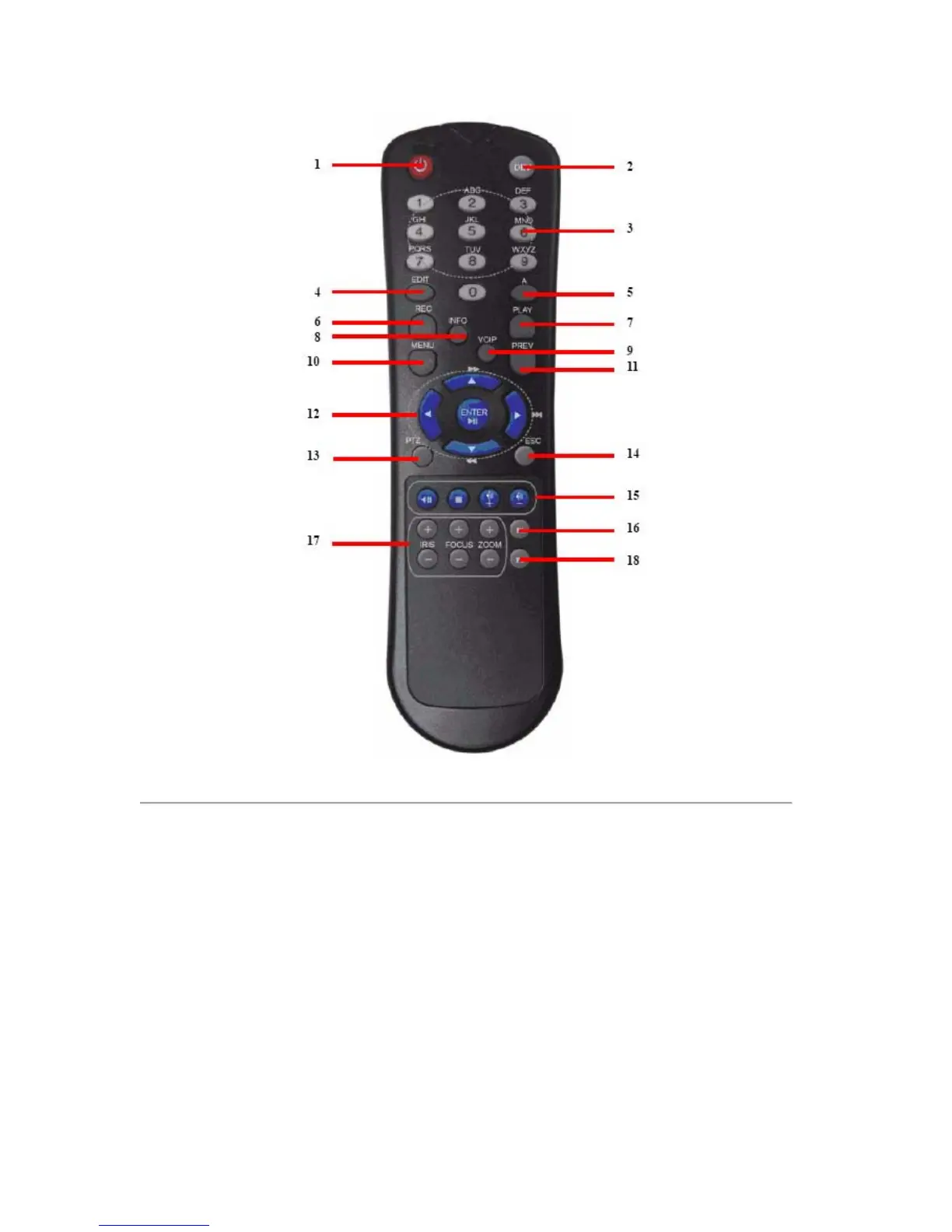

Figure 5. IR Remote Control
The keys on the remote control closely resemble the ones found on the front panel. Referring to Figure 5, they include:
1. POWER Button: Power off DVR.
2. DEV Button: Enables/Disables Remote Control.
3. Alphanumeric Buttons: Same as Alphanumeric buttons on front panel.
4. EDIT Button: Same as EDIT button on front panel.
5. A Button: Same as A button on front panel.
6. REC Button: Same as REC button on front panel.
7. PLAY Button: Same as PLAY button on front panel.
8. INFO Button: Reserved.
9. VOIP Button: Reserved.
10. MENU Button: Same as MENU button on front panel.
11. PREV Button: Same as PREV button on front panel.
12. DIRECTION/ENTER Buttons: Same as DIRECTION/ENTER buttons on front panel.
13. PTZ Button: Same as PTZ button on front panel.
14. ESC Button: Same as ESC button on front panel.
15. RESERVED: Reserved.
16. F1 Button: Same as F1 button on front panel.
17. PTZ CONTROL Buttons: Buttons to adjust the iris, focus and zoom of a PTZ camera.
