HIKVISION DS-7208HQHI-F2/N User Manual

Digital Video Recorder User Manual
44

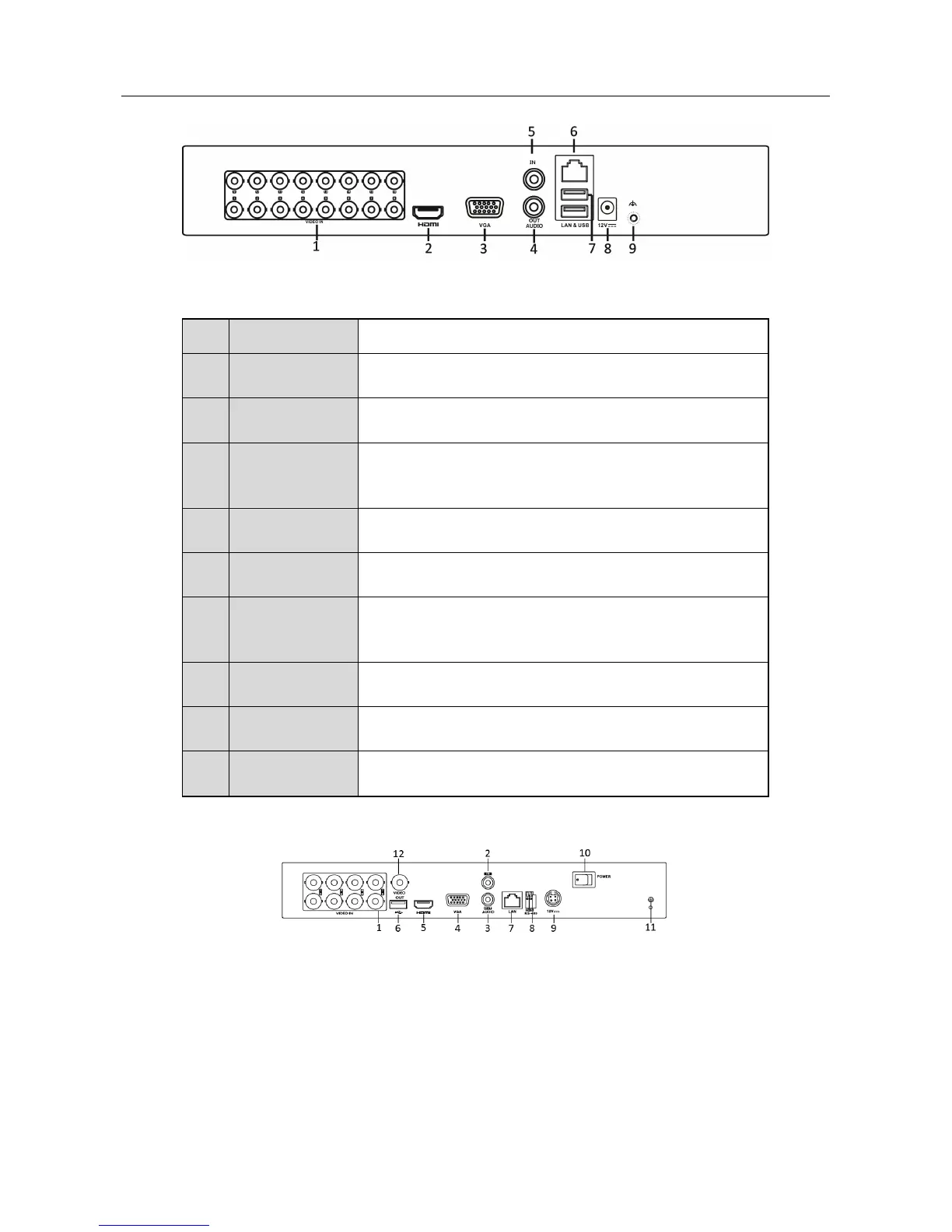

Figure 1-13 Rear Panel of DS-7200HGHI-E
Table 1-11 Description of Rear Panel
No. Item Description
1 VIDEO IN BNC interface for Turbo HD and analog video input.
2 HDMI HDMI video output connector.
3 VGA DB15 connector for VGA output. Display local video
output and menu.
4 AUDIO OUT RCA connector
5 AUDIO IN RCA connector
6 Network
Interface
Connector for network
7 USB Port Universal Serial Bus (USB) port for additional devices.
8 Power Supply 12 VDC power supply.
9 GND Ground
Rear Panel 4:
Figure 1-14 Rear Panel of DS-7200HQHI-F1/N
Rear Panel 5:

HIKVISION DS-7208HQHI-F2/N Specifications

General

Brand	HIKVISION
Model	DS-7208HQHI-F2/N
Category	DVR
Language	English
