Digital Video Recorder User Manual
45

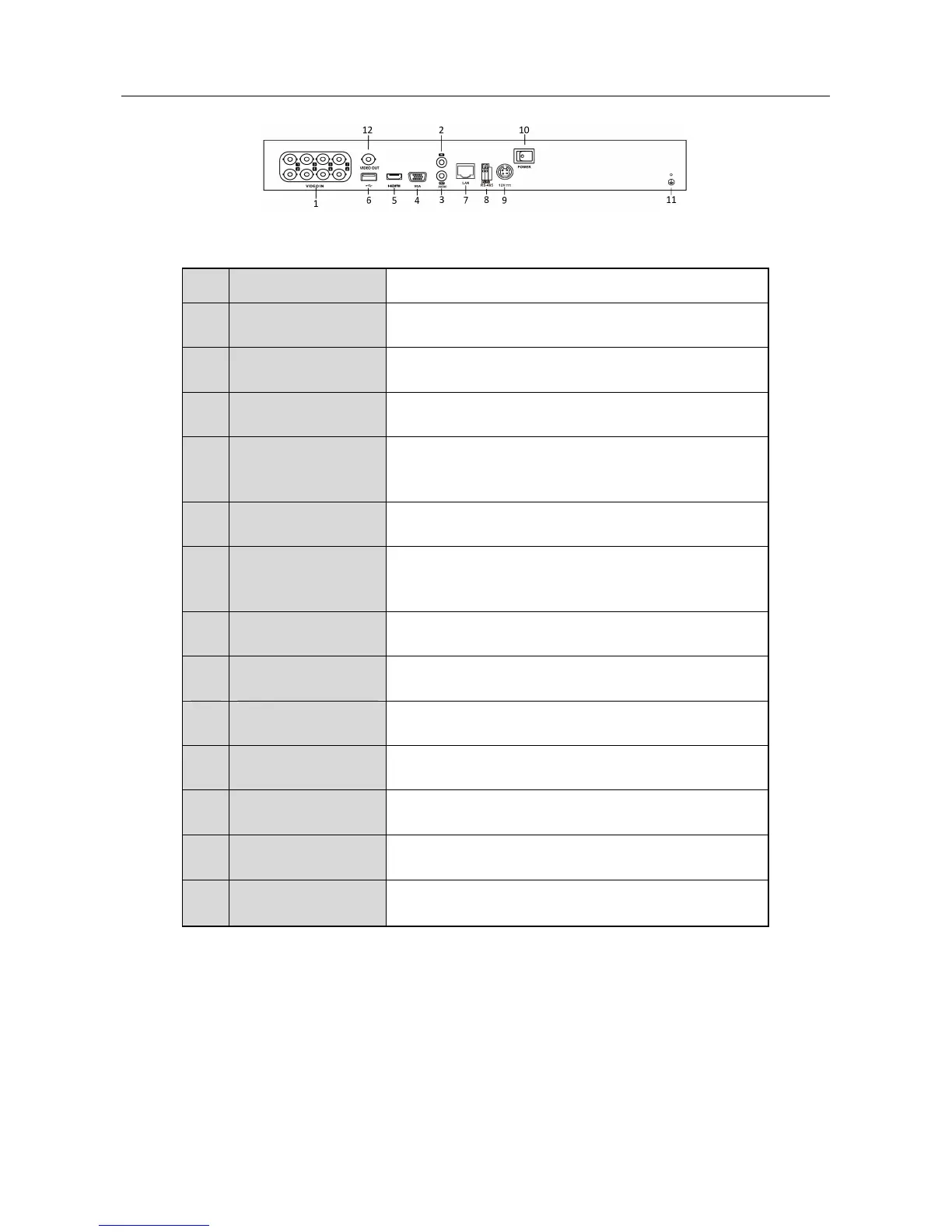

Figure 1-15 Rear Panel of DS-7200HQHI-F2/N
Table 1-12 Description of Rear Panel
No.
Item Description
1 VIDEO IN BNC interface for Turbo HD and analog video input.
2 AUDIO IN RCA connector
3 AUDIO OUT RCA connector
4 VGA
DB15 connector for VGA output. Display local
video output and menu.
5 HDMI HDMI video output connector.
6 USB Port
Universal Serial Bus (USB) port for additional
devices.
7 Network Interface Connector for network
8 RS-485 Interface Connector for RS-485 devices.
9 Power Supply 12VDC power supply.
10 Power Switch Switch for turning on/off the device.
11 GND Ground
12
VIDEO OUT
BNC connector for video output.
13
ALARM
Connector for alarm input/output.
