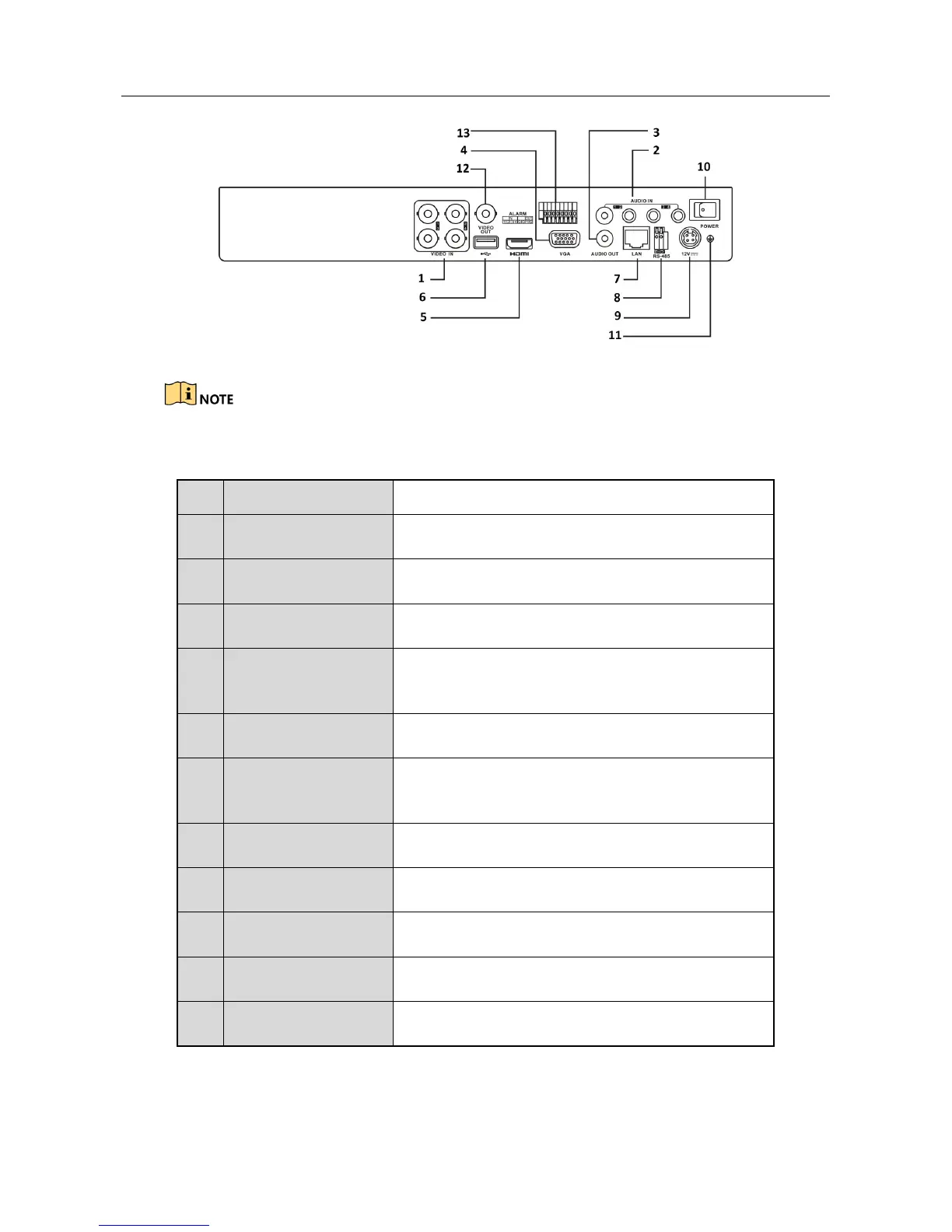

Figure 1-16 Rear Panel of DS-7200HUHI and 7600HUHI-F/N
The rear panels of DS-7208HUHI provide 8 video input interfaces. The rear panel of DS-7216HUHI
provides 16 video input interfaces.
Table 1-13 Description of Rear Panel
No.
Item Description
1 VIDEO IN BNC interface for Turbo HD and analog video input.
2 AUDIO IN RCA connector
3 AUDIO OUT RCA connector.
4
VGA DB15 connector for VGA output. Display local
video output and menu.
5 HDMI HDMI video output connector.
6
USB Port Universal Serial Bus (USB) port for additional
devices.
7 Network Interface Connector for network
8 RS-485 Interface Connector for RS-485 devices.
9 Power Supply 12VDC power supply.
10 Power Switch Switch for turning on/off the device.
11 GND Ground
