HIKVISION DS-7208HQHI-K2/P User Manual

Digital Video Recorder User Manual
102

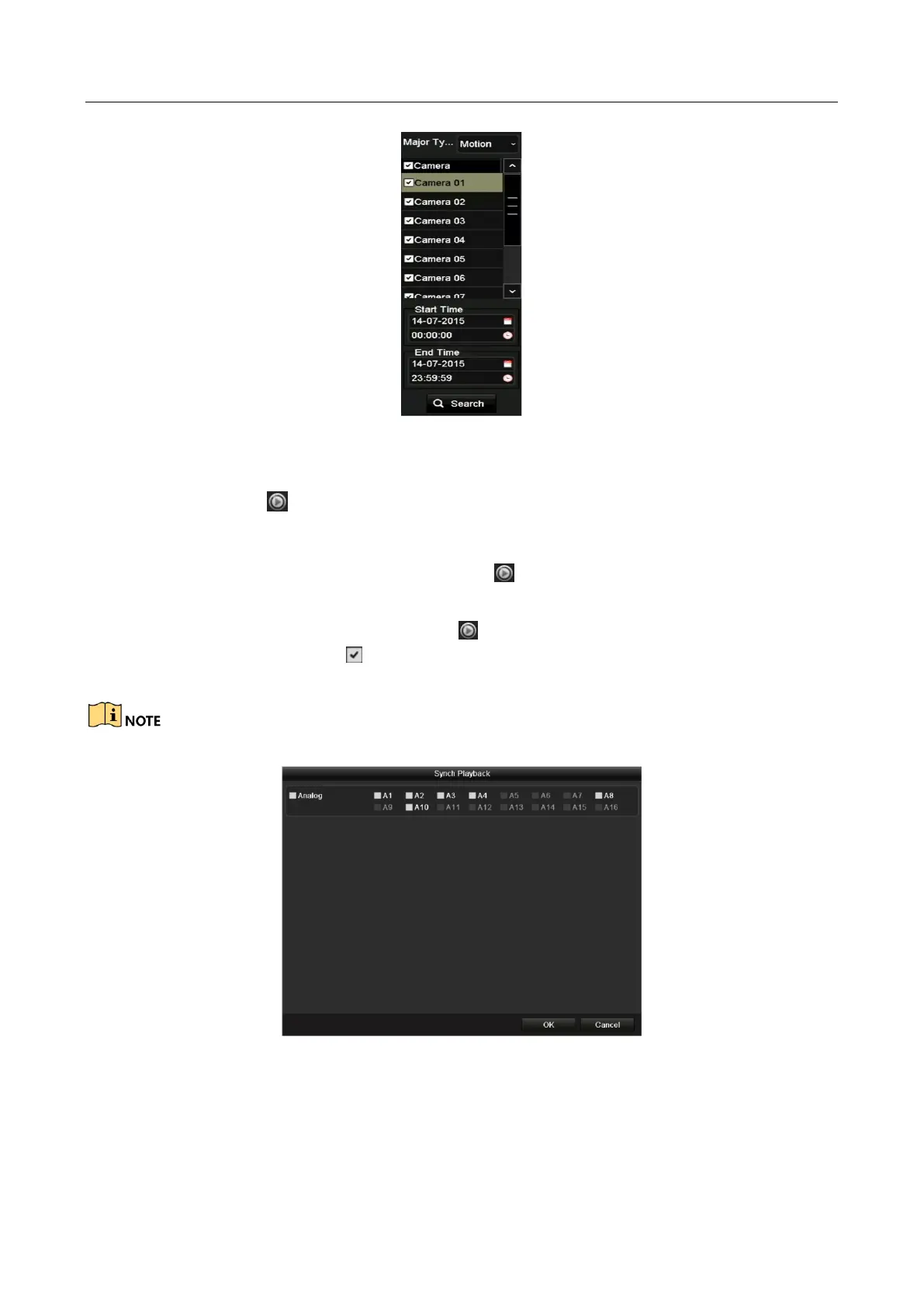

Figure 6-6 Video Search by Motion Detection
Step 4 Click Search, and the record files matching the search conditions will be displayed on a list.
Step 5 Select and click button to play back the record files.
You can click Back button to return to the search interface.
If there is only one channel triggered, clicking button takes you to Full-screen Playback
interface of this channel.
If several channels are triggered, clicking button takes you to the Synchronous
Playback interface. Check checkbox to select one channel for playback or select
multiple channels for synchronous playback.
The maximum number of channels for synchronous playback supported varies to different models.
Figure 6-7 Select Channels for Synchronous Playback
Step 6 On the Event Playback interface, you can select the main stream or sub-stream from the
drop-down list for playback.

HIKVISION DS-7208HQHI-K2/P Specifications

General

HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Number of HDDs supported	2
Power consumption (typical)	60 W
Voltage	12 V
Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
BNC input ports	1
Video input channels	8 channels
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	17480 g
Dimensions (WxDxH)	380 x 320 x 48 mm
