HIKVISION DS-7208HQHI-K2/P User Manual

Digital Video Recorder User Manual
116
The size of the currently selected files is displayed in the lower-left corner of the window.

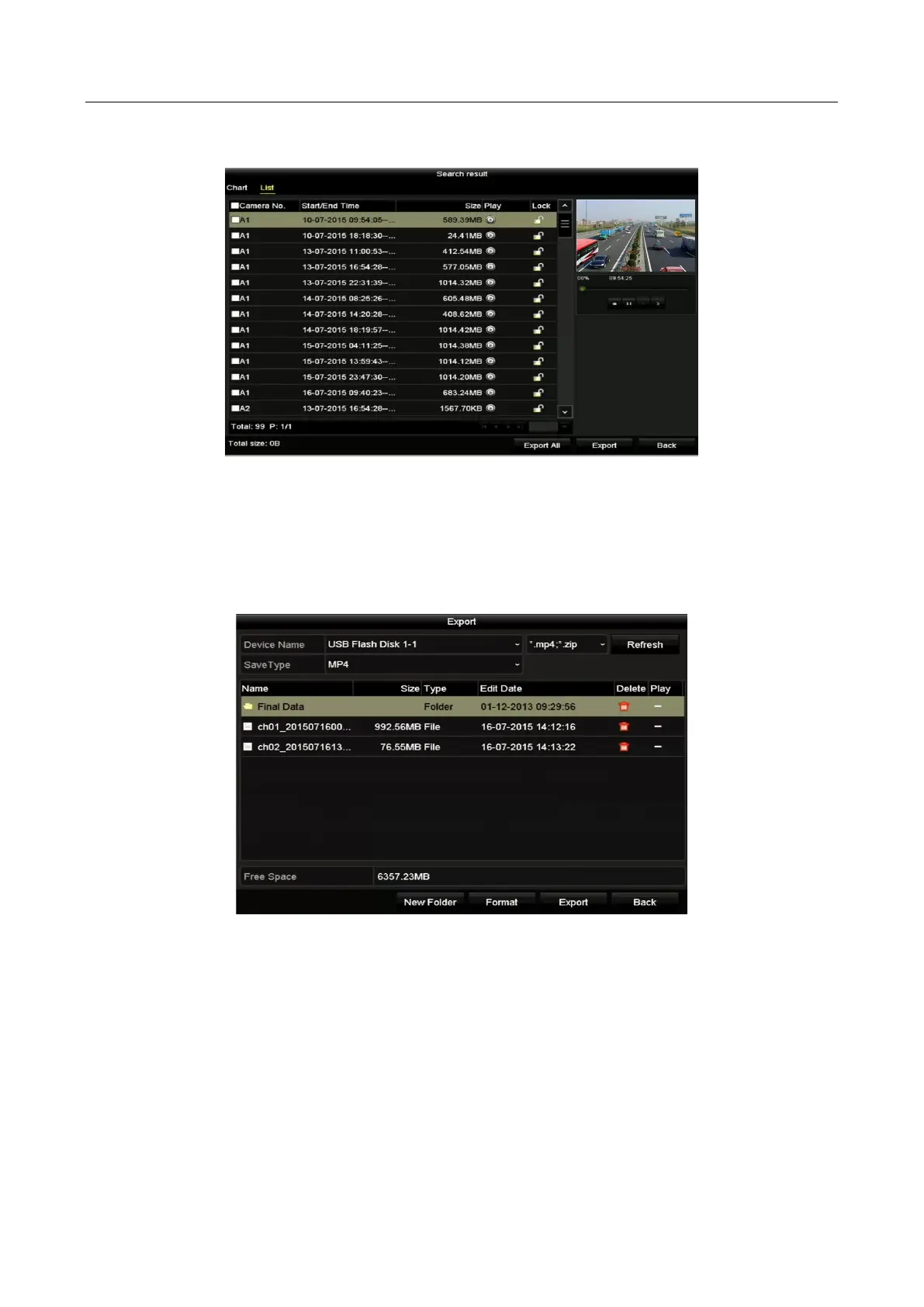

Figure 7-2 Result of Normal Video Search for Backup
Step 5 Select video files from the Chart or List to export, and click the button Export to enter the
Export interface.
You can also click Export All to select all the video files for backup and enter the Export
interface.
Figure 7-3 Export by Normal Video Search using USB Flash Drive
Step 6 Select the backup device from the drop-down list and you can also select the file format to
filter the files existing in the backup device.
Step 7 Select the saving type.
Step 8 Click the button Export on the Export interface to start the backup process.
1) On the pop-up message box, click the radio button to export the video files, log or the
player to the backup device.

HIKVISION DS-7208HQHI-K2/P Specifications

General

HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Number of HDDs supported	2
Power consumption (typical)	60 W
Voltage	12 V
Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
BNC input ports	1
Video input channels	8 channels
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	17480 g
Dimensions (WxDxH)	380 x 320 x 48 mm
