Digital Video Recorder User Manual
131
Step 1 Go to Menu > Configuration > Exceptions.

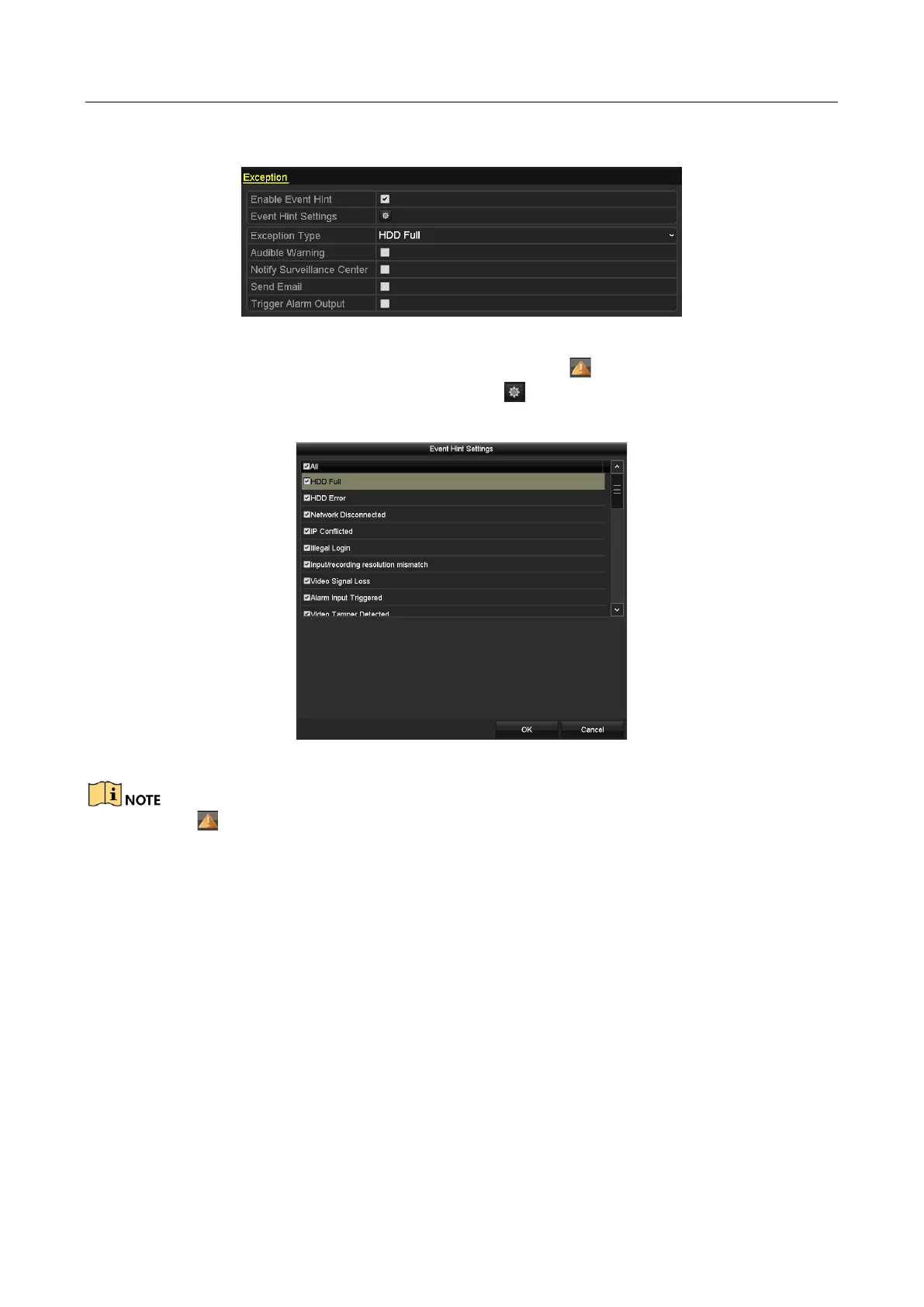

Figure 8-16 Exception Settings Interface
Step 2 Check the checkbox of Enable Event Hint to display the (Event/Exception icon) when
an exceptional event occurs. And click the icon to select the detailed event hint for
display.
Figure 8-17 Event Hint Settings
Click the icon appears in the live view interface, and you can view the detailed information of
the exceptional event. Click the button Set, and then you can select the detailed event hint for
display.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7208HQHI-K2/P and is the answer not in the manual?

HIKVISION DS-7208HQHI-K2/P Specifications

General IconGeneral
HDD interfaceSerial ATA
Maximum HDD capacity6000 GB
Number of HDDs supported2
Power consumption (typical)60 W
Voltage12 V
Product colorBlack
Audio output channels1.0 channels
Video compression formatsH.264, H.264+, H.265, H.265+
Analog signal format systemNTSC, PAL
BNC input ports1
Video input channels8 channels
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LANYes
Ethernet interface typeFast Ethernet
Supported network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Weight17480 g
Dimensions (WxDxH)380 x 320 x 48 mm
