Digital Video Recorder User Manual

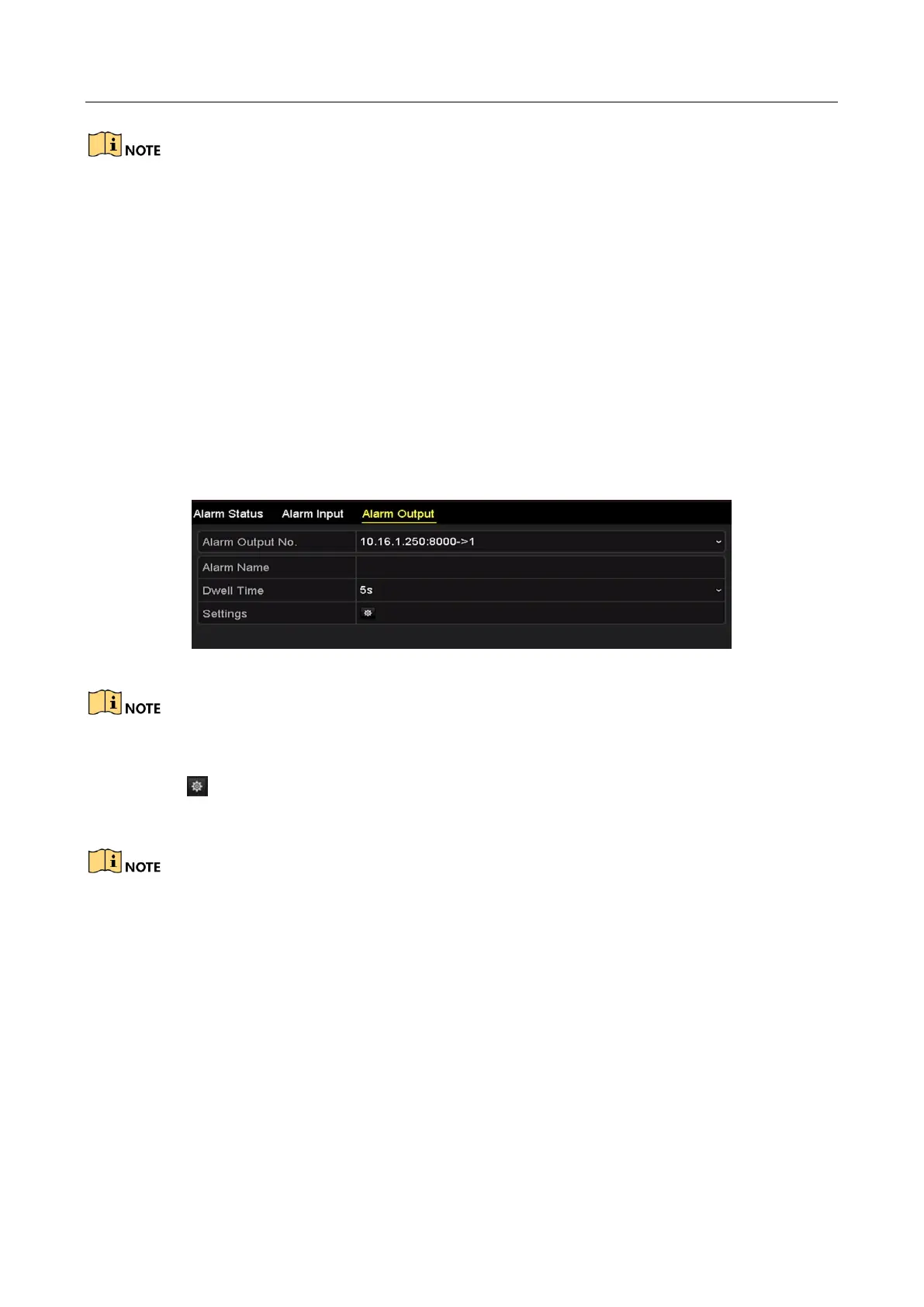

133
The alarm signal will be transmitted automatically at detection mode when remote alarm host is
configured. Please refer to Chapter 12.2.6 Configuring More Settings for details of alarm host
configuration.
Send Email
Send an email with alarm information to a user or users when an alarm is detected.
Please refer to Chapter 12.2.8 Configuring Email for details of Email configuration.
Trigger Alarm Output
Trigger an alarm output when an alarm is triggered.
Step 1 Go to Menu > Configuration > Alarm > Alarm Output.
Step 2 Select an alarm output and set alarm name and dwell time.
Figure 8-19 Alarm Output Settings Interface
If Manually Clear is selected in the drop-down list of Dwell Time, you can clear it only by going to
Menu > Manual > Alarm.
Step 3 Click button to set the arming schedule of alarm output.
Choose one day of a week and up to 8 time periods can be set within each day.
Time periods shall not be repeated or overlapped.

HIKVISION DS-7208HQHI-K2/P Specifications

General

HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Number of HDDs supported	2
Power consumption (typical)	60 W
Voltage	12 V
Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
BNC input ports	1
Video input channels	8 channels
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	17480 g
Dimensions (WxDxH)	380 x 320 x 48 mm
