HIKVISION DS-7208HQHI-K2/P User Manual

Digital Video Recorder User Manual
196

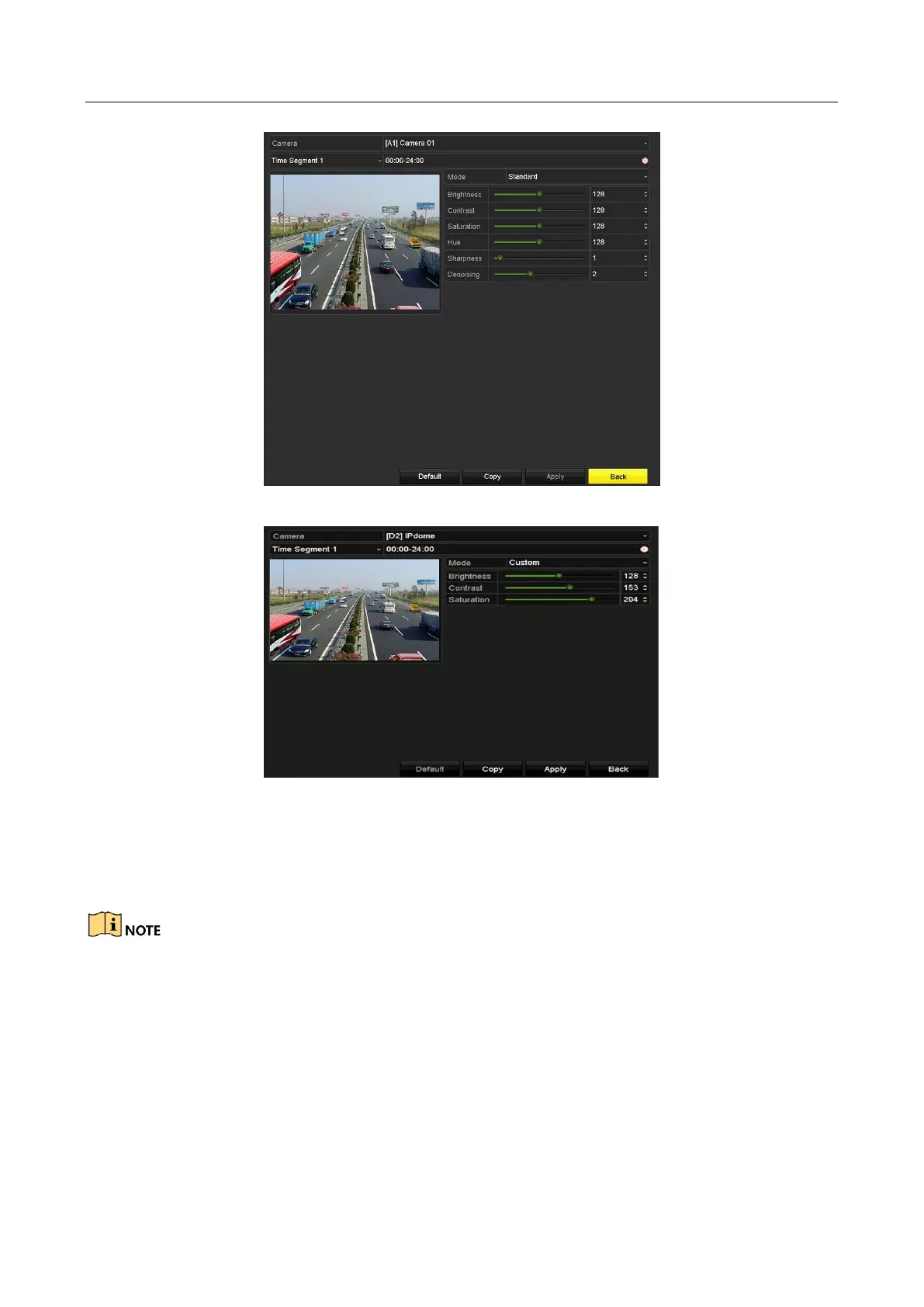

Figure 14-5 Image Settings Interface (Analog Camera)
Figure 14-6 Image Settings Interface (IP Camera)
Step 2 Select the camera to set image parameters.
Step 3 Two periods for different image settings are provided, select the period name in the
drop-down list.
The time periods cannot be overlapped with each other.
Step 4 Select the mode from the drop-down list of Mode, there are four modes selectable for the
analog cameras: Standard, Indoor, Dim Light and Outdoor.
Step 5 Adjust the image parameters according to actual needs. The parameters include Brightness,
Contrast, Saturation, Hue, Sharpness and Denoising for the analog cameras and Brightness,
Contrast and Saturation for the IP cameras. You can also click Restore to set the
parameters to the default settings.

HIKVISION DS-7208HQHI-K2/P Specifications

General

HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Number of HDDs supported	2
Power consumption (typical)	60 W
Voltage	12 V
Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
BNC input ports	1
Video input channels	8 channels
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	17480 g
Dimensions (WxDxH)	380 x 320 x 48 mm
