Digital Video Recorder User Manual
66

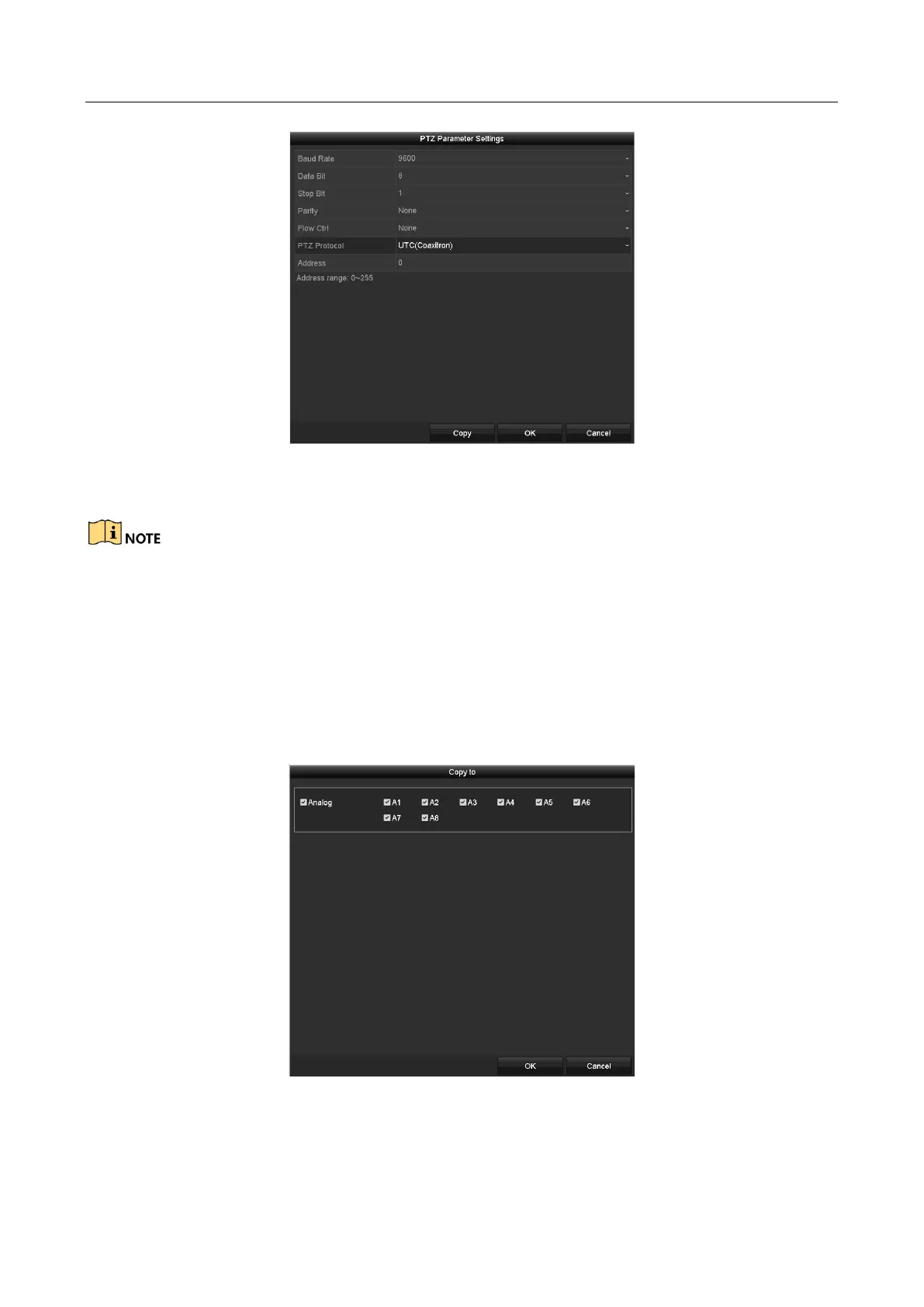

Figure 4-2 PTZ-General
Step 4 Select the parameters of the PTZ camera from the drop-down list.

All the parameters should be exactly the same as the PTZ camera parameters.

For the Coaxitron camera/dome connected, you can select the PTZ protocol to UTC
(Coaxitron). Make sure the protocol selected here is supported by the connected
camera/dome.

When the Coaxitron protocol is selected, all the other parameters like the baud rate, data
bit, stop bit, parity and flow control are not configurable.
Step 5 (Optional) Click Copy button to copy the settings to the other channels. Select the channels
you want to copy to and click OK to return to the PTZ Parameters Settings interface.
Figure 4-3 Copy to Other Channels
Step 6 Click OK to save the settings.

HIKVISION DS-7208HQHI-K2/P Specifications

General

HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Number of HDDs supported	2
Power consumption (typical)	60 W
Voltage	12 V
Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
BNC input ports	1
Video input channels	8 channels
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	17480 g
Dimensions (WxDxH)	380 x 320 x 48 mm
