HIKVISION DS-7208HQHI-K2/P User Manual

Digital Video Recorder User Manual
97

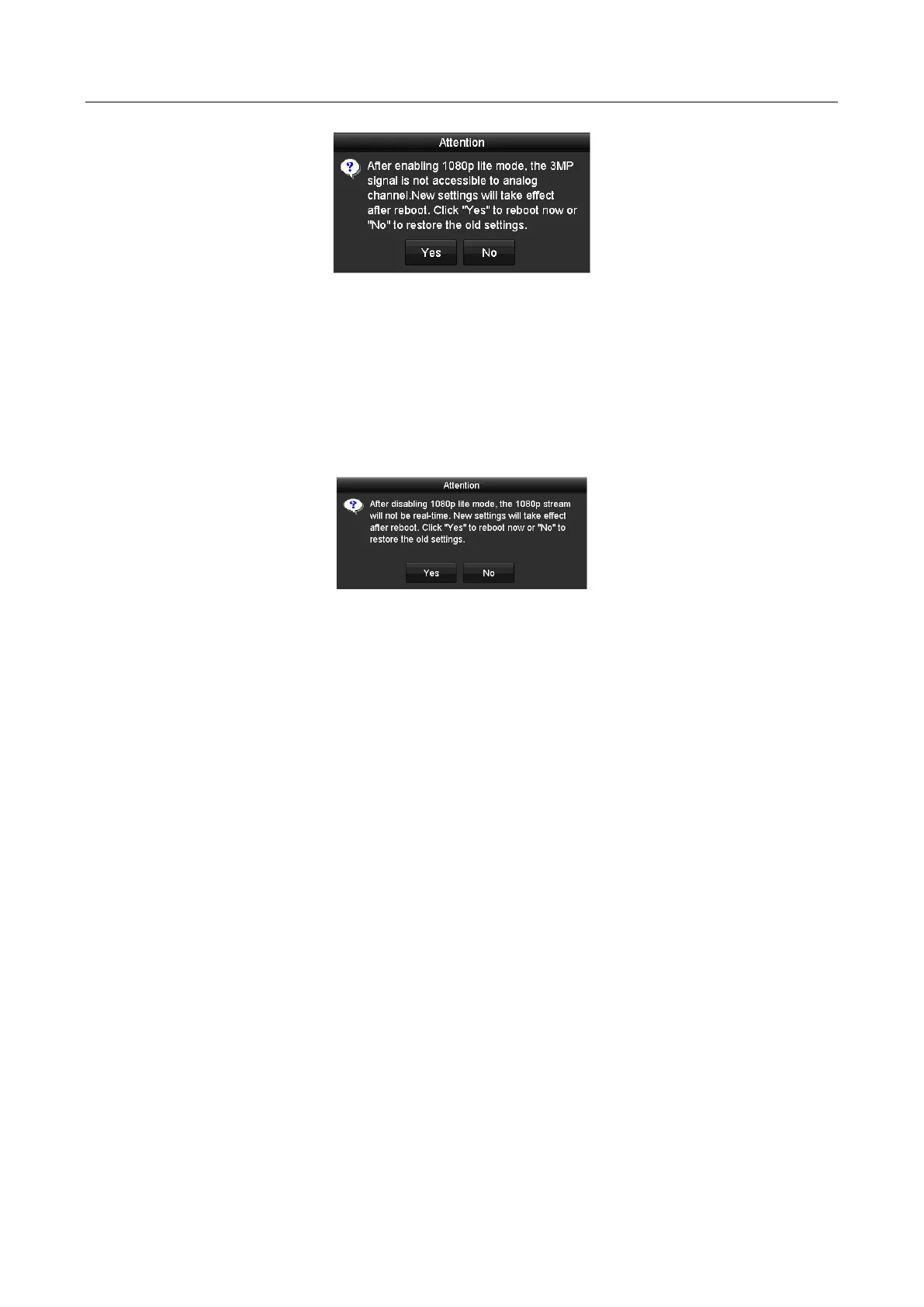

Figure 5-38 Attention
Step 3 Click Yes to reboot the device to have new settings taken effect.
Task 2: Disabling the 1080P Lite Mode
Step 1 Go to Menu > Record > Advanced.
Step 2 Uncheck the checkbox of 1080P Lite Mode and click Apply. The following attention box
pops up.
Figure 5-39 Attention
Step 3 Click Yes to reboot the device to activate the new settings or No to restore the old settings.

HIKVISION DS-7208HQHI-K2/P Specifications

General

HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Number of HDDs supported	2
Power consumption (typical)	60 W
Voltage	12 V
Product color	Black
Audio output channels	1.0 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
BNC input ports	1
Video input channels	8 channels
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	17480 g
Dimensions (WxDxH)	380 x 320 x 48 mm
