1 3 S E T U P R E C O R D I N G ( c o n t i n u e d )
Record Quality
• Main Stream

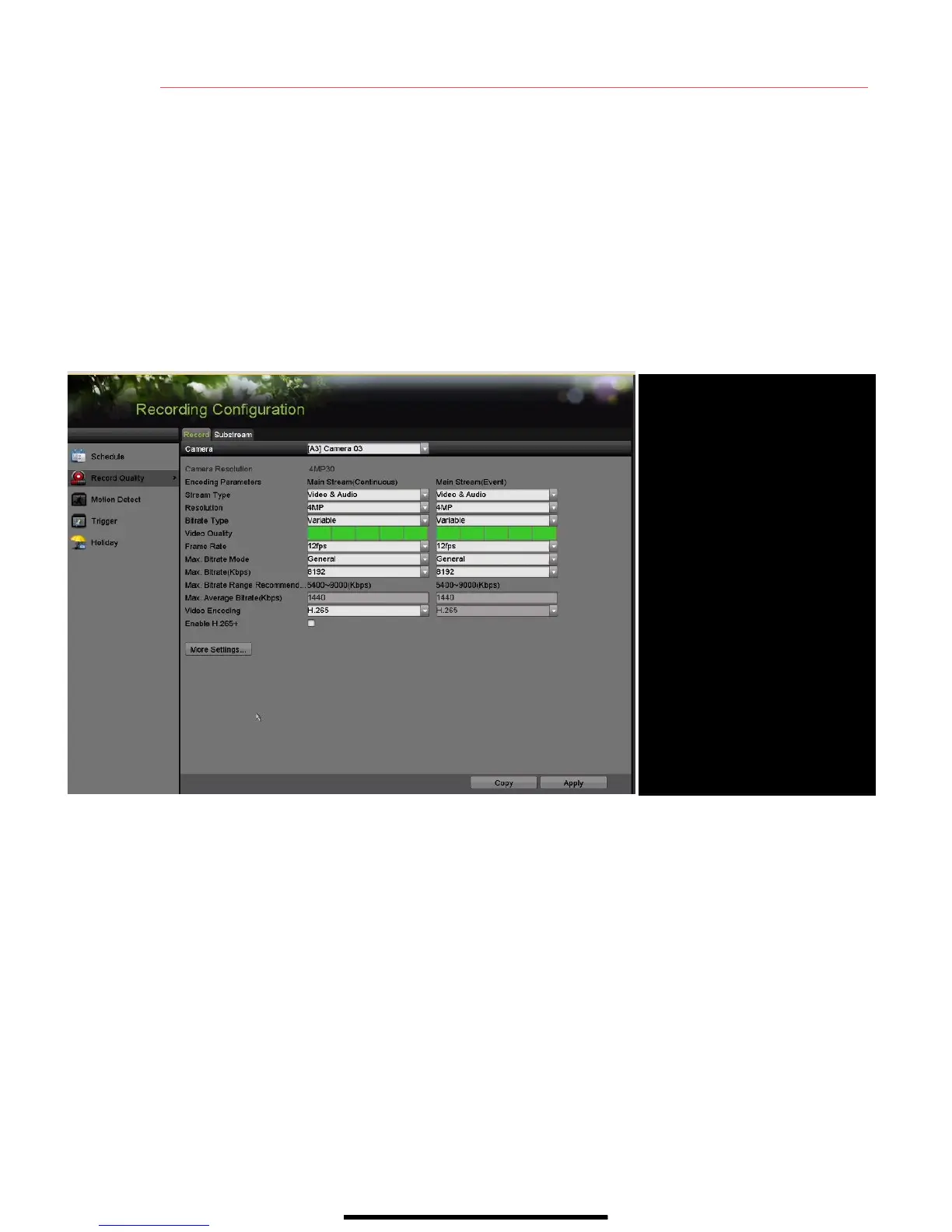

1. Go to RECORDING CONFIGURATION > RECORD QUALITY > MAIN STREAM.
- Stream Type enables/disables audio streaming from the cameras (if the camera does
not have audio capabilities, Stream Type will have only Video option).
- Resolution sets recording resolution.
- Bitrate Type:
> Variable saves HDD space
> Constant provides more stable stream
- Video Quality adjusts clarity (high = four green squares is default). Use highest if HDD
allows. Medium setting is balance between good image and saving HDD space.
- Frame Rate sets recording frame rate (8 fps on continuous and 15 fps on motion by
default). Higher rates require more storage, but allow better slow motion playback.
- Max Bitrate Mode chooses between pre-set and custom values (General is default).
- Max Bitrate (kbps) is chosen bitrate for streaming video. Adjust Max Bitrate to meet or
exceed the rate recommended by the system for the chosen parameters.
- Max Bitrate Recommended is impacted by resolution, quality, and frame rate.
- Record Audio turns on audio recording. Requires external mic or built-in camera mic.
- Video Stream determines which stream is recorded. Leave at default (Main Stream).
• Substream
1. Go to RECORDING CONFIGURATION > RECORD QUALITY > SUBSTREAM to set up
the Sub Stream to stream to mobile devices and display multiple cameras locally.
NOTE: If speed is insufficient, lower frame rate, bitrate, and/or resolution.
Select tab
CAMERA
Select IP camera
EVENT
For event recording only (motion
or alarm)
CONTINUOUS
For live view image and
continuous recording
VIDEO QUALITY
Selectnumber of green squares
to set quality (in example,
sensitivity is set to 5)
VIDEO ENCODING
Select compression scheme
To Next Page
