HIKVISION DS-7208HUHI-F1/N Quick Start Guide

Digital Video Recorder Quick Start Guide
11

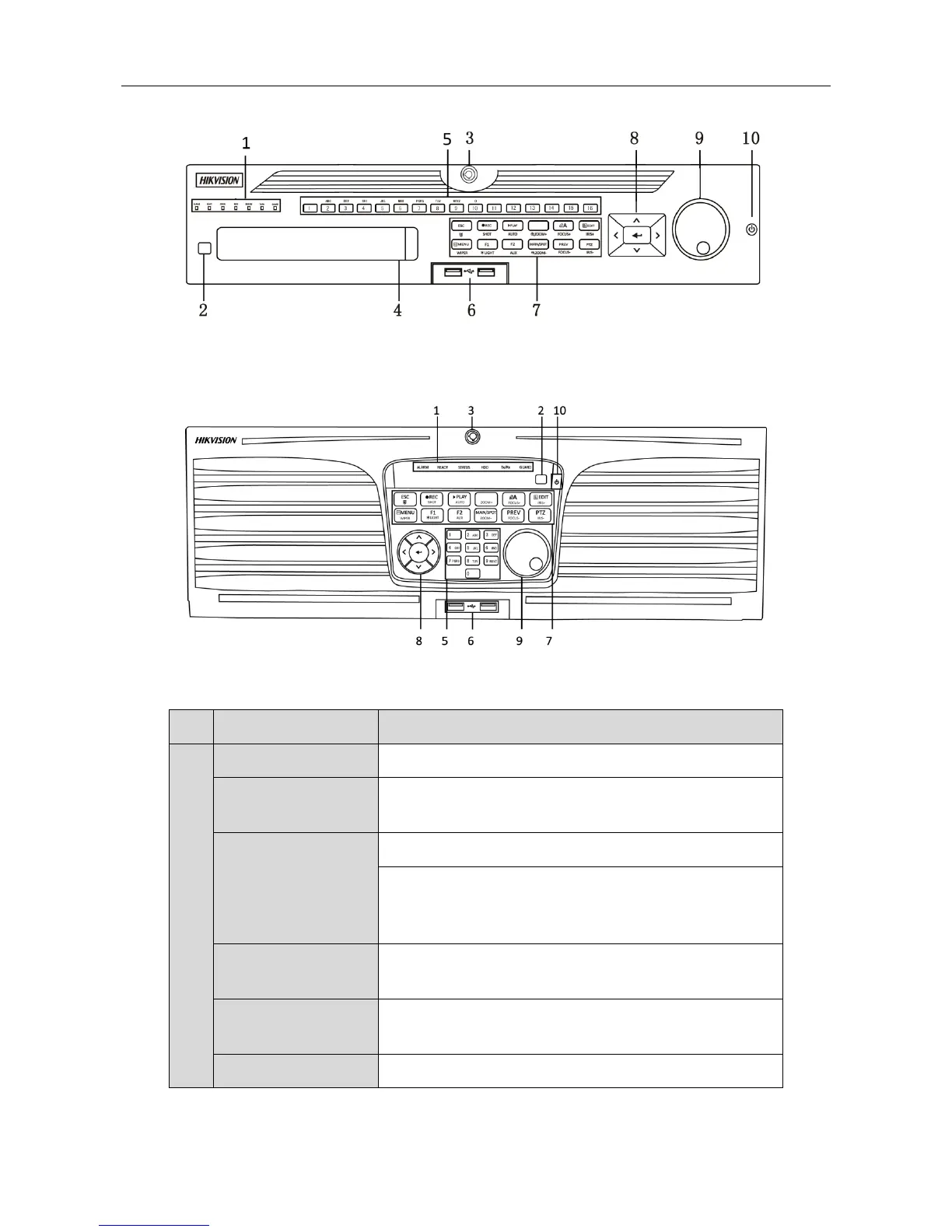

Figure 1-4 Front Panel 4
 Front Panel 5
Figure 1-5 Front Panel 5
Table 1-4 Description of Front Panel 4 and 5
No.
Name
Function Description
1
ALARM
Turns red when a sensor alarm is detected.
READY
Turns green, indicating that the DVR is functioning
properly.
STATUS
Turns blue when device is controlled by an IR remote.
Turns red when controlled by a keyboard and purple
when IR remote and keyboard is used at the same
time.
HDD
Flickers in red when data is being read from or written
to HDD.
MODEM
Flickers in green when network connection is
functioning properly.
Tx/Rx
Turns blue when the device is in armed status; at this

HIKVISION DS-7208HUHI-F1/N Specifications

General

Voltage	12 V
Product color	Black
Rack capacity	1U
Remote viewing	Yes
Channels quantity	8 channels
Audio formats supported	G.711
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	4-ch, RCA
BNC input ports	8
BNC output ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	12V DC
Power consumption (max)	20 W

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
