HIKVISION DS-7208HUHI-F1/N Quick Start Guide

Digital Video Recorder Quick Start Guide
8
Table 1-2 Description of Front Panel 2
No.
Name
Function Description
1
POWER
Turns yellow when the power switch on the rear panel
is turned on.
STATUS
Flickers red when data is being read from or written
to HDD.
Tx/Rx
Flickers yellow when network connection is
functioning properly.
2
IR Receiver
Receiver for IR remote
3
USB Interfaces
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).

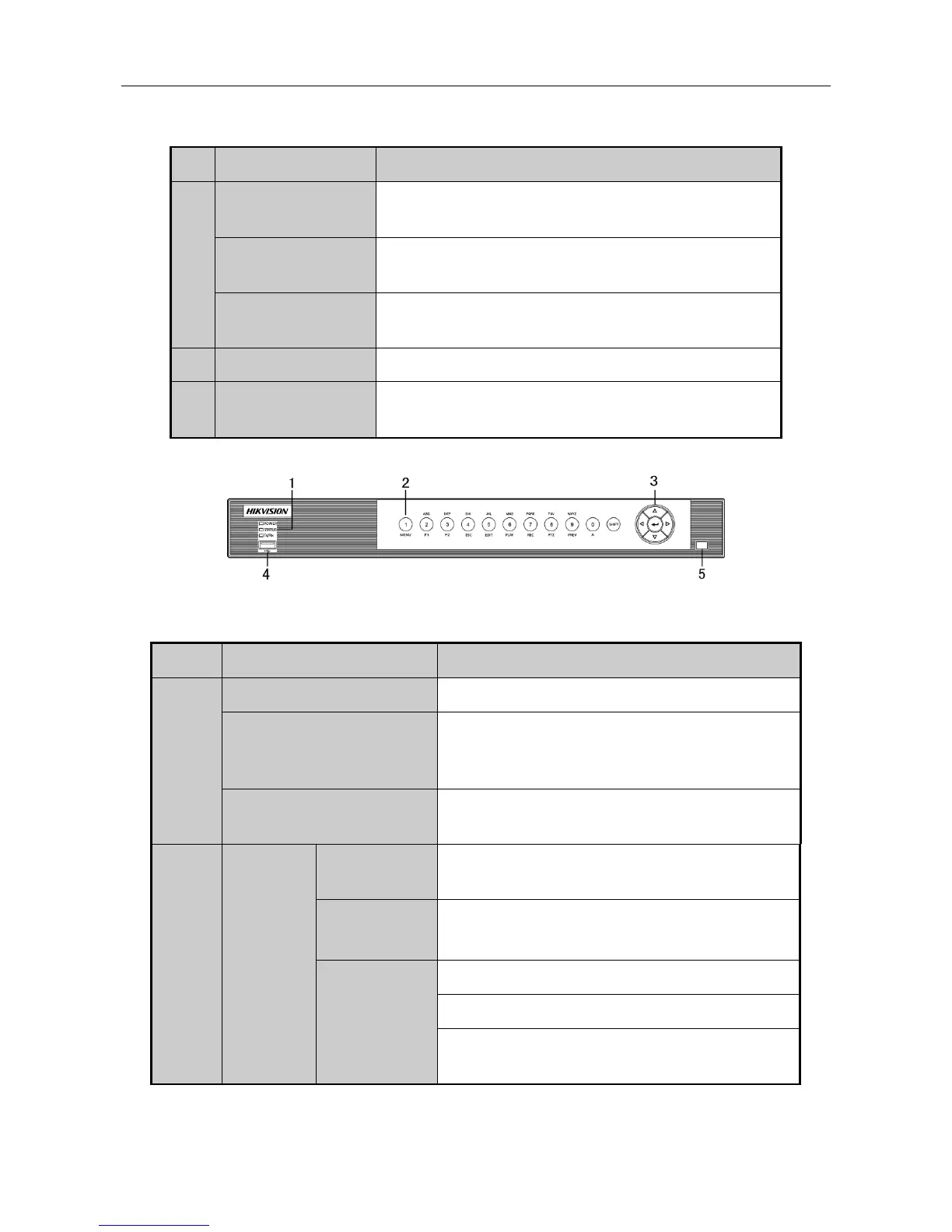

 Front Panel 3
Figure 1-3 Front Panel 3
Table 1-3 Description of Front Panel 3
No.
Name
Function Description
1
POWER
Turns green when the device is running.
STATUS
Flickers red when data is being read from or
written to HDD, and turns green when the SHIFT
function is realized.
Tx/Rx
Flickers green when network connection is
functioning properly.
2
Composite
Keys
SHIFT
Switches between the numeric or letter input
and functions of the composite keys.
1/MENU
Enters numeral “1”;
Accesses the main menu interface.
2/ABC/F1
Enters numeral “2”;
Enters letters “ABC”;
Uses the F1 button to select all items in a list
field;

HIKVISION DS-7208HUHI-F1/N Specifications

General

Voltage	12 V
Product color	Black
Rack capacity	1U
Remote viewing	Yes
Channels quantity	8 channels
Audio formats supported	G.711
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	4-ch, RCA
BNC input ports	8
BNC output ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power requirements	12V DC
Power consumption (max)	20 W

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	315 x 242 x 45 mm
