HIKVISION DS-7208HVI-S & 7216HVI-S User‟s Manual
51
.

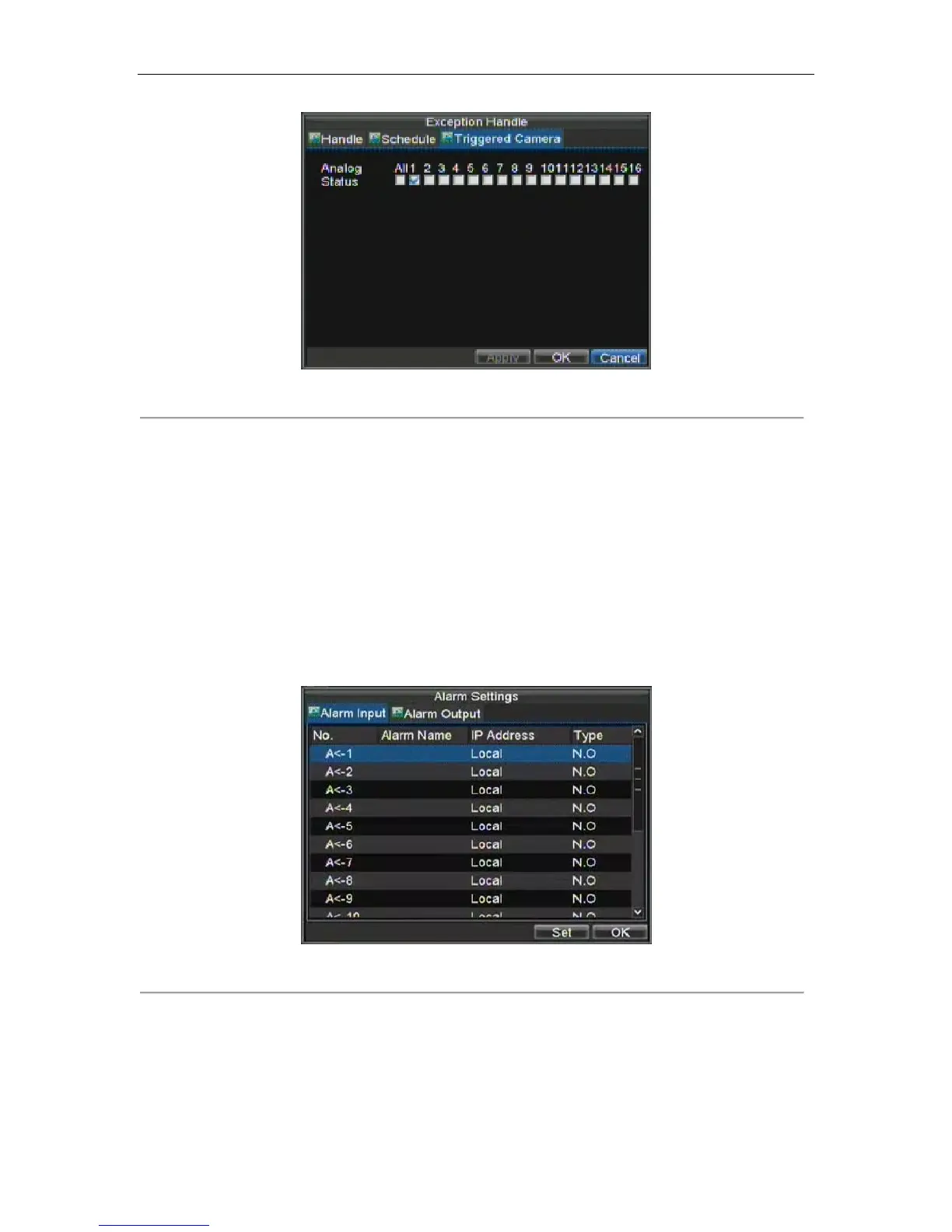

Figure 4. Exception Handle Menu
9. Select cameras to trigger for recording when motion is detected by checking the checkboxes under the
desired cameras.
10. Click OK to complete motion settings for the selected camera.
You may now add a schedule to start recording when motion is detected (See Scheduling a Recording).
Setting up Sensor Alarms
Recordings can also be triggered from an external sensor alarm device. To setup sensor alarms:
1. Enter into the Alarm Management menu, shown in Figure 5.
Figure 5. Alarm Management Menu
2. Select the Alarm Input # and click the Set button. This will open the Alarm Input Setting menu,
shown in Figure 6.
To Next Page
