HIKVISION DS-76 NI-I2/P Series Quick Start Guide

Network Video Recorder Quick Start Guide
18

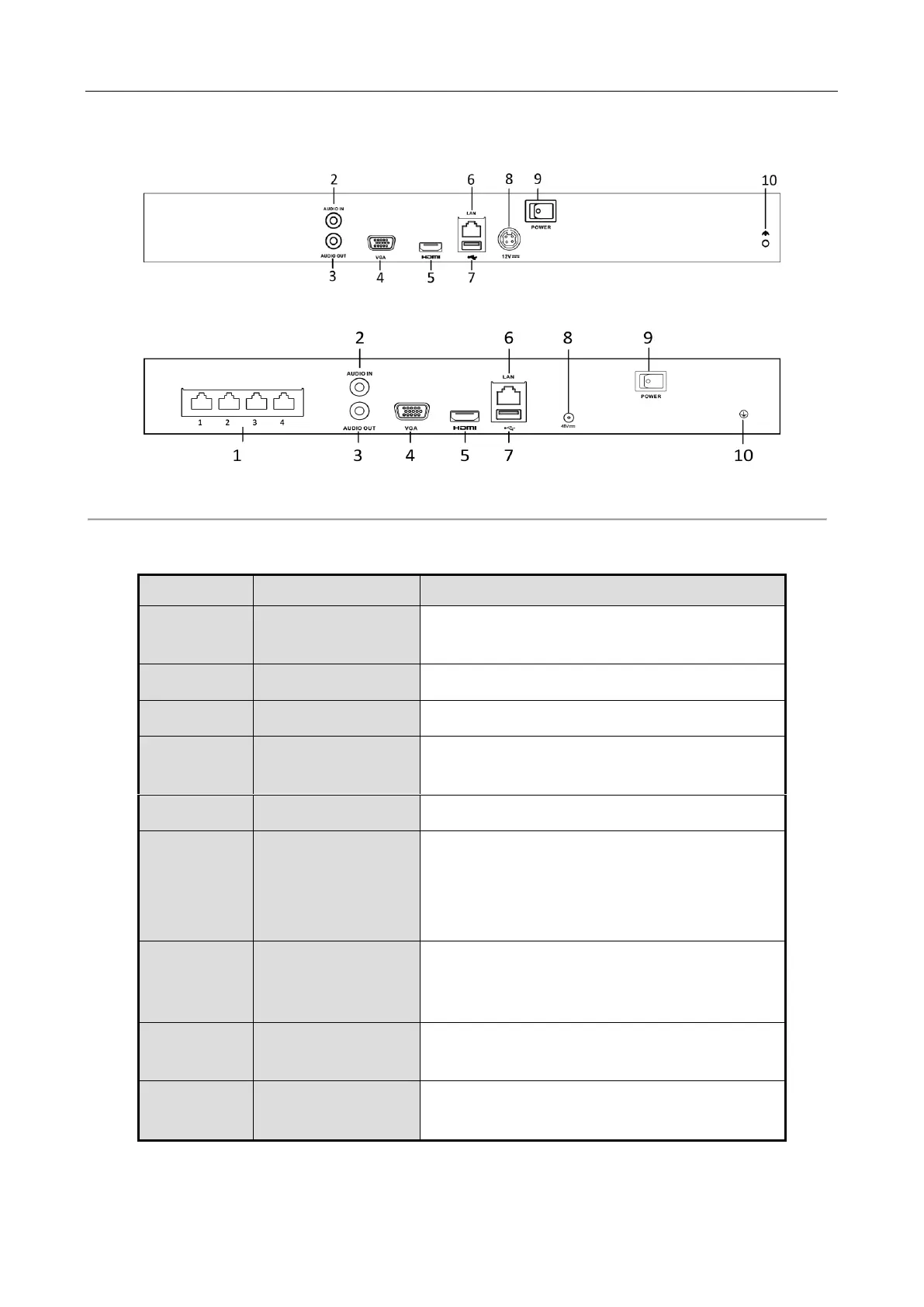

DS-7600NI-K1 and DS-7600NI-K1/4P
Figure 1-12 DS-7600NI-K1 Series
Figure 1-13 DS-7604NI-K1/4P Series
Table 1-6 Panel Description
Table 1-7 No.
Table 1-8 Name
Table 1-9 Description
1
Network Interfaces
with PoE function
Network interfaces for the cameras and to
provide power over Ethernet.
2
Audio In
RCA connector for audio input.
3
Audio Out
RCA connector for audio output.
4
VGA Interface
DB9 connector for VGA output. Display local
video output and menu.
5
HDMI Interface
HDMI video output connector.
6
LAN Network
Interface
1 10/100/1000 Mbps self-adaptive Ethernet
interface for DS-7600NI-K1;
1 100 Mbps full-duplex Ethernet interface for
DS-7600NI-K1/4P.
7
USB Interface
Universal Serial Bus (USB 3.0) ports for
additional devices such as USB mouse and
USB Hard Disk Drive (HDD).
9
Power Supply
12VDC power supply for DS-7600NI-K1 and
48 VDC power supply for DS-7600NI-K1/4P.
10
Ground
Ground (needs to be connected when NVR
starts up).
