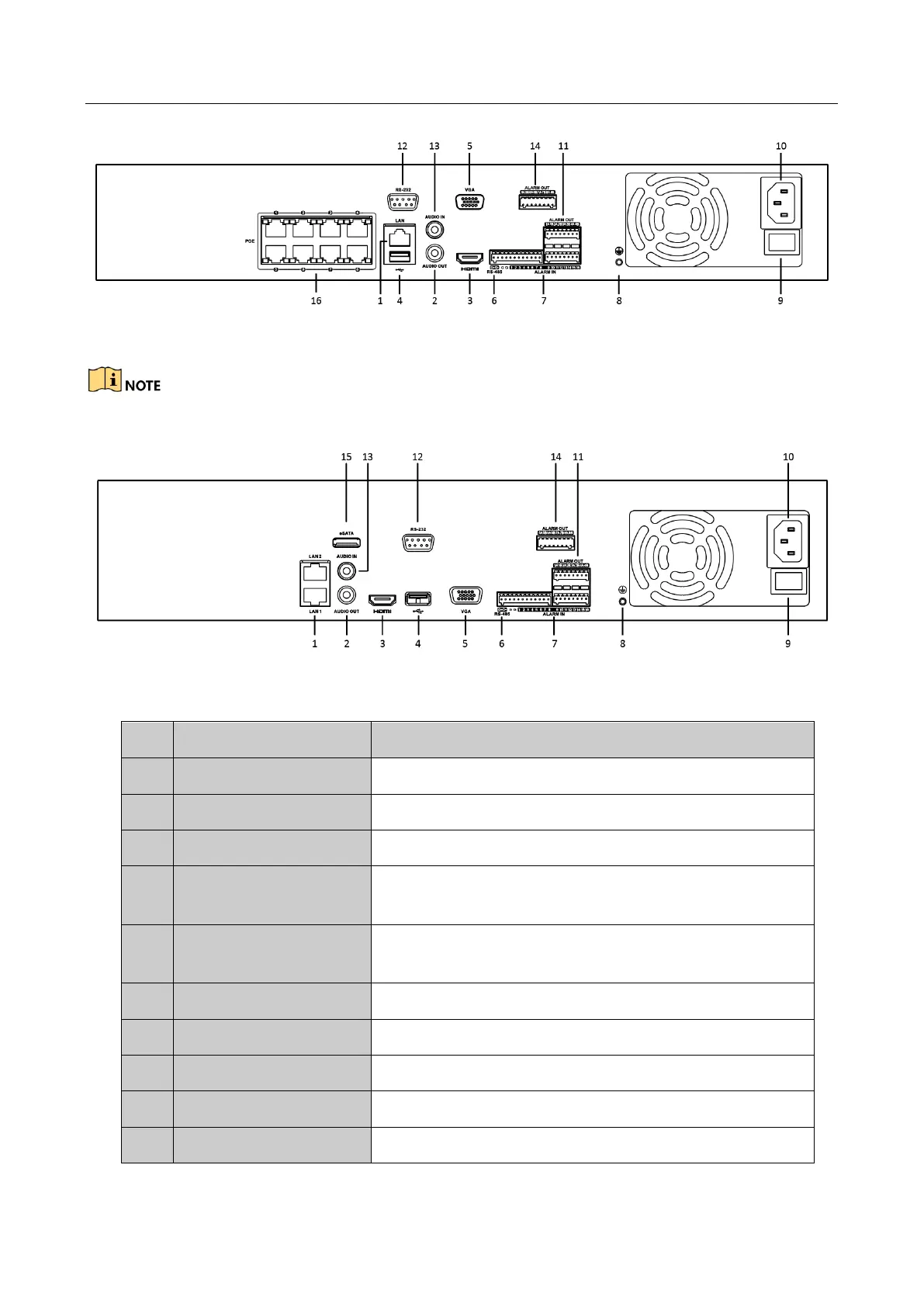

Figure 1-11 DS-7700NI-Q4/P Series
The DS-7716NI-Q4/16P and DS-7732NI-Q4/16P provides 16 network Interfaces with PoE function.
Figure 1-12 DS-8600NI-Q8 Series
Table 1-9 Panel Description
No.
Item
Description
1
LAN Network Interface
2, 10 /100 /1000 Mbps self-adaptive Ethernet interface
2
Audio Out
RCA connector for audio output.
3
HDMI Interface
HDMI video output connector.
4
USB Interface
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
5
VGA Interface
DB9 connector for VGA output. Display local video
output and menu.
6
RS-485 Interface
Half-duplex connector for RS-485 devices.
7
ALARM IN
Connector for alarm input.
8
Ground
Ground (needs to be connected when NVR starts up).
9
Power Switch
Switch for turning on/off the device.
10
Power Supply
100~240 VAC power supply.
