HIKVISION DS-7608NI-K2/8P Quick Start Guide

Network Video Recorder Quick Start Guide
18

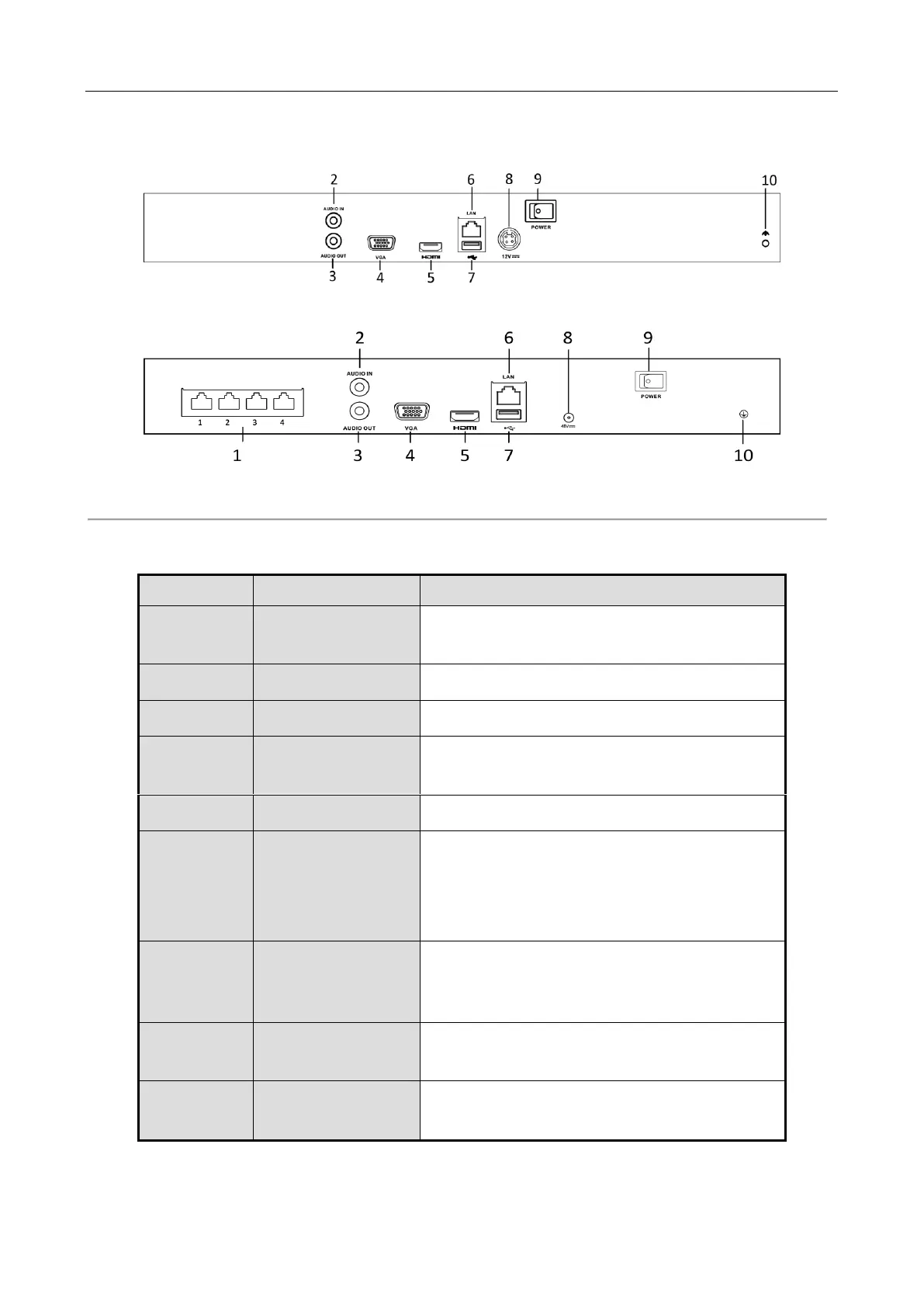

DS-7600NI-K1 and DS-7600NI-K1/4P
Figure 1-12 DS-7600NI-K1 Series
Figure 1-13 DS-7604NI-K1/4P Series
Table 1-6 Panel Description
Table 1-7 No.
Table 1-8 Name
Table 1-9 Description
1
Network Interfaces
with PoE function
Network interfaces for the cameras and to
provide power over Ethernet.
2
Audio In
RCA connector for audio input.
3
Audio Out
RCA connector for audio output.
4
VGA Interface
DB9 connector for VGA output. Display local
video output and menu.
5
HDMI Interface
HDMI video output connector.
6
LAN Network
Interface
1 10/100/1000 Mbps self-adaptive Ethernet
interface for DS-7600NI-K1;
1 100 Mbps full-duplex Ethernet interface for
DS-7600NI-K1/4P.
7
USB Interface
Universal Serial Bus (USB 3.0) ports for
additional devices such as USB mouse and
USB Hard Disk Drive (HDD).
9
Power Supply
12VDC power supply for DS-7600NI-K1 and
48 VDC power supply for DS-7600NI-K1/4P.
10
Ground
Ground (needs to be connected when NVR
starts up).

HIKVISION DS-7608NI-K2/8P Specifications

General

Input bandwidth	80 Mbit/s
Output bandwidth	160 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	4
Video input channels	8 channels
Alarm output channels	1
Supported resolutions	3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
HDMI output	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Power over Ethernet (PoE) ports quantity	8
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Number of HDDs installed	0
Number of HDDs supported	2
AC input voltage	100 - 240 V
Power consumption (typical)	15 W
Total Power over Ethernet (PoE) budget	120 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	1U
Wi-Fi	No

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
