13.2 Rebuilding Array
Purpose:
The working status of array includes Functional, Degraded and Offline. By viewing the array status,
you can take immediate and proper maintenance for the disks so as to ensure the high security
and reliability of the data stored in the disk array.
When there is no disk loss in the array, the working status of array will change to Functional; when
the number of lost disks has exceeded the limit, the working status of array will change to Offline;
in other conditions, the working status is Degraded.
When the virtual disk is in Degraded status, you can restore it to Functional by array rebuilding.
Before you start:
Please make sure the hot spare disk is configured.
Step 1 Enter the Physical Disk Settings interface to configure the hot spare disk.

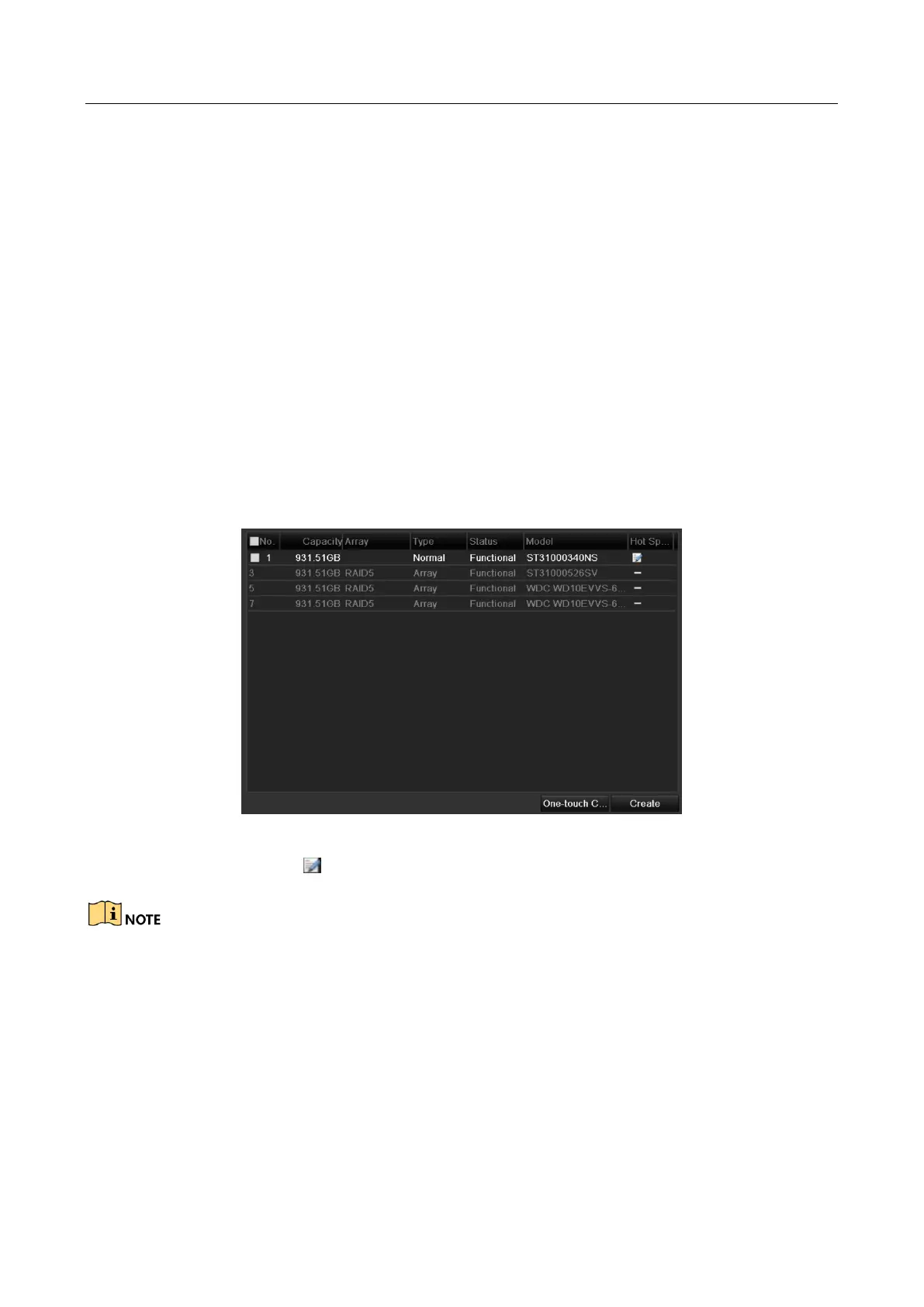

Figure 13-10 Physical Disk Settings Interface
Step 2 Select a disk and click to set it as the hot spare disk.
Only global hot spare mode is supported.
13.2.2 Automatically Rebuilding Array
Purpose:
When the virtual disk is in Degraded status, the device can start rebuilding the array automatically
with the hot spare disk to ensure the high security and reliability of the data.
Enter the Array Settings interface( Menu > HDD > RAID > Array). The status of the array is Degraded.
Since the hot spare disk is configured, the system will automatically start rebuilding using it.

HIKVISION DS-7616NI-K2/16P Specifications

General

Input bandwidth	160 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	4
Video input channels	16 channels
Alarm output channels	1
Supported resolutions	3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
On/off switch	Yes
Product color	Black
Rack capacity	1U
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	17
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Power over Ethernet (PoE) ports quantity	16
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Number of HDDs installed	0
Number of HDDs supported	2
AC input voltage	100 - 240 V
Power consumption (typical)	15 W
Total Power over Ethernet (PoE) budget	200 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Wi-Fi	No

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	1000 g
