HIKVISION DS-7616NI-Q2/16P Quick Start Guide

Network Video Recorder Quick Start Guide
22
You can select one of the following three options to add the IP camera.
 OPTION 1:
Step 1 Click to select an idle window in the live view mode.
Step 2 Click the icon in the center of the window to pop up the Add IP Camera interface.

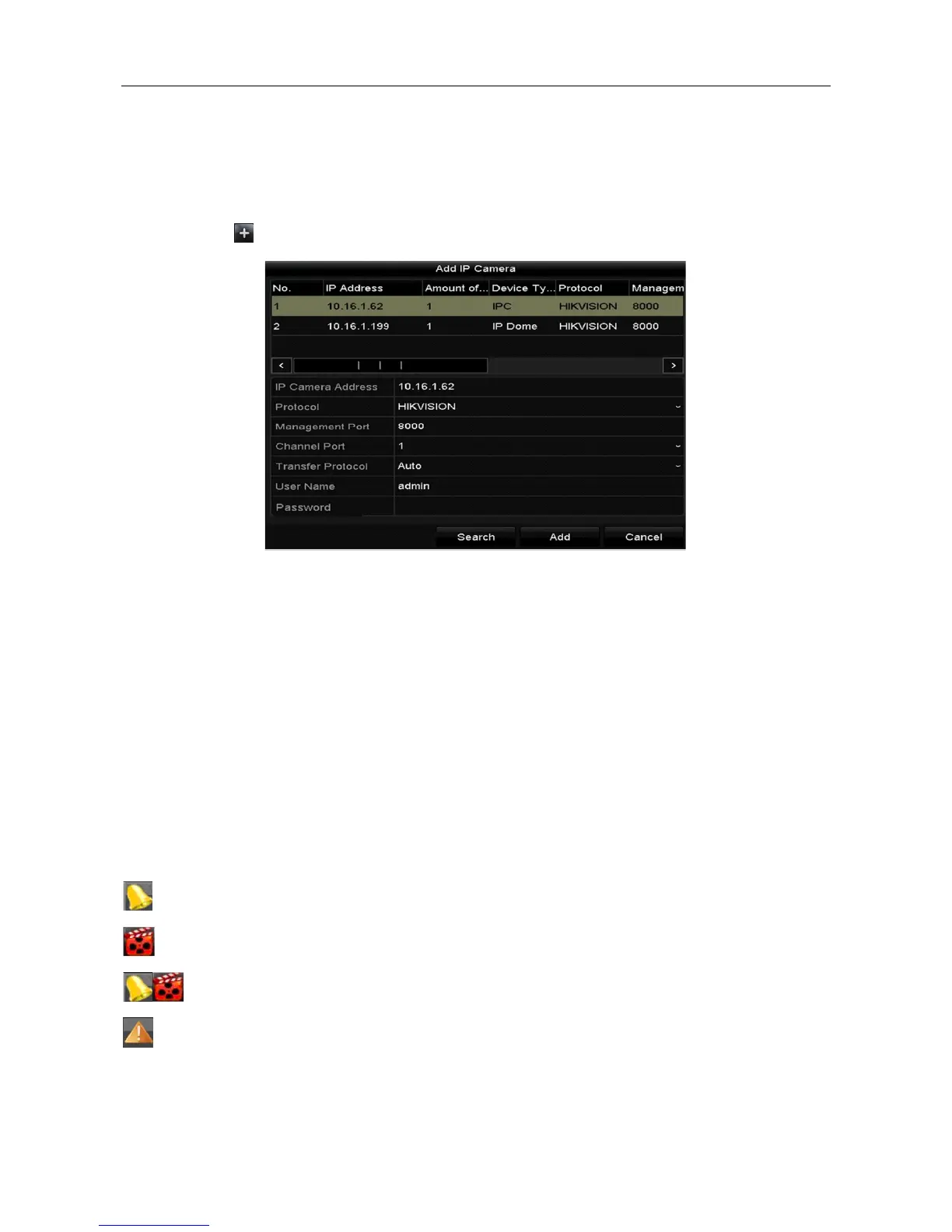

Figure 3-10 Add IP Camera
Step 3 Select the detected IP camera and click the Add button to add it directly, and you can click
the Search button to refresh the online IP camera manually.
Or you can choose to custom add the IP camera by editing the parameters in the
corresponding text field and then click the Add button to add it.
3.9 Live View
Icons are provided on screen in Live View mode to indicate camera status. These icons include:
Live View Icons
In the live view mode, there are icons at the upper-right corner of the screen for each channel,
showing the status of the record and alarm in the channel for quick reference.
Alarm (video loss, tampering, motion detection, VCA or sensor alarm)
Record (manual record, continuous record, motion detection, VCA or alarm triggered record)
Alarm and Record
Event/Exception (event and exception information, appears at the lower-left corner of the
screen.)

HIKVISION DS-7616NI-Q2/16P Specifications

General

DHCP client	Yes
Input bandwidth	160 Mbit/s
Output bandwidth	80 Mbit/s
Maximum resolution	3840 x 2160 pixels
Video input channels	16 channels
Alarm output channels	1
Supported resolutions	3840 × 2160, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video recording modes	720p, 1080p
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Product color	Black
Rack capacity	1U
AC input voltage	100 - 240 V
Power consumption (max)	280 W
Total Power over Ethernet (PoE) budget	150 W
Wi-Fi	No
HDD interface	Serial ATA
Maximum storage capacity	16 TB
Number of HDDs supported	2
Total installed storage capacity	1000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
