User Manual of Network Video Recorder
140
You can click the checkbox of Save VCA Picture to save the captured pictures of VCA detection.
3. Select the VCA detection type to Vehicle Detection.
4. Check the Enable checkbox to enable this function.

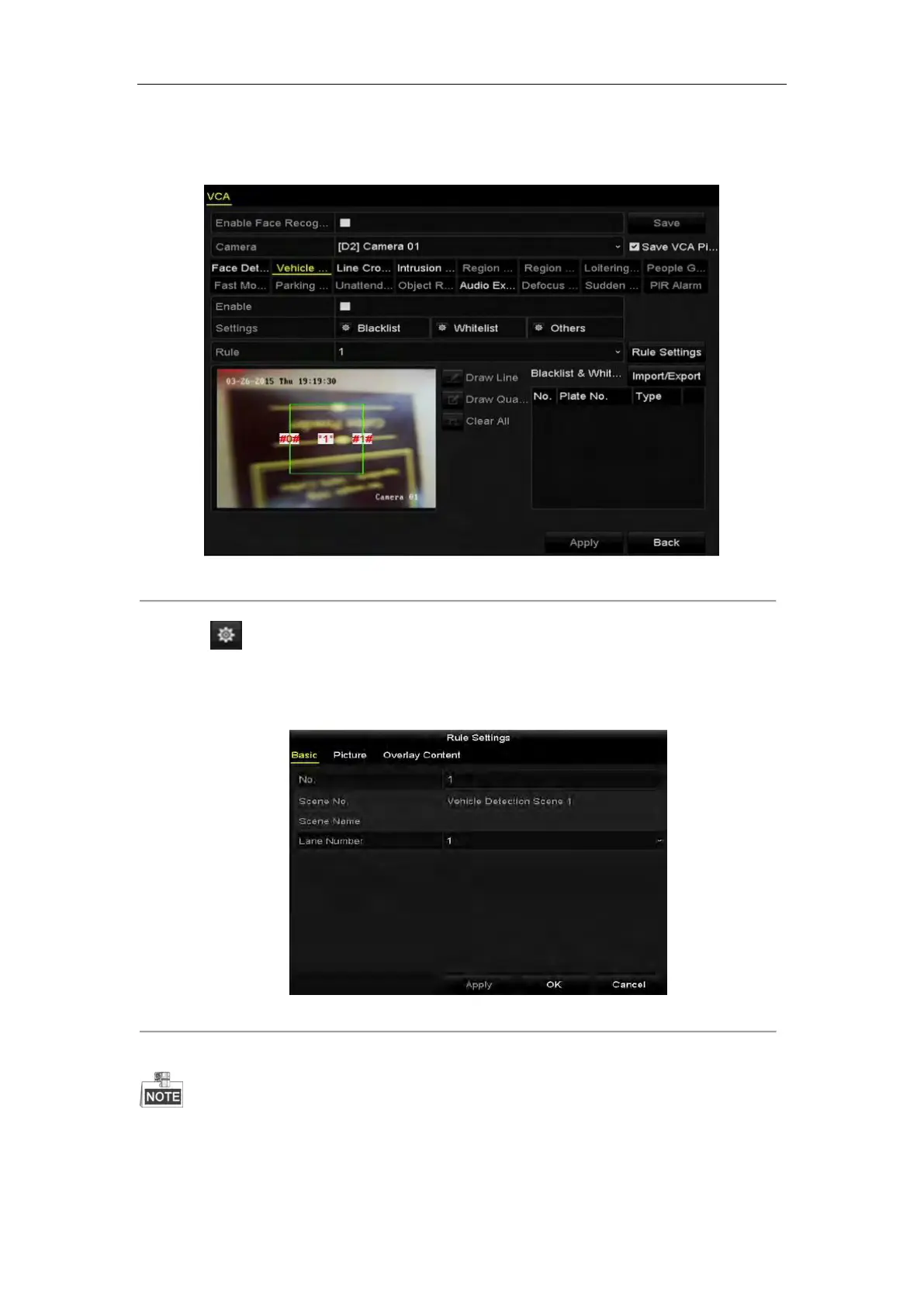

Figure 9. 4 Set Vehicle Detection
5. Click to configure the trigger channel, arming schedule and linkage actions for the Blacklist,
Whitelist and Others.
6. Click the Rule Settings to enter the rule settings interface. Configure the lane, upload picture and overlay
content settings. Up to 4 lanes are selectable.
Figure 9. 5 Rule Settings
7. Click Save to save the settings.
Please refer to the User Manual of Network Camera for the detailed instructions for the vehicle detection.
