User Manual of DS-9600/8600/7700/7600 Series NVR
41
4. Select the custom protocol and enter the IP address, user name and password of the camera.
5. Click the Add button to add the network camera.
2.3.3 Editing IP cameras connected to the PoE interfaces
(Only for DS-7600/7700NI-SP series NVR)
The PoE interfaces enables the NVR system to pass electrical power safely, along with data, on Ethernet cabling to
the connected network cameras.
The DS-7600/7700NI-SP series NVR provides 8 PoE interfaces which can connect to 8 network cameras directly;
and if you disable the PoE interface, you can also connect to the online network cameras. And the PoE interface
supports the Plug-and-Play function.
Example:
As for 7608/7708NI-SP NVR, when you want to connect 2 online cameras and connect 6 network cameras via
PoE interfaces, you must disable 2 PoE interfaces in the Edit IP Camera menu.
To add Cameras for NVR supporting PoE function:
Before you start:
Connect the network cameras via the PoE interfaces.
Steps:
1. Enter the Camera Management interface.
Main menu> Camera> Camera
You can see the connected cameras are listed.

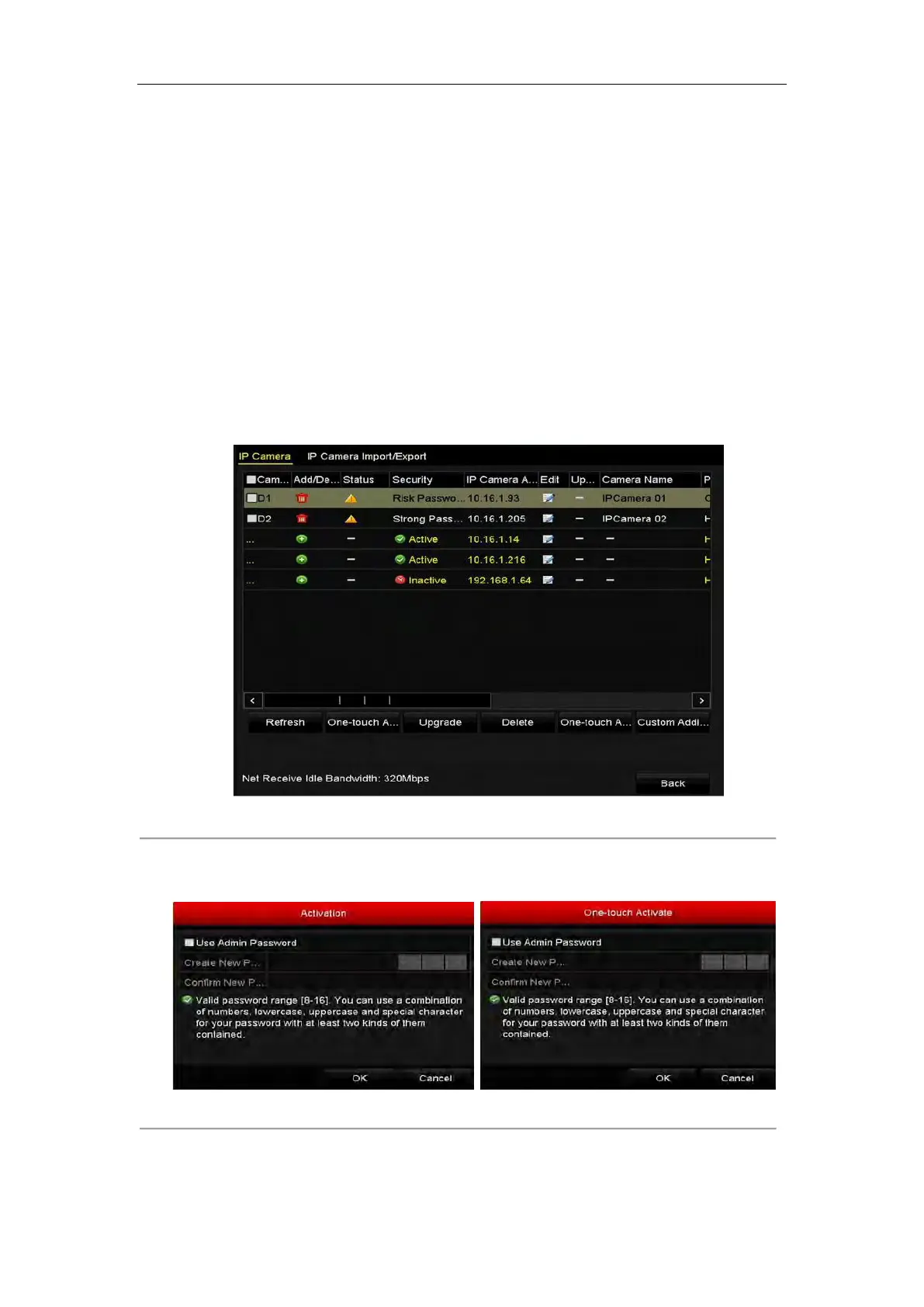

Figure 2. 19 List of Connected Cameras
Note: The cameras connecting to the PoE interface cannot be deleted in this menu.
2. Click the Edit button, and select the Adding Method in the drop-down list.
• Plug-and-Play: It means that the camera is connected to the PoE interface, so in this case, the
parameters of the camera can’t be edited. The IP address of the camera can only be edited in the
Network Configuration interface, see Chapter 9.1 Configuring General Settings for detailed
