User Manual of Network Video Recorder
58

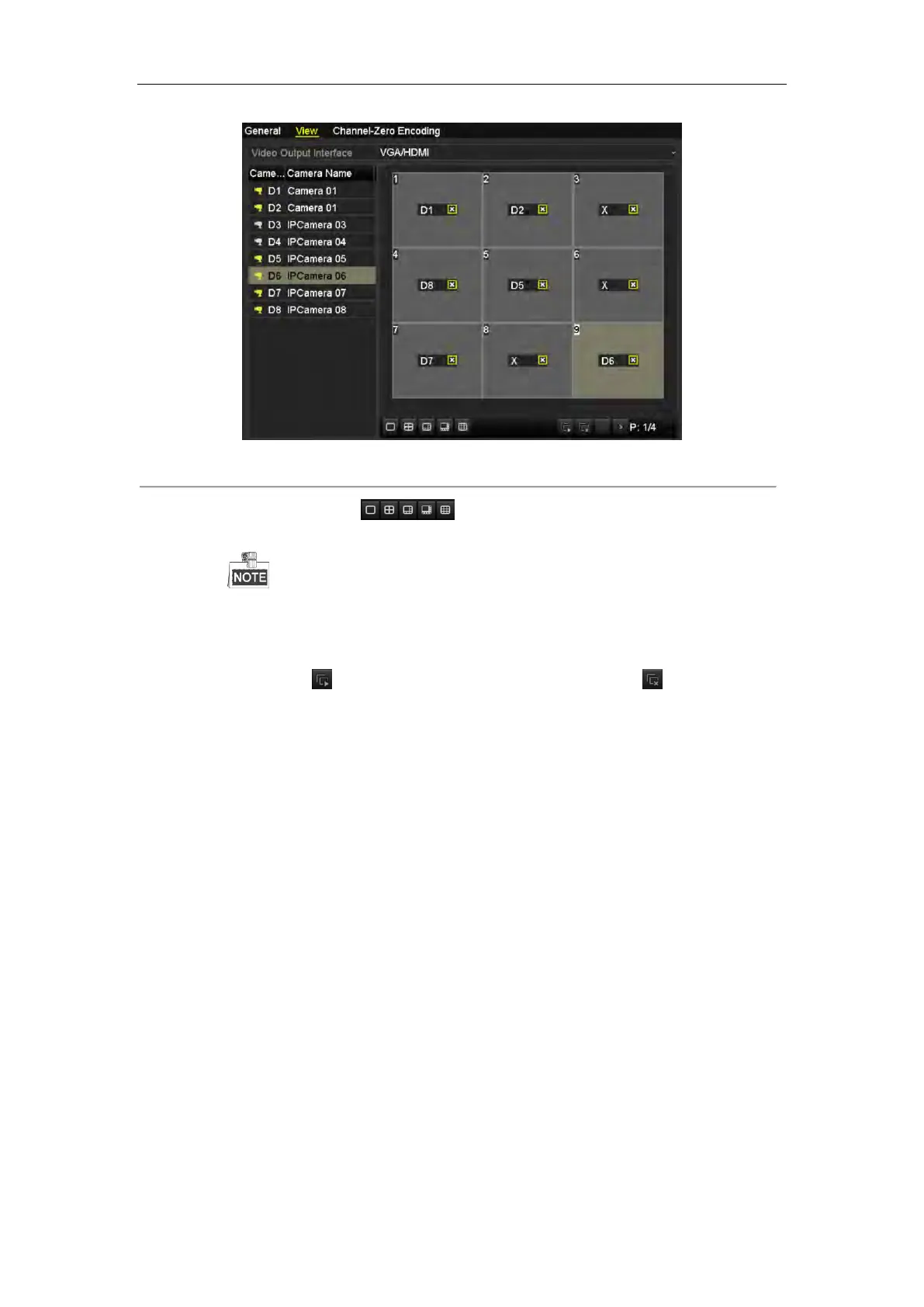

Figure 3. 8 Live View- Camera Order
1) Select a View mode in , including 1/4/6/8/16/25/32/36/64-window division
modes are supported.
The 25/32/36/64-window division mode is supported by the models which provide the
VGA/HDMI output.
2) Select the small window, and double-click on the channel number to display the channel on the
window.
You can click button to start live view for all the channels and click to stop all the live
view.
3) Click the Apply button to save the setting.
You can also click-and-drag the camera to the desired window on the live view interface to set the camera
order.
