User Manual of DS-9600/8600/7700/7600 Series NVR
113

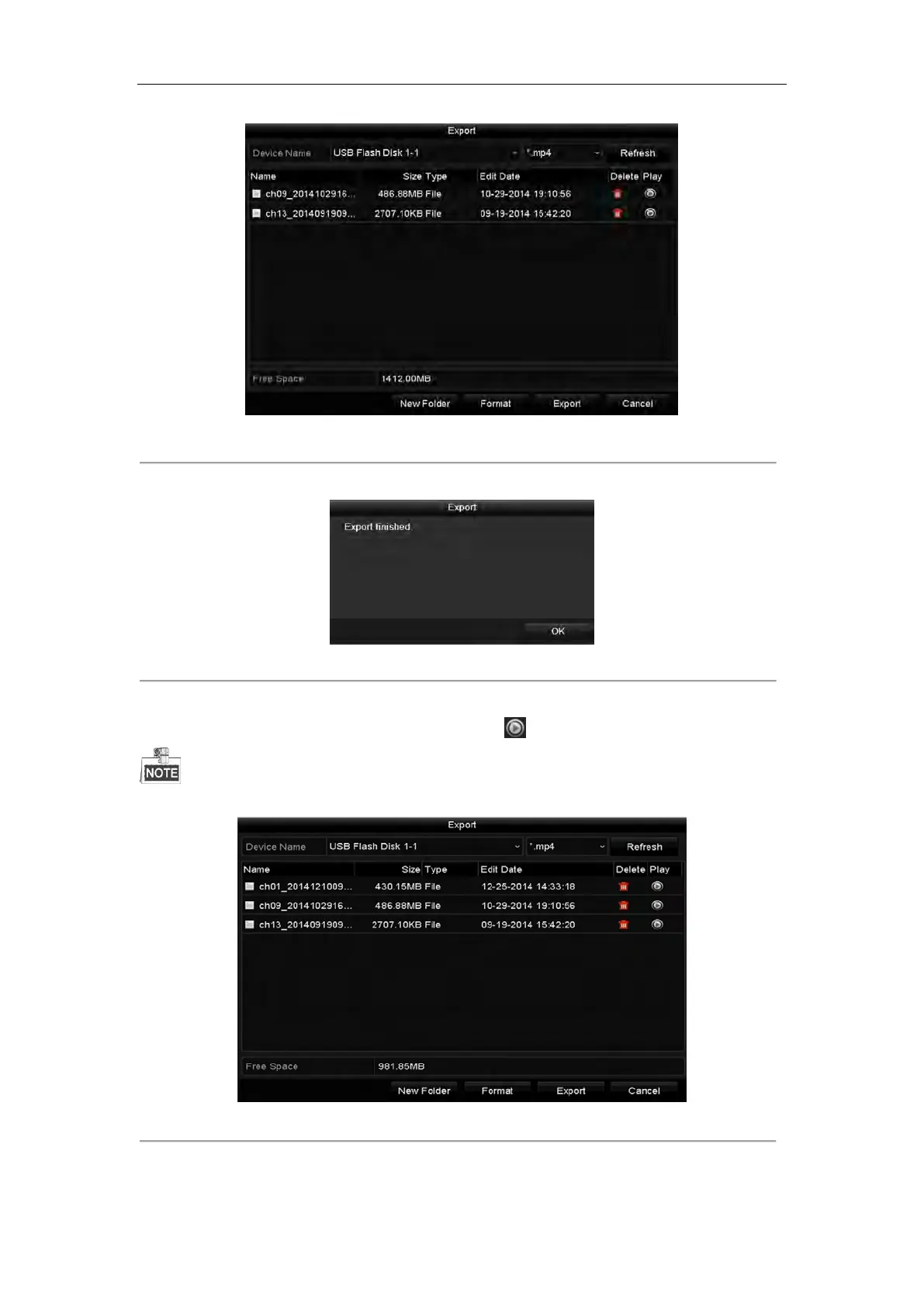

Figure 7. 23 Export by Event Using USB Flash Drive
Stay in the Exporting interface until all record files are exported with pop-up message “Export finished”.
Figure 7. 24 Export Finished
4. Check backup result.
Note: The Player player.exe will be exported automatically during record file export.
7.1.4 Backing up Video Clips
Purpose:
You may also select video clips to export directly during Playback, using USB devices (USB flash drives, USB
HDDs, USB writer), SATA writer or eSATA HDD.
Steps:
1. Enter Playback interface.
Please refer to Chapter 6.1 Playing Back Record Files.
2. During playback, use buttons and in the playback toolbar to start or stop clipping record file(s).
3. Quit Playback interface after finishing clipping and you will then be prompted to save the clips.
Note: A maximum of 30 clips can be selected for each channel.
