HIKVISION DS-8616NI-K8 Quick Start Guide

Network Video Recorder Quick Start Guide
9
No.
Name
Function Description
Shows/hides the control interface in playback mode.
PREV/FOCUS-
Switches between single screen and multi-screen mode.
Adjusts the focus in conjunction with the A/FOCUS+ button in
PTZ control mode.
PTZ/IRIS-
Enters the PTZ Control mode.
Adjusts the iris of the PTZ camera in PTZ control mode.
8
Control
Buttons
DIRECTION
Navigates between different fields and items in menus.
In the playback mode, use the Up and Down buttons to speed up
and slow down recorded video. Use the Left and Right buttons
to select the next and previous video files.
Cycles through channels in live view mode.
Controls the movement of the PTZ camera in PTZ control mode.
ENTER
Confirms selection in any of the menu modes.
Checks the checkbox fields.
Plays or pauses the video playing in playback mode.
Advances the video by a single frame in single-frame playback
mode.
Stops/starts auto switch in auto-switch mode.
9
JOG SHUTTLE Control
Moves the active selection up and down in a menu.
Cycles through different channels in live view mode.
Jumps 30s forward/backward in video files in the playback
mode.
Controls the movement of the PTZ camera in PTZ control mode.
10
POWER ON/OFF
Long press the button for more than 3 seconds to turn on/off the
NVR.
1.1.2 DS-8600NI and DS-7700NI Series

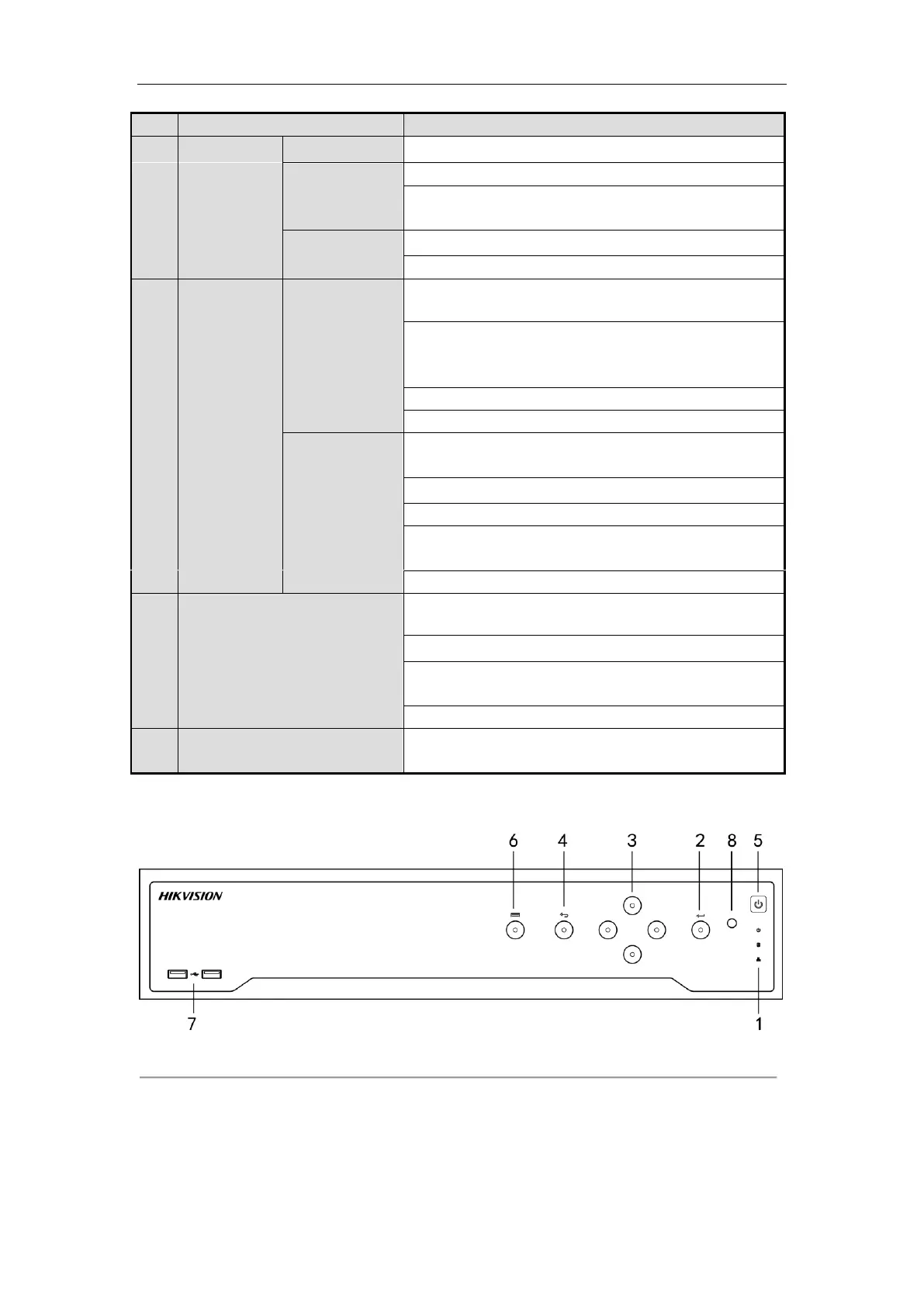

Figure 1. 3 DS-8600NI-K8 Series

HIKVISION DS-8616NI-K8 Specifications

General

Audio input	2
RS-232 interface	Yes
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Internal SATA ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
AC input voltage	100 - 240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Ethernet interface type	Gigabit Ethernet
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Input bandwidth	160 Mbit/s
Supported resolutions	3840 × 2160 1920 × 1080 1600 × 1200 1280 × 1024 1280 × 720 1024 × 768
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.265
HDD capacity	- GB
HDD interface	SATA, eSATA
Maximum HDD capacity	6000 GB
Maximum storage capacity	8 TB
Number of HDDs installed	-
Certification	CE, FCC, CB, IC, RCM, KCC, ICE-003
Product color	Black
Rack capacity	2U

Weight and Dimensions

Depth	470 mm
Width	445 mm
Height	90 mm
Weight	8000 g
