All-in-One Server Quick Start Guide
13

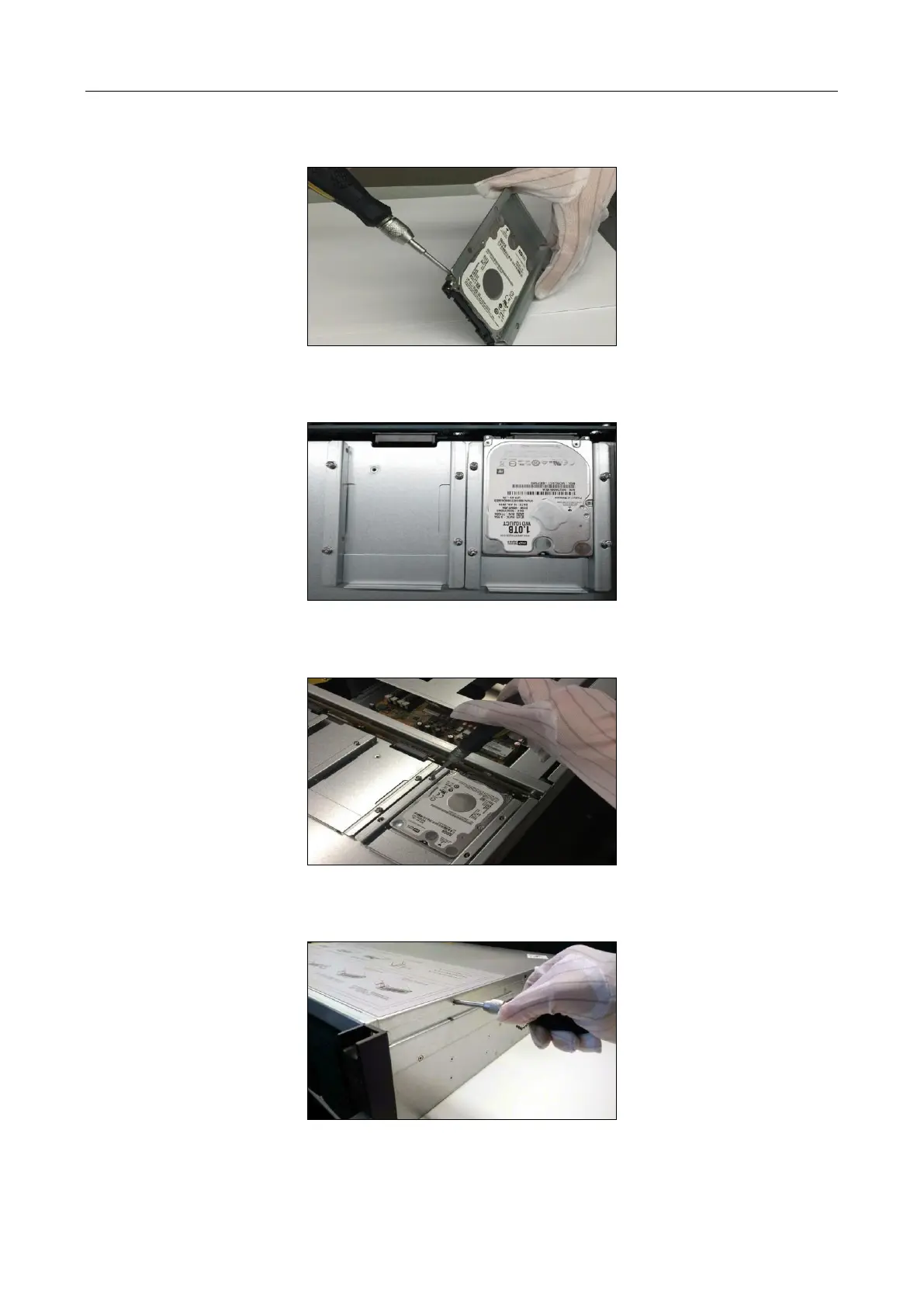

Step 4 Place a 2.5-inch HDD in HDD tray and fix them with four screws.
Figure 2-11 Connect HDD and HDD Tray
Step 5 Place the HDD tray back and connect it with the server board.
Figure 2-12 Place HDD
Step 6 Fix the HDD tray to server board with four screws.
Figure 2-13 Fix HDD Tray
Step 7 Reinstall the cover to device and fasten the screws.
Figure 2-14 Fasten Screws
