HIKVISION DS-9508NIST - Front Panels; DS-9500 NI-ST;RT Front Panel; DS-8500 NI-ST Front Panel

Quick Operation Guide of Network Video Recorder
6

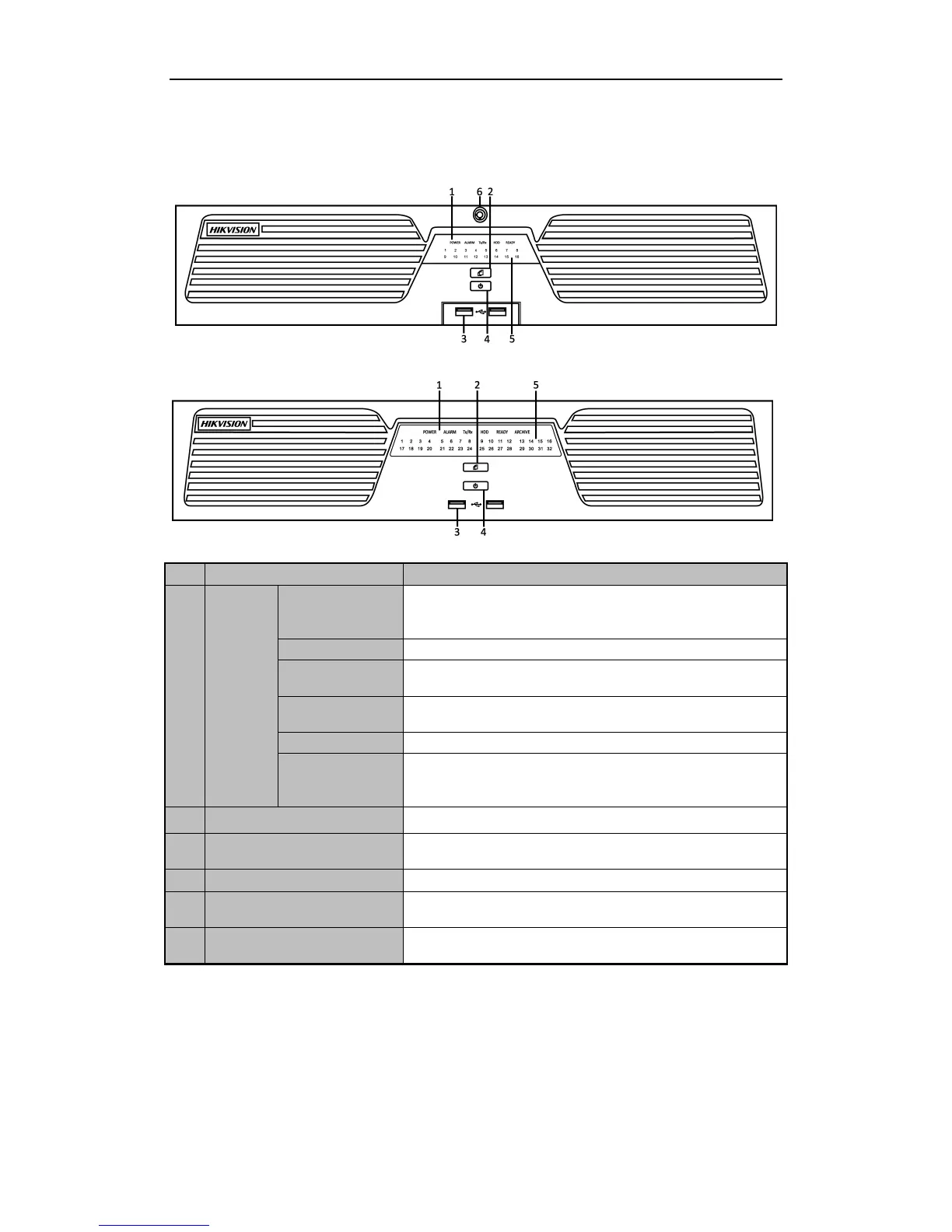

Front Panels
DS-9500NI-ST/RT Front Panel
DS-8500NI-ST Front Panel
No.
Name
Description
1
Status
LED
Indicators
Power
Turning red indicates power is connected but the system isn’t
running; turning blue indicates power is connected and the system is
running.
Alarm
Alarm LED turns red when a sensor alarm is detected.
TX/RX
TX/RX LED flashes blue when network connection is functioning
properly.
HDD
HDD LED flashes red when data is being read from or written to
HDD.
Ready
Ready LED turns blue when NVR is functioning properly.
Archive
(for DS-8500NI-ST
series)
Archive LED flashes blue when data is being backed up.
2
Backup Button
Back up video files.
3
USB Ports
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
4
Power Button
Powers NVR on/off.
5
Channel Status Indicators
Blue indicates recording, red indicates network connection, and
purple indicates recording and network connection.
6
Front Panel Lock
(for DS-9500NI-ST&RT series)
You can lock or unlock the panel by the key.
