HIKVISION DS-96128NI-I16 Quick Start Guide

Network Video Recorder Quick Start Guide
22

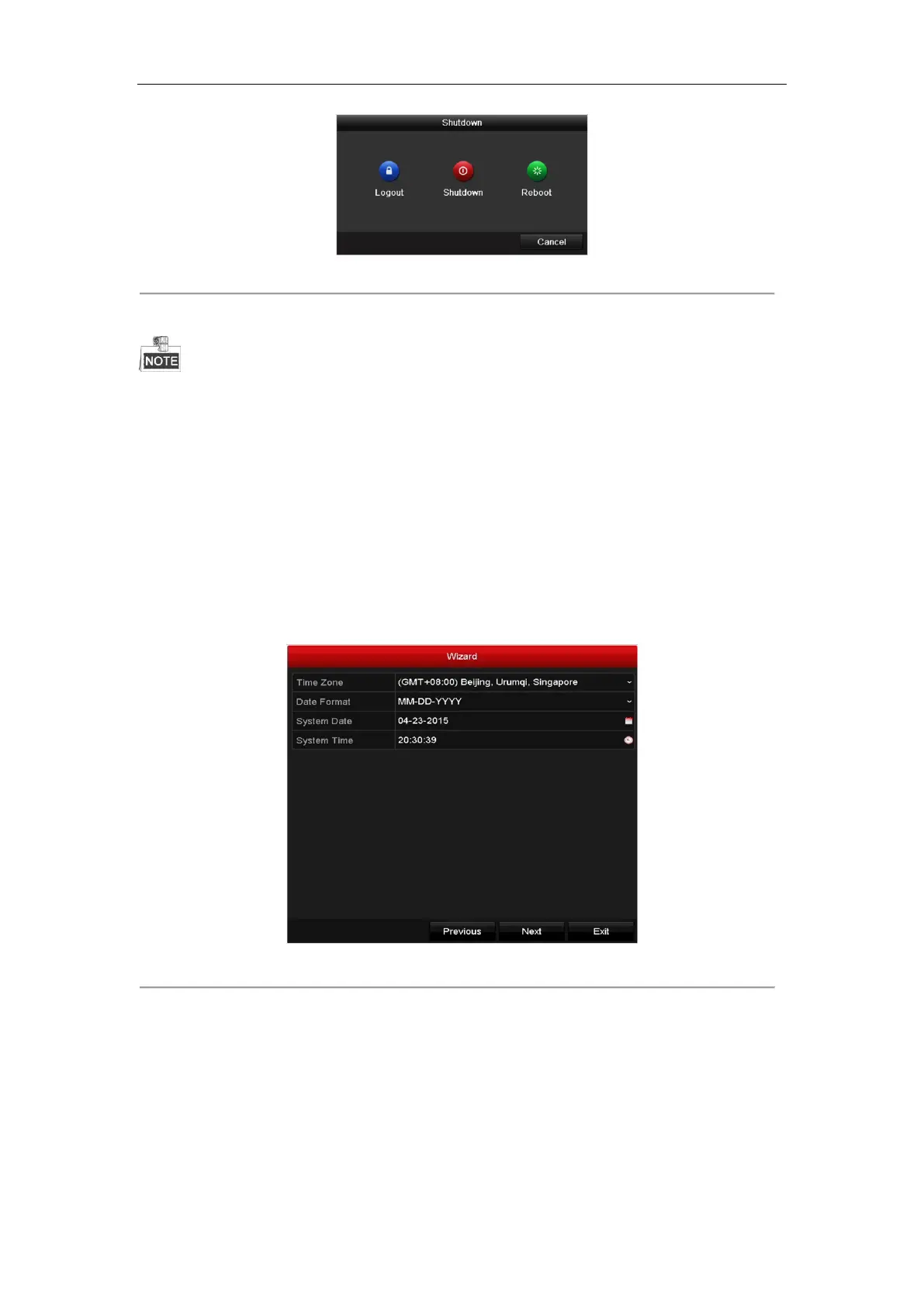

Figure 3. 8 Logout
2. Click Logout.
After you have logged out the system, menu operation on the screen is invalid. It is required to input a user name
and password to unlock the system.
3.6 Using the Setup Wizard
The Setup Wizard can walk you through some important settings of the device. By default, the Setup Wizard starts
once the device has loaded.
Check the checkbox to enable Setup Wizard when device starts. Click Next to continue the setup wizard. Follow
the guide of the Setup Wizard to configure the system resolution, system date/time, network settings, HDD
management, record settings, etc.
Figure 3. 9 Wizard
3.7 Network Settings
Purpose:
Network settings must be properly configured before you operate NVR over network.
Steps:
1. Enter the Network Settings interface.

HIKVISION DS-96128NI-I16 Specifications

General

Audio system	2-way
Input bandwidth	576 Mbit/s
Output bandwidth	512 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	128 channels
Alarm output channels	8
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
RAID levels	0, 1, 5, 6, 10
HDD capacity	- GB
RAID support	Yes
HDD interface	SATA
Maximum storage capacity	160 TB
Number of HDDs installed	0
eSATA ports quantity	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	4
Supported network protocols	IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Wi-Fi	No
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	140 W
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Display type	LCD
Display diagonal	7 \

Weight and Dimensions

Depth	494 mm
Width	442 mm
Height	146 mm
Weight	16000 g
