12.1 Configuring Array
Purpose:
RAID (redundant array of independent disks) is a storage technology that combines multiple disk drive
components into a logical unit. A RAID setup stores data over multiple hard disk drives to provide enough
redundancy so that data can be recovered if one disk fails. Data is distributed across the drives in one of several
ways called "RAID levels", depending on what level of redundancy and performance is required.
The NVR supports the disk array that is realized by software. You can enable the RAID function on your demand.
Before you start:
Please install the HDD(s) properly and it is recommended to use the same enterprise-level HDDs (including model
and capacity) for array creation and configuration so as to maintain reliable and stable running of the disks.
Introduction:
The NVR can store the data (such as record, picture, log information) in the HDD only after you have created the
array or you have configured network HDD (refer to Chapter13.2 Managing Network HDD). Our device provides
two ways for creating array, including one-touch configuration and manual configuration. The following flow
chart shows the process of creating array.

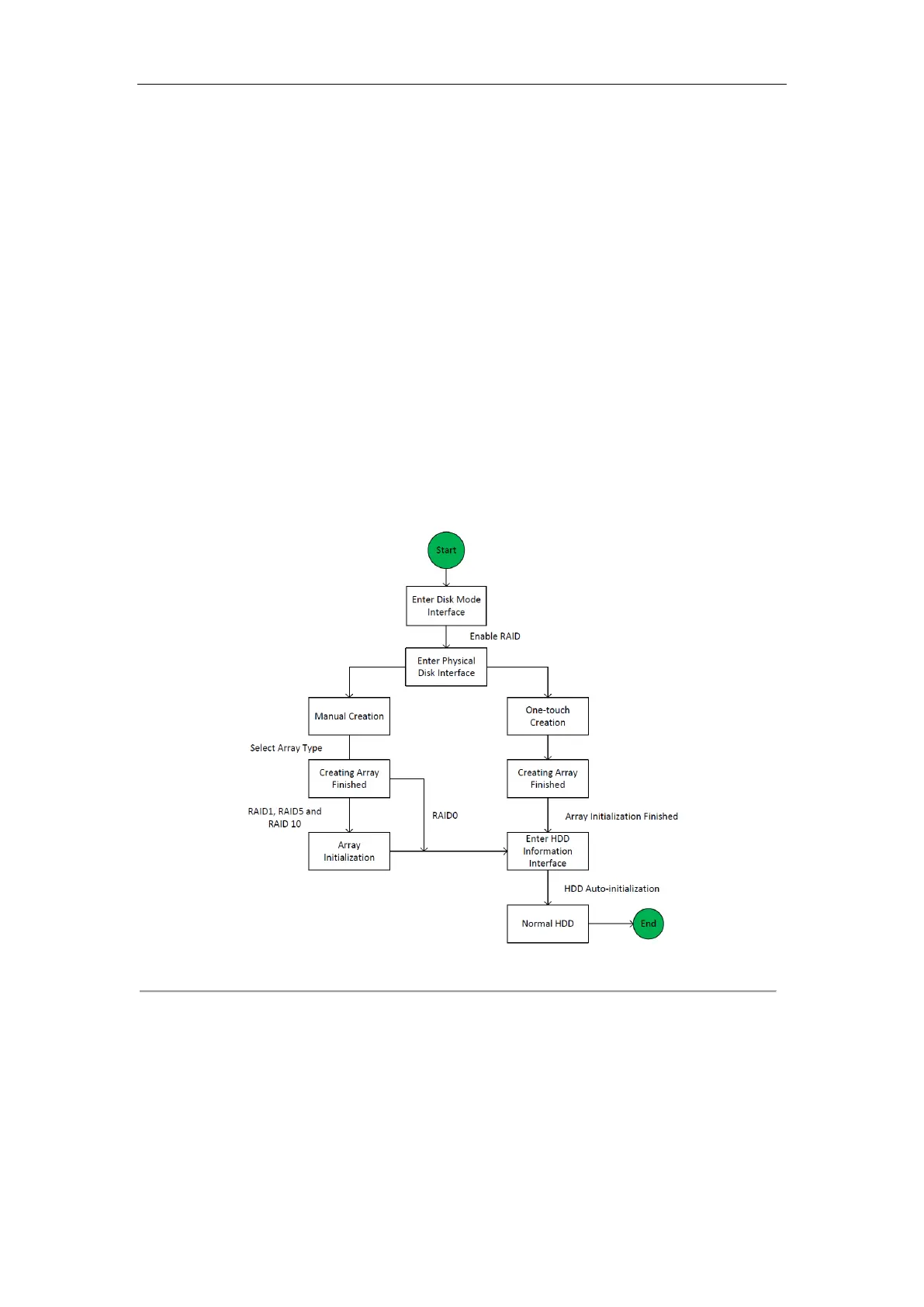

Figure 12. 1 RAID Working Flow
12.1.1 Enable RAID
Purpose:
Perform the following steps to enable the RAID function, or the disk array cannot be created.
 OPTION 1:
Enable the RAID function in the Wizard when the device startup, please refer to step 5 of Chapter 2.4 Using

HIKVISION DS-96128NI-I24 Specifications

General

Audio system	2-way
Input bandwidth	576 Mbit/s
Output bandwidth	512 Mbit/s
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	128 channels
Alarm output channels	8
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, H.265+, M-JPEG, MPEG4
Number of simultaneously playbacked channels	16 channels
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	4
Supported network protocols	IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Product color	Black
Rack capacity	4U
Rack mounting	Yes
RAID levels	0, 1, 5, 10
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	10 TB
Number of HDDs installed	0
Number of HDDs supported	24
AC input voltage	100 - 240 V
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Display type	LCD

Weight and Dimensions

Depth	528 mm
Width	447 mm
Height	172 mm
Weight	23000 g
