HIKVISION DS-96128NI-I24 User Manual

Network Video Recorder User Manual
187
13.5 Configuring Quota Mode
Purpose:
Each camera can be configured with allocated quota for the storage of recorded files or captured pictures.
Steps:
1. Enter the Storage Mode interface.
Menu > HDD > Advanced
2. Set the Mode to Quota, as shown in Figure 13. 16.
The NVR must be rebooted to enable the changes to take effect.

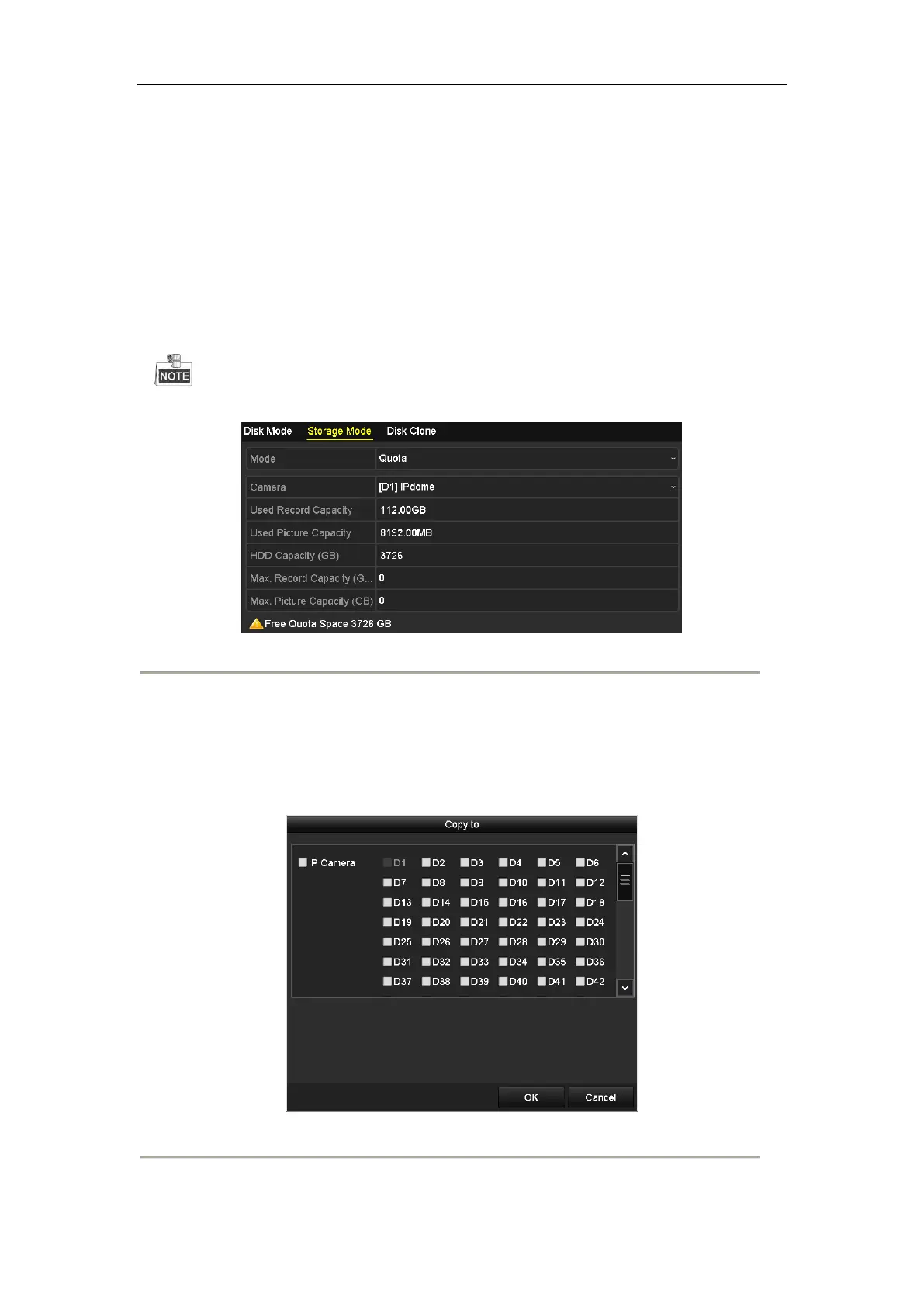

Figure 13. 16 Storage Mode Settings Interface
3. Select a camera for which you want to configure quota.
4. Enter the storage capacity in the text fields of Max. Record Capacity (GB) and Max. Picture Capacity
(GB).
5. You can copy the quota settings of the current camera to other cameras if required. Click the Copy button to
enter the Copy Camera menu, as shown in Figure 13. 17.
Figure 13. 17 Copy Settings to Other Camera(s)
6. Select the camera (s) to be configured with the same quota settings. You can also click the checkbox of IP

HIKVISION DS-96128NI-I24 Specifications

General

Audio system	2-way
Input bandwidth	576 Mbit/s
Output bandwidth	512 Mbit/s
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	128 channels
Alarm output channels	8
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, H.265+, M-JPEG, MPEG4
Number of simultaneously playbacked channels	16 channels
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	4
Supported network protocols	IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Product color	Black
Rack capacity	4U
Rack mounting	Yes
RAID levels	0, 1, 5, 10
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	10 TB
Number of HDDs installed	0
Number of HDDs supported	24
AC input voltage	100 - 240 V
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Display type	LCD

Weight and Dimensions

Depth	528 mm
Width	447 mm
Height	172 mm
Weight	23000 g
