HIKVISION DS-96128NI-I24 User Manual

Network Video Recorder User Manual
202
15.2 Searching & Exporting Log Files
Purpose:
The operation, alarm, exception and information of the NVR can be stored in log files, which can be viewed and
exported at any time.
Steps:
1. Enter the Log Search interface.
Menu > Maintenance > Log Information

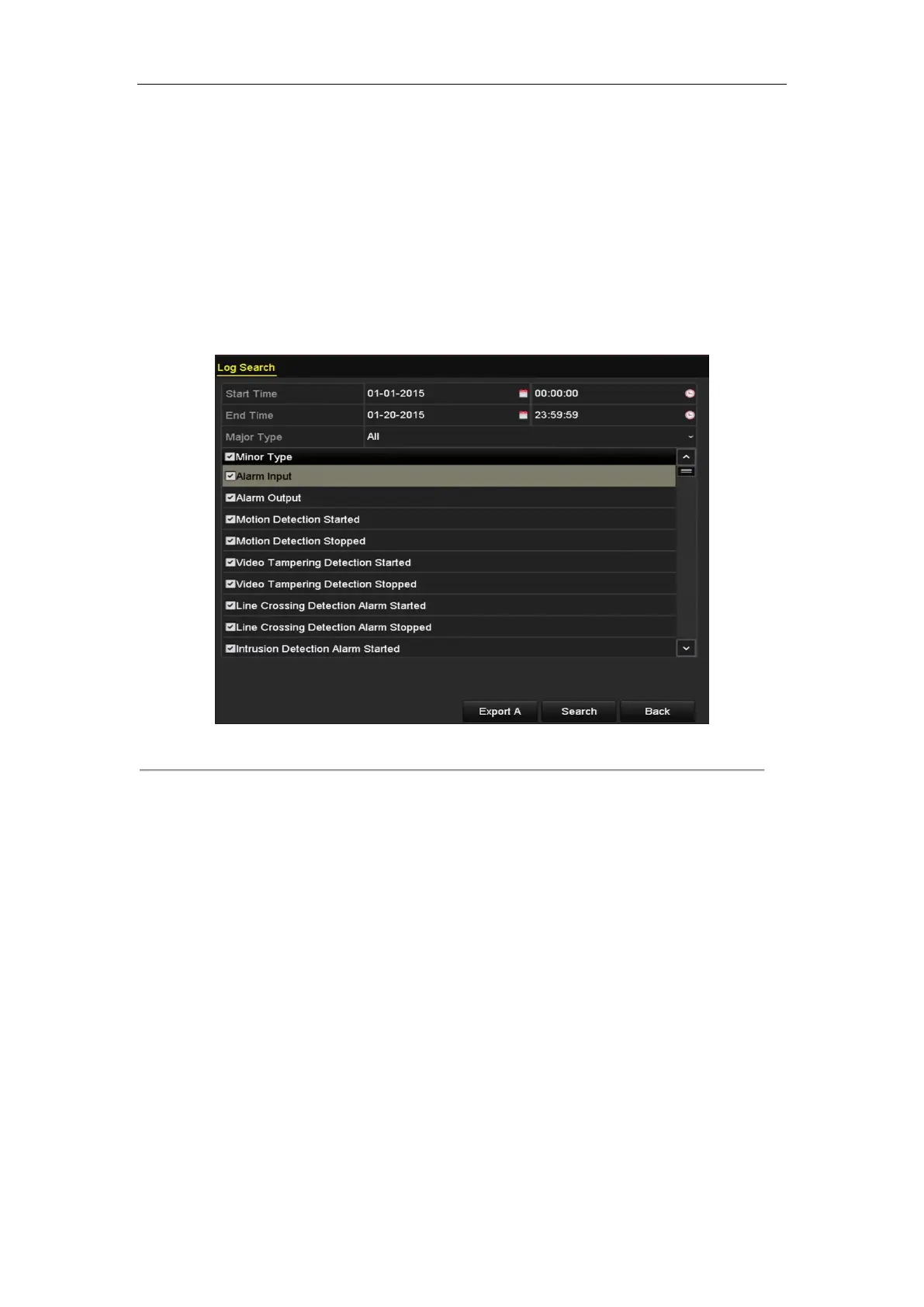

Figure 15. 2 Log Search Interface
2. Set the log search conditions to refine your search, including the Start Time, End Time, Major Type and
Minor Type.
3. Click the Search button to start search log files.
4. The matched log files will be displayed on the list shown below.

HIKVISION DS-96128NI-I24 Specifications

General

Audio system	2-way
Input bandwidth	576 Mbit/s
Output bandwidth	512 Mbit/s
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	128 channels
Alarm output channels	8
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, H.265+, M-JPEG, MPEG4
Number of simultaneously playbacked channels	16 channels
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	4
Supported network protocols	IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Product color	Black
Rack capacity	4U
Rack mounting	Yes
RAID levels	0, 1, 5, 10
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	10 TB
Number of HDDs installed	0
Number of HDDs supported	24
AC input voltage	100 - 240 V
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Display type	LCD

Weight and Dimensions

Depth	528 mm
Width	447 mm
Height	172 mm
Weight	23000 g
