HIKVISION DS-96128NI-I24 User Manual

Network Video Recorder User Manual
203

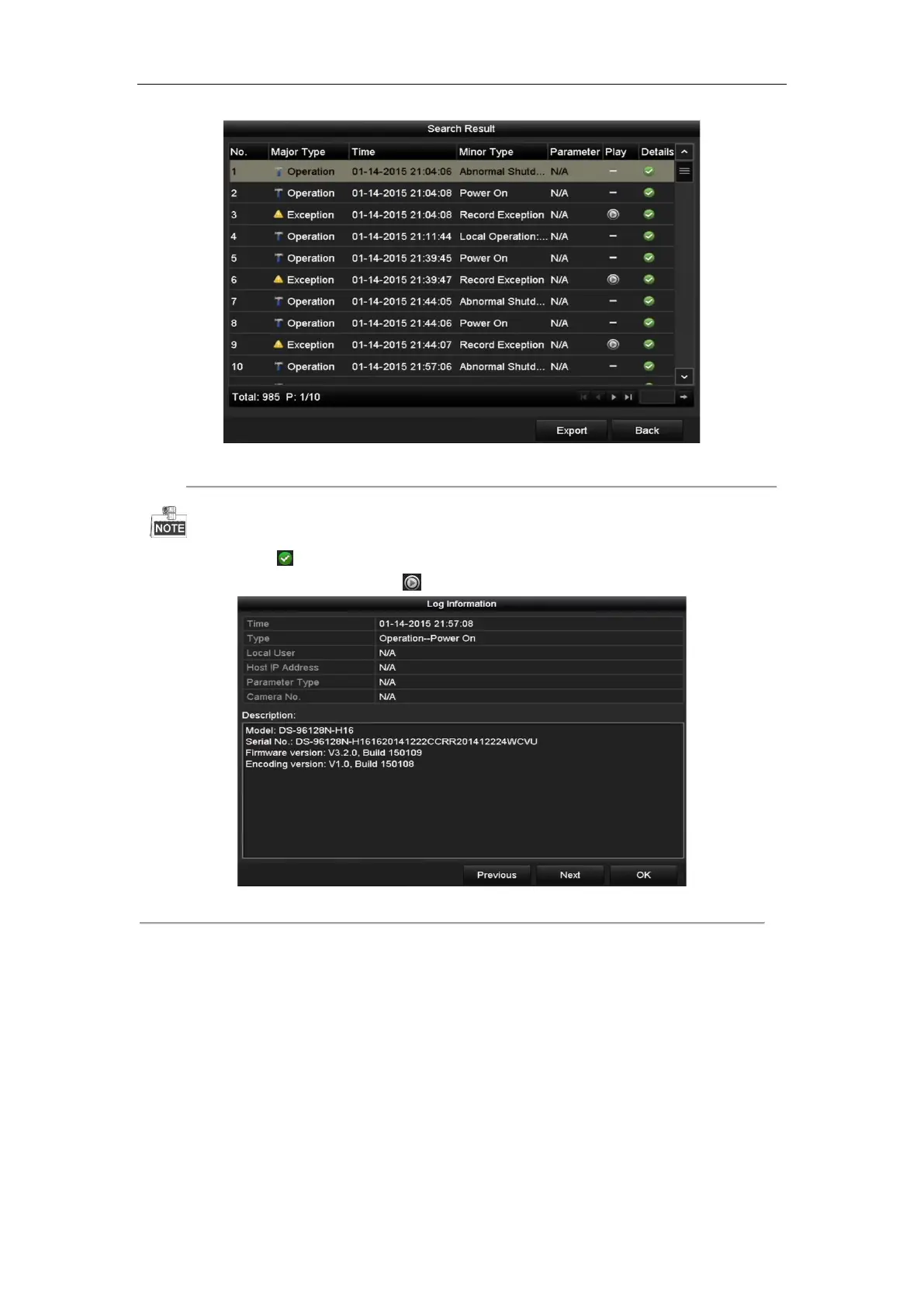

Figure 15. 3 Log Search Results
Up to 2000 log files can be displayed each time.
5. You can click the button of each log or double click it to view its detailed information, as shown in
Figure 15. 4. And you can also click the button to view the related video files if available.
Figure 15. 4 Log Details
6. If you want to export the log files, click the Export button to enter the Export menu, as shown in Figure 15.
4 Log Details.
You can also click Export All on the Log Search interface (Figure 15.2) to enter the Export interface (Figure
15.5), and all the system logs will be exported to the backup device.

HIKVISION DS-96128NI-I24 Specifications

General

Audio system	2-way
Input bandwidth	576 Mbit/s
Output bandwidth	512 Mbit/s
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	128 channels
Alarm output channels	8
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, H.265+, M-JPEG, MPEG4
Number of simultaneously playbacked channels	16 channels
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	4
Supported network protocols	IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Product color	Black
Rack capacity	4U
Rack mounting	Yes
RAID levels	0, 1, 5, 10
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	10 TB
Number of HDDs installed	0
Number of HDDs supported	24
AC input voltage	100 - 240 V
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Display type	LCD

Weight and Dimensions

Depth	528 mm
Width	447 mm
Height	172 mm
Weight	23000 g
