Network Video Recorder User Manual
65
 The redundant record/capture is used when you want to save the record files or captured pictures in the
redundant HDD. You must configure the redundant HDD in HDD settings. For detailed information,
see Chapter 13.4.2.
 The parameters of Main Stream (Event) are read-only.
3. Parameters Settings for Sub-stream
1) Enter the Sub-stream tab page.

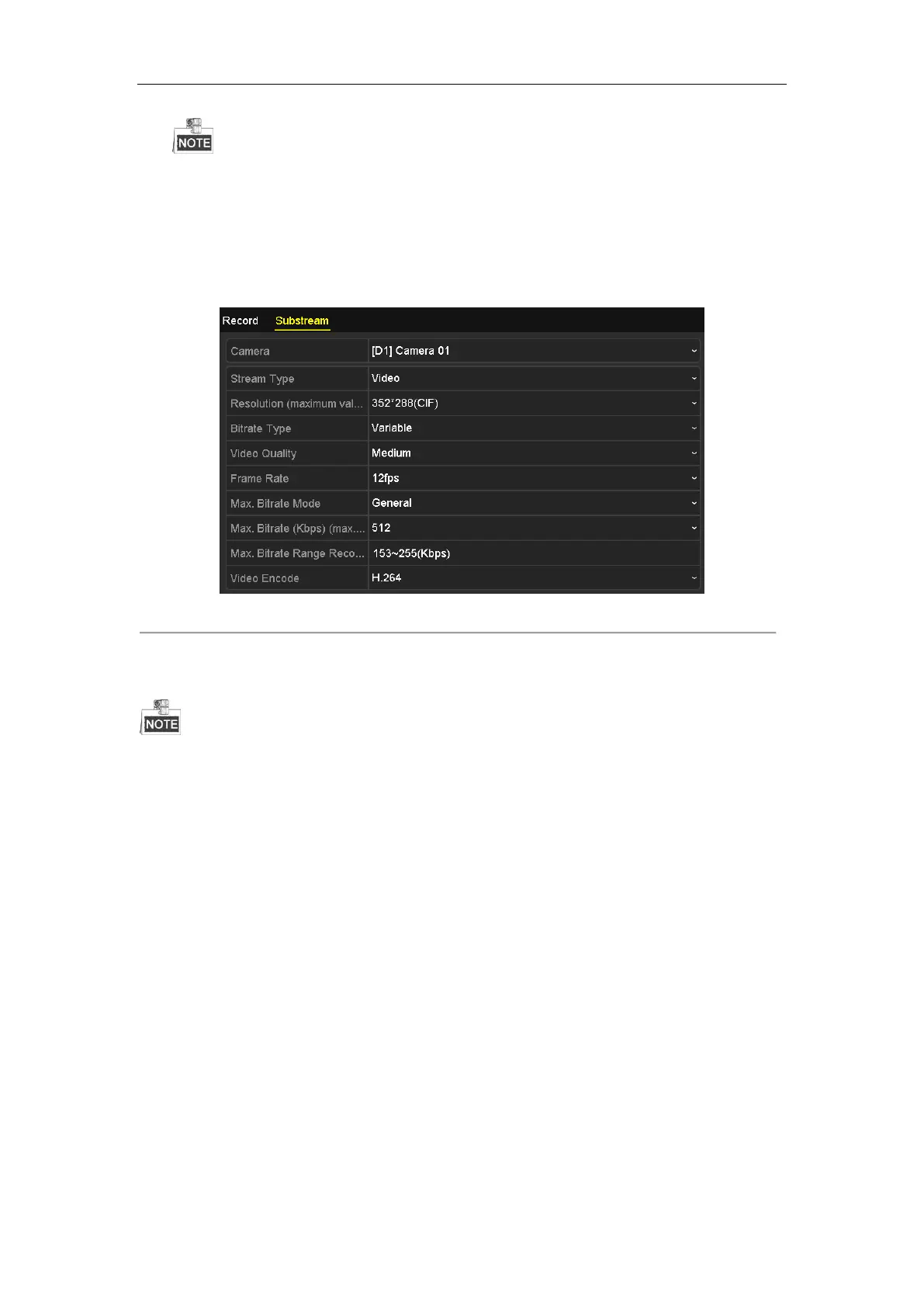

Figure 5. 5 Sub-stream Parameters
2) Configure the parameters of the camera.
3) Click Apply to save the settings.
The interval is the time period between two capturing actions. You can configure all the parameters on this menu
on your demand.

HIKVISION DS-96128NI-I24 Specifications

General

Audio system	2-way
Input bandwidth	576 Mbit/s
Output bandwidth	512 Mbit/s
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	128 channels
Alarm output channels	8
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, H.265+, M-JPEG, MPEG4
Number of simultaneously playbacked channels	16 channels
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	4
Supported network protocols	IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Product color	Black
Rack capacity	4U
Rack mounting	Yes
RAID levels	0, 1, 5, 10
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	10 TB
Number of HDDs installed	0
Number of HDDs supported	24
AC input voltage	100 - 240 V
Power consumption (typical)	14 W
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Display type	LCD

Weight and Dimensions

Depth	528 mm
Width	447 mm
Height	172 mm
Weight	23000 g
