Network Video Recorder User Manual
119

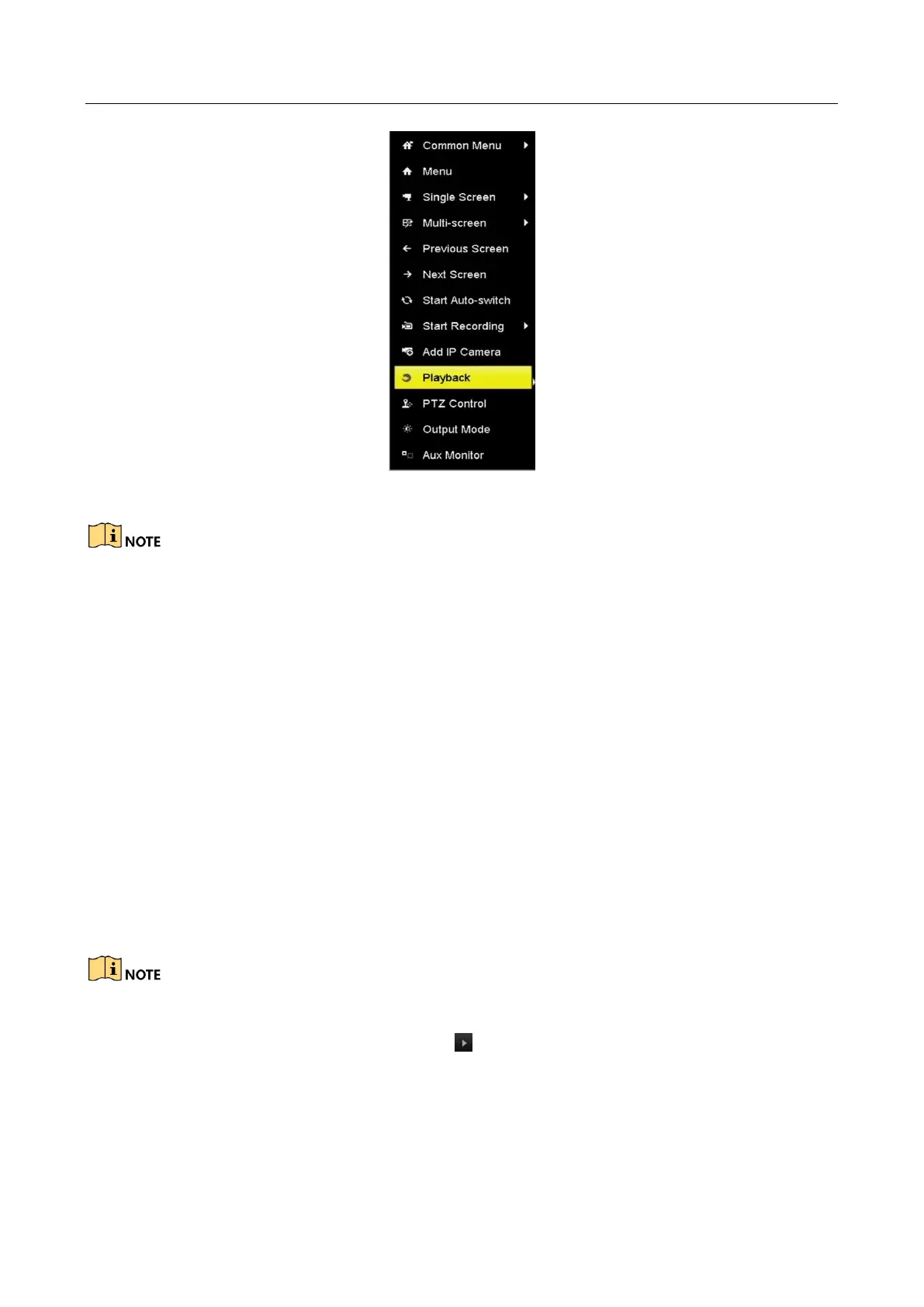

Figure 6-2 Right-click Menu under Live View
Pressing numerical buttons will switch playback to the corresponding channels during playback
process.
Playback by Time
Purpose
Play back video files recorded in specified time duration. Multi-channel simultaneous playback and
channel switch are supported.
Step 1 Enter playback interface.
Menu>Playback
Step 2 Select the Normal/Smart in the drop-down list on the top-left side.
Step 3 Select the stream to Main Stream or Sub Stream. (for I series NVR only)
Step 4 Select a camera in the camera list.
The main stream or sub stream for recording is configurable in Menu>Record>Parameters.
Step 5 Select a date in the calendar and click the button on the left toolbar to play the video
file.

HIKVISION DS-9632NI-I16 Specifications

General

Input bandwidth	320 Mbit/s
Output bandwidth	256 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	8
Supported resolutions	3840 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video recording modes	1080p, 2160p
Video formats supported	H.264, H.264+, H.265, MPEG4
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	2
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	96 TB
Number of HDDs installed	0
Power supply	300 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	3U

Weight and Dimensions

Depth	496 mm
Width	445 mm
Height	146 mm
Weight	12500 g
