HIKVISION DS-9632NI-I16 User Manual

Network Video Recorder User Manual
28
1.1.4 DS-7600NI Series

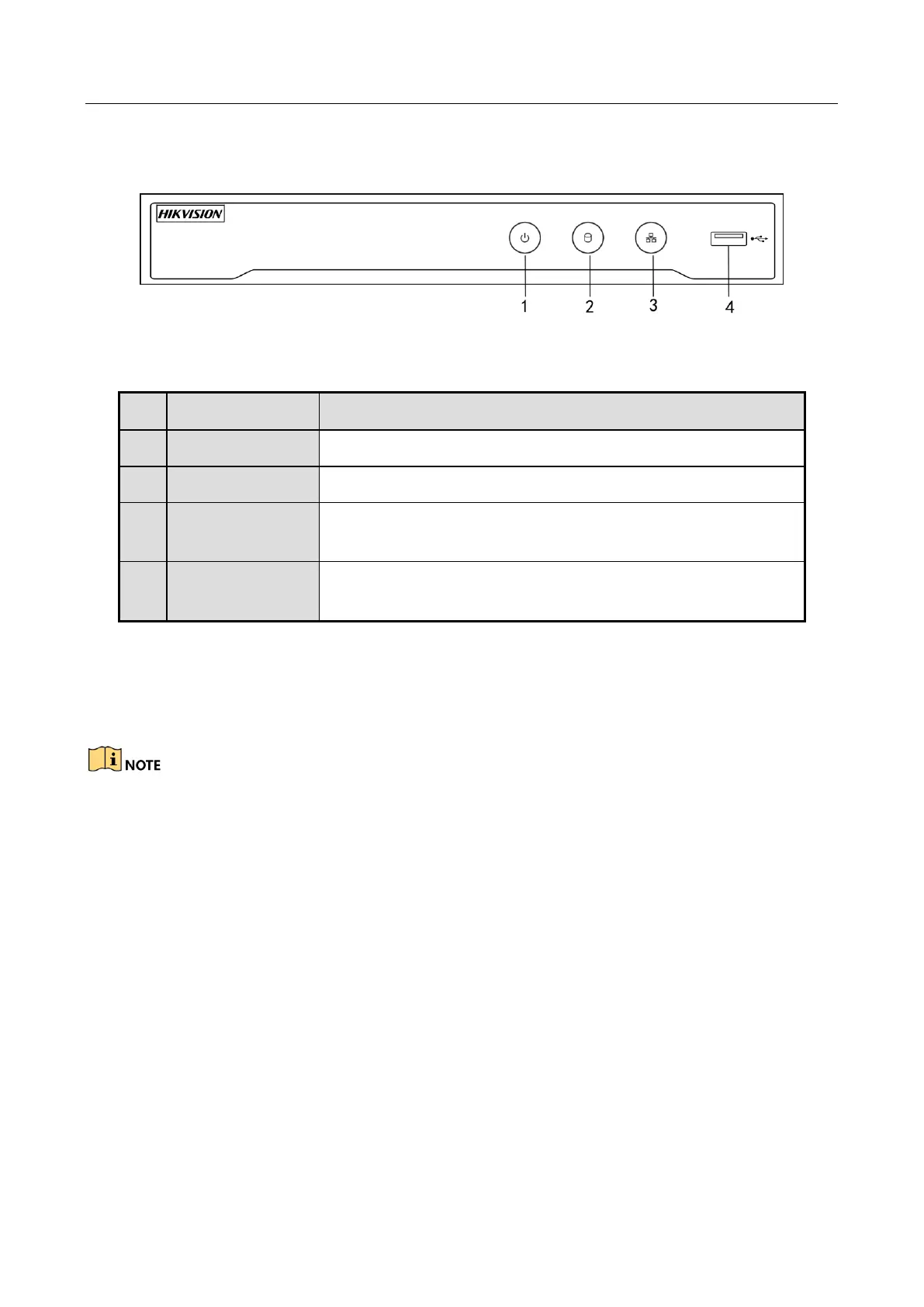

Figure 1-6 DS-7600NI Series
Table 1-4 Panel Description
1.2 IR Remote Control Operations
The NVR may also be controlled with the included IR remote control, shown in Figure 1-7.
Batteries (2×AAA) must be installed before operation.
The IR Remote is set at the factory to control the NVR (using default Device ID# 255) without any
additional steps. Device ID# 255 is the default universal device identification number shared by the
NVRs. You may also pair an IR Remote to a specific NVR by changing the Device ID#, as follows:
Pairing (Enabling) the IR Remote to a Specific NVR (optional)
You can pair an IR Remote to a specific Hikvision NVR by creating a user-defined Device ID#. This
feature is useful when using multiple IR Remotes and NVRs.
On the NVR:
Step 1 Go to General > More Settings.
Step 2 Type a number (255 digits maximum) into the Device No. field.
Step 3 On the IR Remote:
No.
Name
Connections
1
POWER
Turns green when NVR is powered up.
2
HDD
Flickers red when data is being read from or written to HDD.
3
Tx/Rx
Flickers blue when network connection is functioning
properly.
4
USB Interface
Universal Serial Bus (USB) port for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).

HIKVISION DS-9632NI-I16 Specifications

General

Input bandwidth	320 Mbit/s
Output bandwidth	256 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	8
Supported resolutions	3840 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video recording modes	1080p, 2160p
Video formats supported	H.264, H.264+, H.265, MPEG4
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	2
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	96 TB
Number of HDDs installed	0
Power supply	300 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	3U

Weight and Dimensions

Depth	496 mm
Width	445 mm
Height	146 mm
Weight	12500 g
