Network Video Recorder User Manual
202

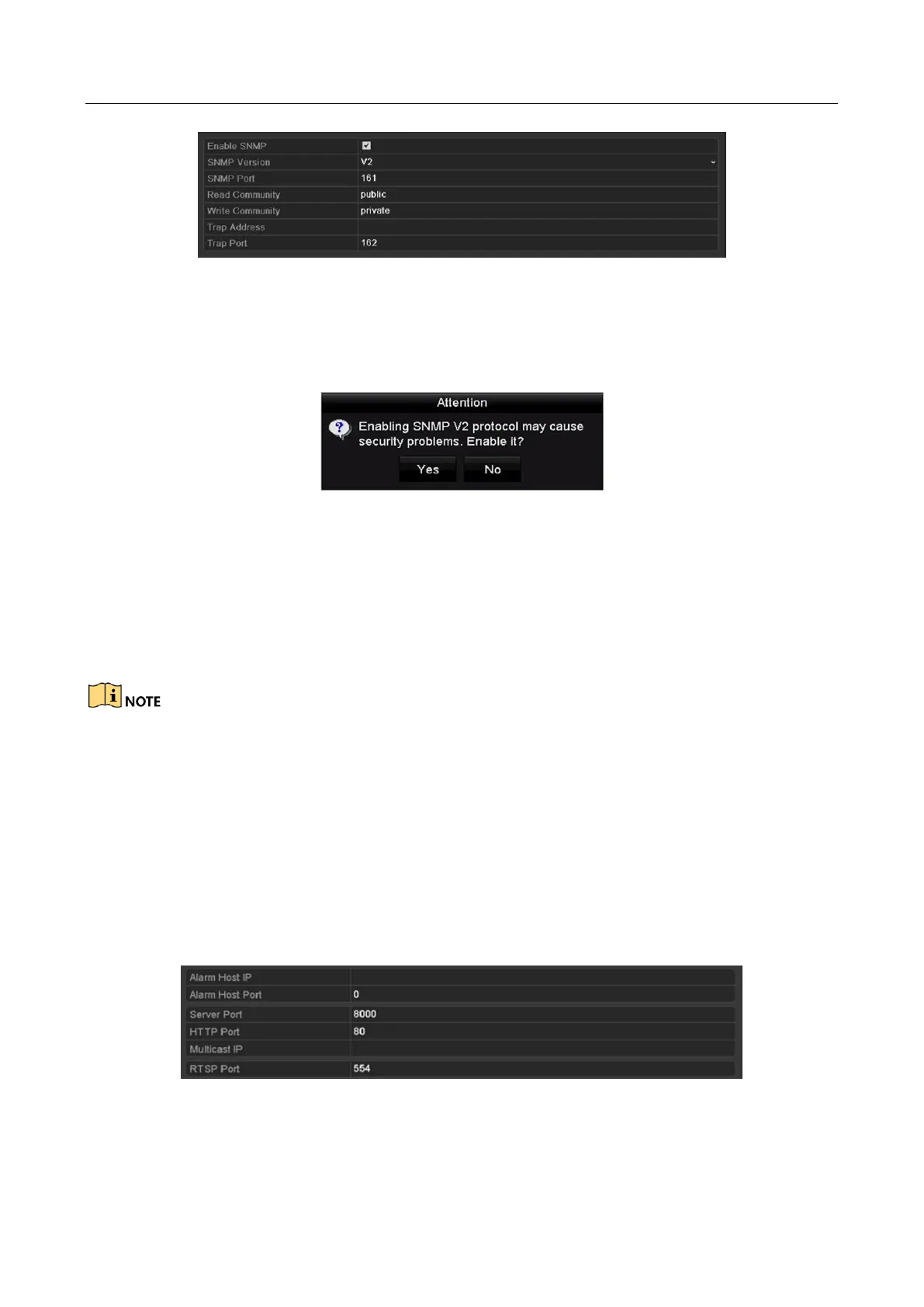

Figure 12-9 SNMP Settings Interface
Step 3 Check the SNMP checkbox to enable this feature.
Step 4 The enabling of SNMP may cause security problems. Click Yes to continue or No to cancel
the operation.
Figure 12-10 SNMP Settings Interface
Step 5 When you choose the Yes option in step4, configure the following SNMP settings:
Trap Address: IP Address of SNMP host.
Trap Port: Port of SNMP host.
Step 6 Click the Apply button to save and exit the interface.
Before setting the SNMP, please download the SNMP software and manage to receive the device
information via SNMP port. By setting the Trap Address, the NVR is allowed to send the alarm
event and exception message to the surveillance center.
12.2.5 Configuring More Settings
Step 1 Enter the Network Settings interface.
Menu > Configuration > Network
Step 2 Select the More Settings tab to enter the More Settings interface.
Figure 12-11 More Settings Interface
Step 3 Configure the remote alarm host, server port, HTTP port, multicast, RTSP port.

Table of Contents

Other manuals for HIKVISION DS-9632NI-I16

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-9632NI-I16 and is the answer not in the manual?

HIKVISION DS-9632NI-I16 Specifications

General IconGeneral
Input bandwidth320 Mbit/s
Output bandwidth256 Mbit/s
Maximum resolution3840 x 2160 pixels
Alarm input channels16
Video input channels32 channels
Alarm output channels8
Supported resolutions3840 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video recording modes1080p, 2160p
Video formats supportedH.264, H.264+, H.265, MPEG4
Audio RCA inputs1
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates10, 100, 1000 Mbit/s
Power over Ethernet (PoE)Yes
Ethernet LAN (RJ-45) ports2
Wi-FiNo
HDD capacity0 GB
HDD interfaceSerial ATA
Maximum storage capacity96 TB
Number of HDDs installed0
Power supply300 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)45 W
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Product colorBlack
Rack capacity3U
Weight and Dimensions IconWeight and Dimensions
Depth496 mm
Width445 mm
Height146 mm
Weight12500 g
