HIKVISION DS-9632NI-I16 User Manual

Network Video Recorder User Manual
140

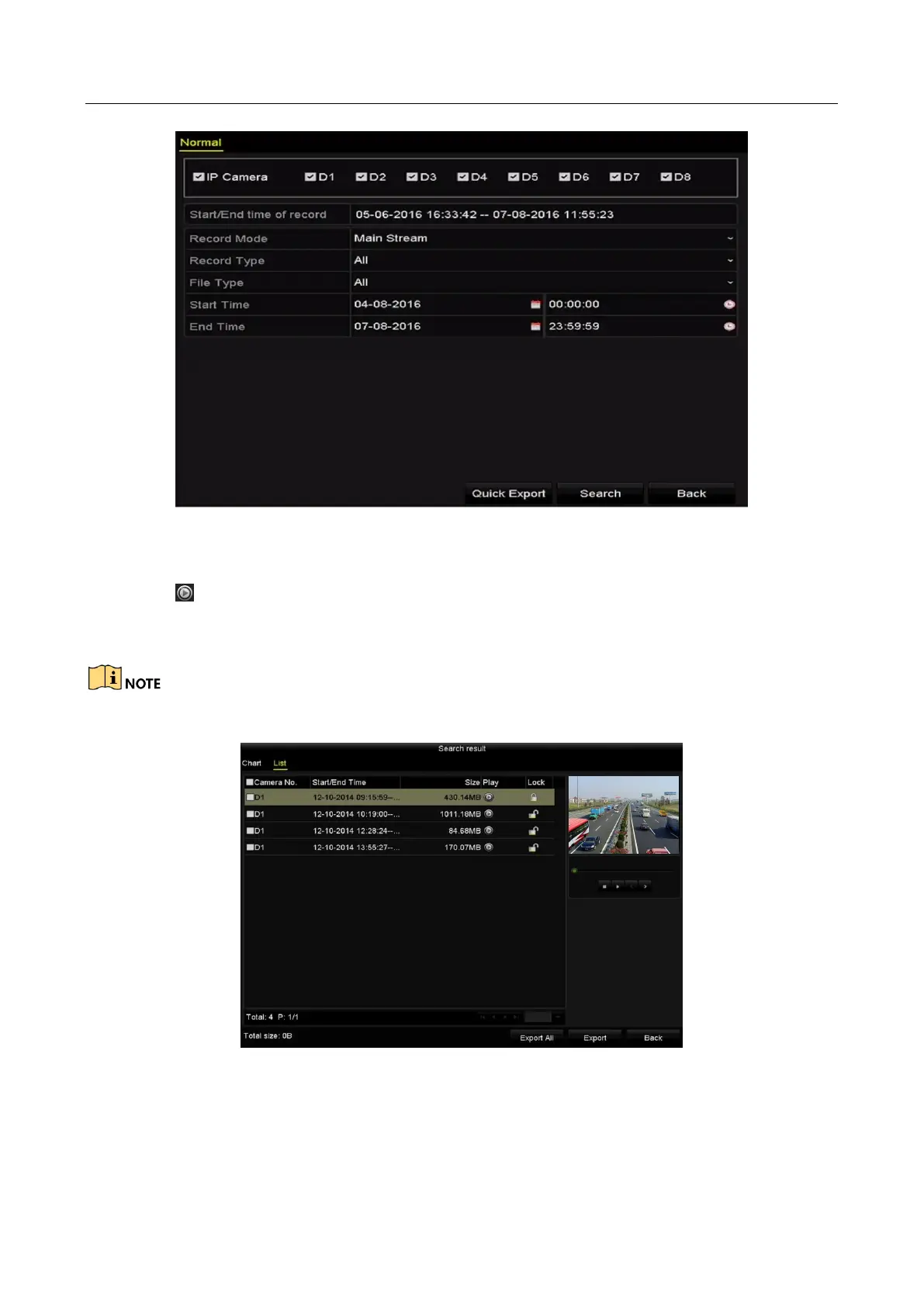

Figure 7-5 Normal Video Search for Backup
Step 4 Select video files or pictures from the Chart or List to export.
Click to play the record file if you want to check it.
Check the checkbox before the record files you want to back up.
The size of the currently selected files is displayed in the lower-left corner of the window.
Figure 7-6 Result of Normal Video Search for Backup
Step 5 Export the video files or picture files.
Click Export All button to export all the files.

HIKVISION DS-9632NI-I16 Specifications

General

Input bandwidth	320 Mbit/s
Output bandwidth	256 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	8
Supported resolutions	3840 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video recording modes	1080p, 2160p
Video formats supported	H.264, H.264+, H.265, MPEG4
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	2
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	96 TB
Number of HDDs installed	0
Power supply	300 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	3U

Weight and Dimensions

Depth	496 mm
Width	445 mm
Height	146 mm
Weight	12500 g
