Network Video Recorder User Manual
67
edited in the Network Configuration interface, see Chapter 11.1 Configuring General
Settings for detailed information.

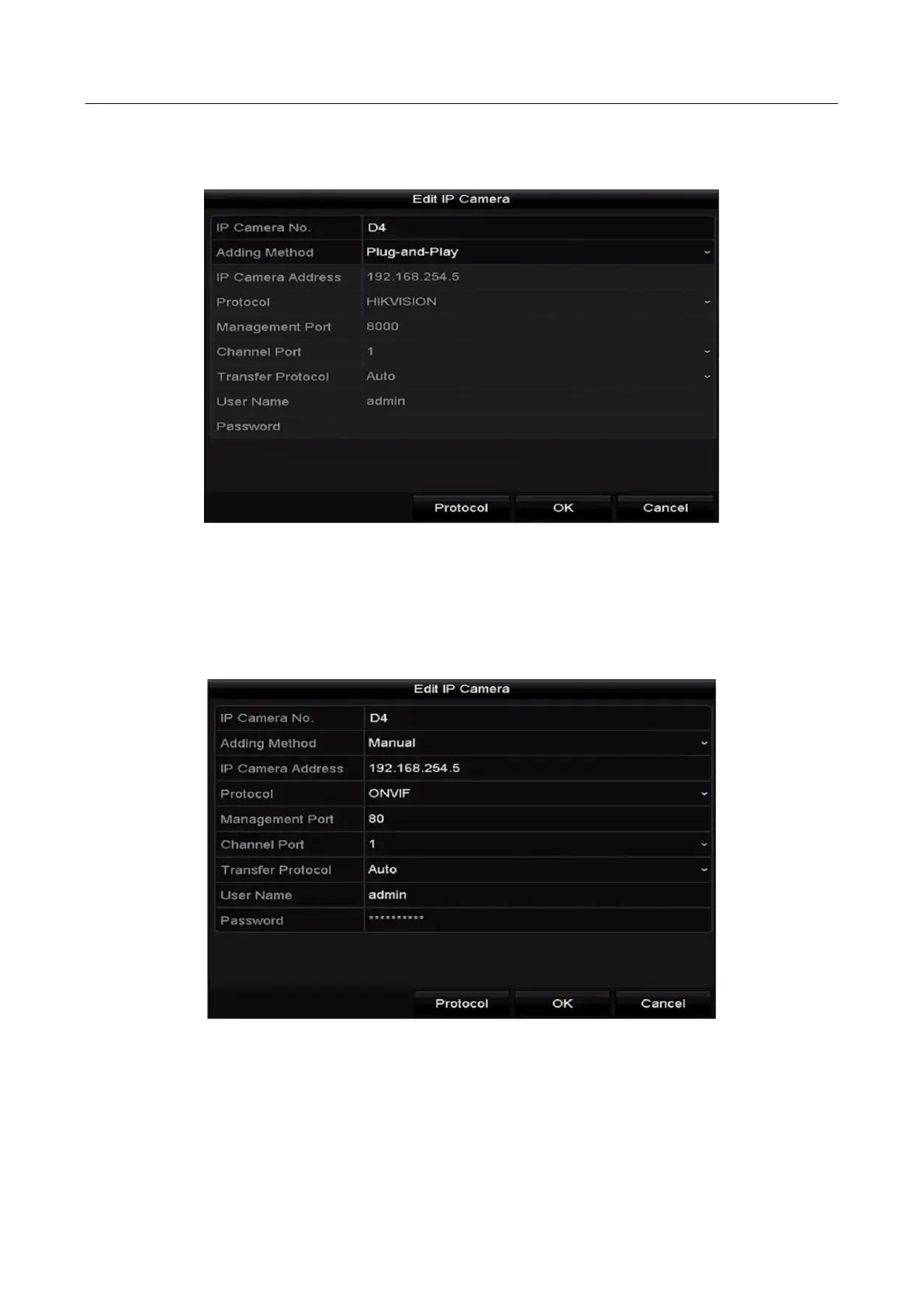

Figure 2-41 Edit IP Camera Interface - Plug-and-Play
• Manual: You can disable the PoE interface by selecting the manual while the current
channel can be used as a normal channel and the parameters can also be edited.
Input the IP address, the user name and password of administrator manually, and click OK
to add the IP camera.
Figure 2-42 Edit IP Camera Interface - Manual

HIKVISION DS-9632NI-I16 Specifications

General

Input bandwidth	320 Mbit/s
Output bandwidth	256 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	8
Supported resolutions	3840 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video recording modes	1080p, 2160p
Video formats supported	H.264, H.264+, H.265, MPEG4
Audio RCA inputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	2
Wi-Fi	No
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	96 TB
Number of HDDs installed	0
Power supply	300 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	45 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Rack capacity	3U

Weight and Dimensions

Depth	496 mm
Width	445 mm
Height	146 mm
Weight	12500 g
