Chapter 2 Appearance and Installation
2.1 Device Appearance
The system adopts rack-mounted chassis which provides LED indicators for the system status.
2.1.1 Chassis Overall View

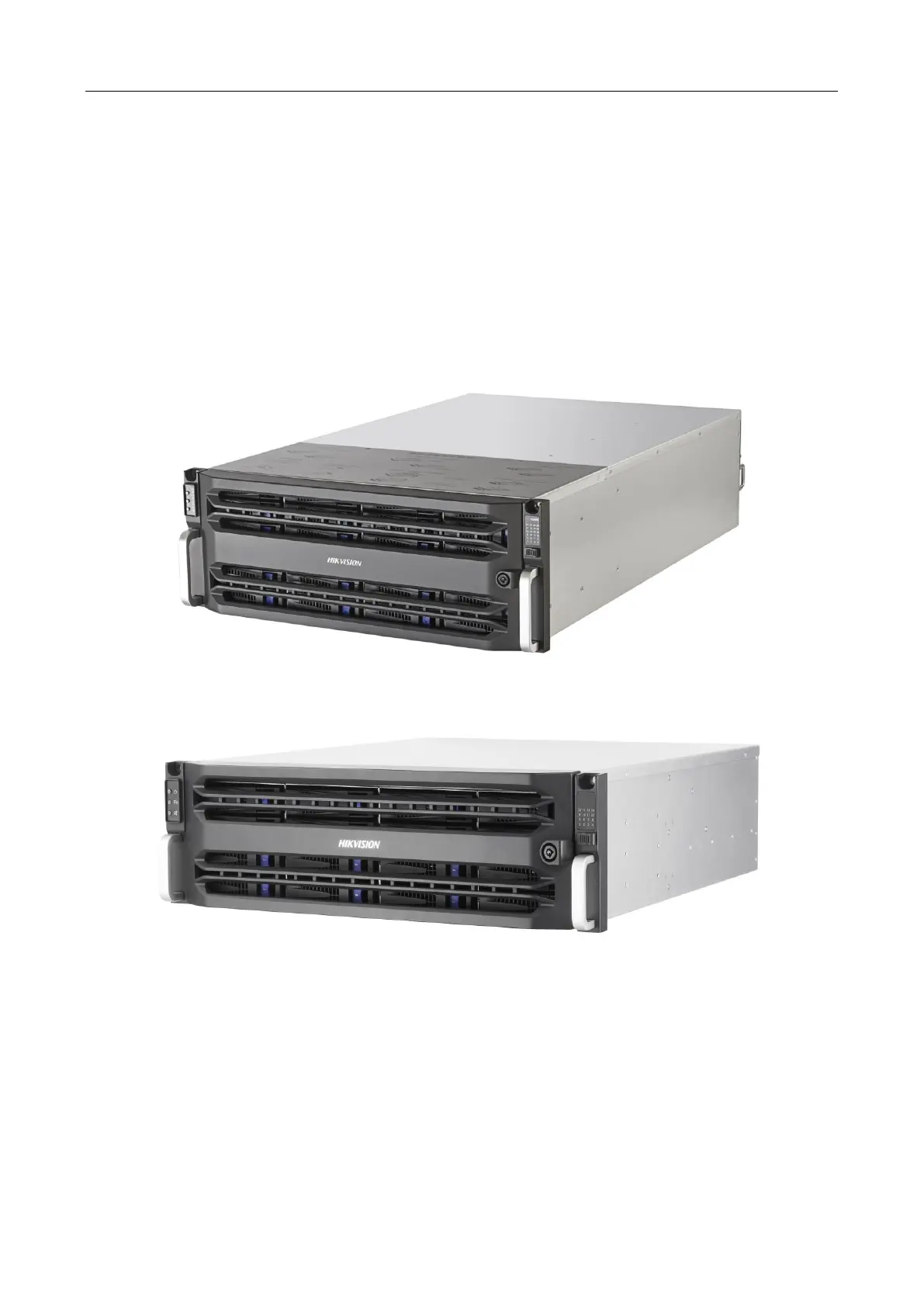

Figure 2-1 Overall View of DS-AT1000S/360, DS-AT1000S/440, and DS-AT1000S/480
Figure 2-2 Overall View of DS-AT1000S/160, DS-AT1000S/240, DS-AT1000S/300, and DS-AT1000S/320
2.1.2 Front Panel
The disk slots view of the device is shown below.
Hard disks of 3.5 inches are supported. As shown above, slot order obeys the principle of left to
right and bottom to top. The HDDs in bottom floor, from left to right, are HDD ①~④. The HDDs
in second floor, from left to right, are HDD ⑤~⑧. And so on.
