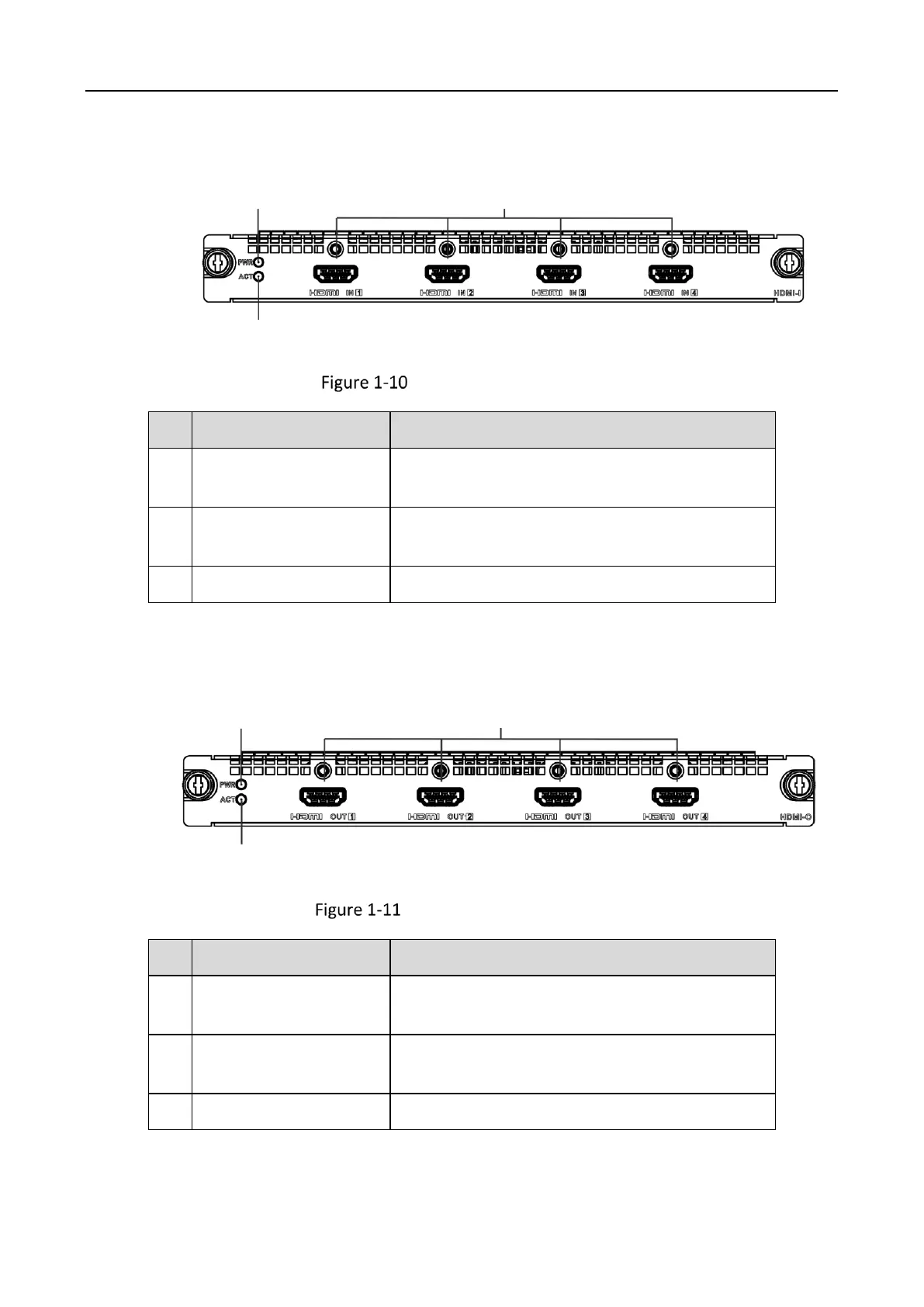

HDMI Input Board
1
2
3
Front View of HDMI Input Board
No.
Name
Description
1
Power LED
When the board is powered on normally, the
power LED is steady green.
2
Active LED
When the board runs normally, the active LED is
flashing green.
3
HDMI video input port
Provide 4 ports for HDMI video input.
HDMI Output Board
1
2
3
Front View of HDMI Output Board
No.
Name
Description
1
Power LED
When the board is powered on normally, the
power LED is steady green.
2
Active LED
When the board runs normally, the active LED is
flashing green.
3
HDMI video output port
Provide 4 ports for HDMI video output.
