HIKVISION DS-K1100 Series User Manual

DS-K1100 Series Card Reader
8

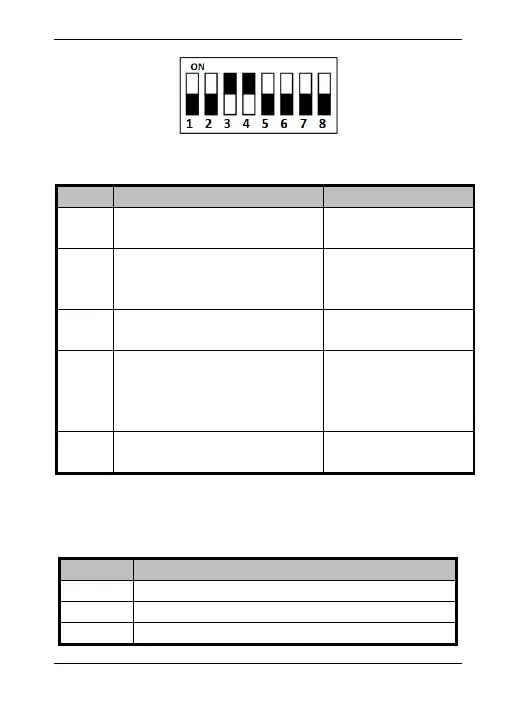

Figure 2-3 DIP Switch Module
Table 2-2 Description of DIP Switch
No.
Description
DIP Switch Status
1 ~ 4
Address of RS-485
1: 1
0: 0
5
Read card No. or file in card.
(Only available for CPU card
reader.)
1: read card No;
0: read file in card.
6
Wiegand protocol or RS-485
protocol.
1: Wiegand protocol;
0: RS-485 protocol.
7
Wiegand Protocol
(available when No. 6 is 1)
1: Wiegand protocol
of 26-bit;
0: Wiegand protocol
of 34-bit.
8
Matched Resistance
(available for RS-485 protocol)
1: Enable;
0: Disable.
2.3 Definition of Cable
The description of 10 cables is shown below.
Table 2-3 Description of Cable
Color
Description
Yellow
RS-485+
Brown
Blue LED Control (available for Wiegand Protocol)
Blue
RS-485-

HIKVISION DS-K1100 Series Specifications

General

Model	DS-K1100 Series
Category	Card Reader
Card Reading Frequency	13.56 MHz
Power Consumption	≤ 3W
Audio	Buzzer
Operating Humidity	10% to 90% (Non-condensing)
Supported Card Types	MIFARE
Communication Interface	RS-485, Wiegand
Reading Range	Up to 50 mm
Operating Voltage	12 VDC
Power Supply	12 VDC ± 10%
Installation	Wall-mounted
