HIKVISION DS-K1101MK Quick Start Guide

Title:
DS-K1100 Series Card Readers Connect
to DS-K2600 Series Access Controllers
by Wiegand
Version:
v1.0
Date:
6/21/2017
Product:
Access Control Device
Page:
2 of 5

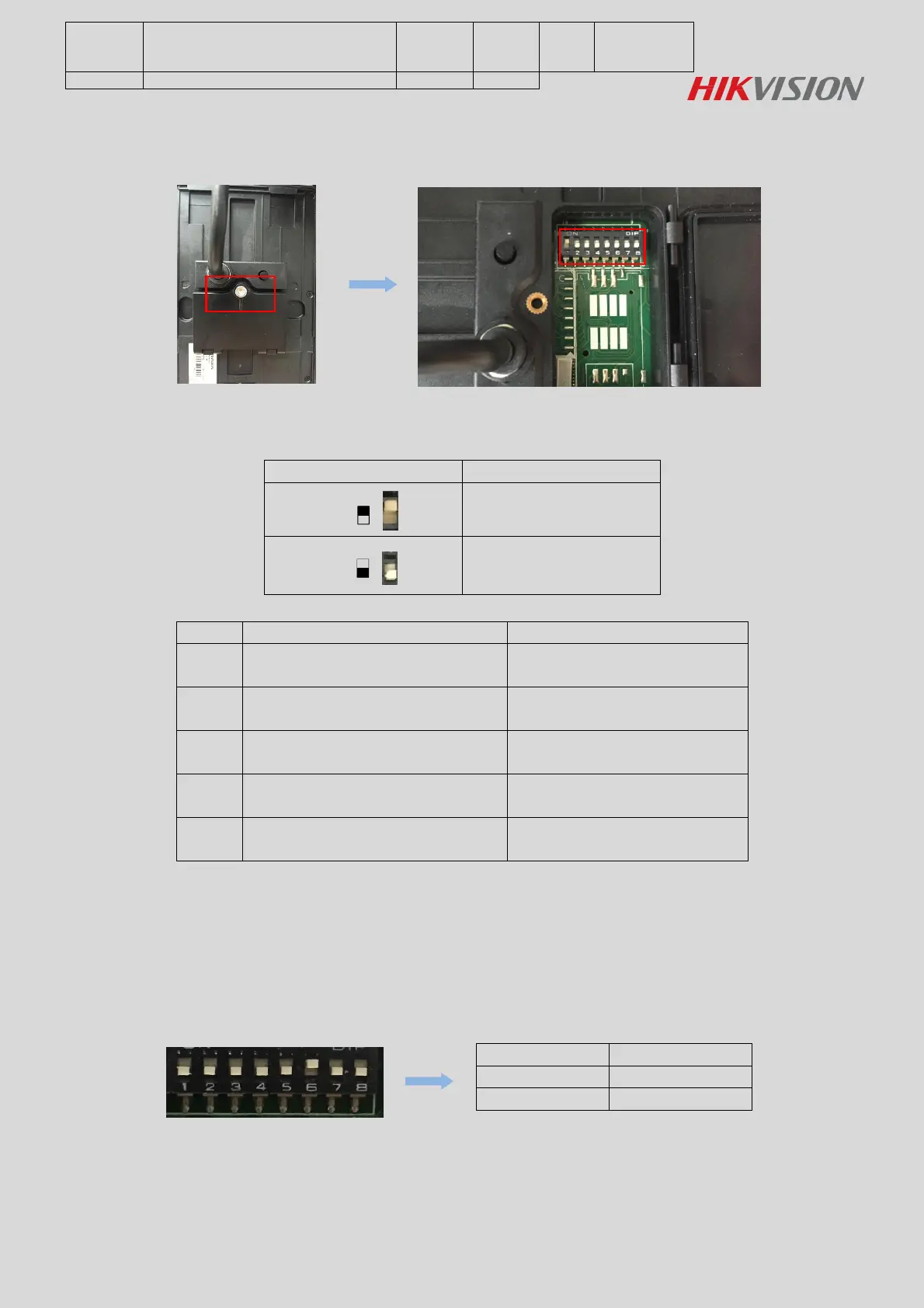

4. Please check the rear panel of card reader and unscrew it, you could find DIP switch module;
The No. of DIP switch from left to right is 1~8:
Description of DIP Switch:
Icon
Description
Represent 1 in binary mode
Represent 0 in binary mode
No.
Description
DIP Switch Status
1~4
Address of RS485
1: 1
0: 0
5
Read card No. or file in card(Reserved)
1: read file in card
0: read card No.
6
Wiegand protocol or RS-485 protocol
1: Wiegand protocol
0: RS-485 protocol.
7
Wiegand Protocol
(available when No. 6 is 1)
1: Wiegand protocol of 26-bit;
0: Wiegand protocol of 34-bit.
8
Matched Resistance(Reserved)
(available for RS-485 protocol)
1: Enable;
0: Disable.
5. We suggest customers choose RVVP cable for card reader wiring;
Step 1: DIP Switch
Please set the DIP switch firstly before connecting the card reader, please check the table below:
DIP Switch Status
Reader
0000 0100
Wiegand 34 Protocol
0000 0110
Wiegand 26 Protocol
If customers choose standard W34 protocol, the binary value of the card reader should be 0000 0100;
If customers choose standard W26 protocol, the binary value of the card reader should be 0000 0110;

HIKVISION DS-K1101MK Specifications

General

Type	Basic access control reader
Certification	FCC, CE
Product color	Black
Housing material	Acrylonitrile butadiene styrene (ABS)
Keypad integrated	Yes
Access code reader	No
Authentication type	Access chip/card, Password
Keypad number of keys	12
International Protection (IP) code	IP64
PC connected	-
DC voltage range	12 - 12 V
Power consumption	500 mA
Operating temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	92.3 mm
Width	132 mm
Height	20.5 mm
Weight	140 g
