HIKVISION DS-K1101MK Quick Start Guide

Title:
DS-K1100 Series Card Readers Connect
to DS-K2600 Series Access Controllers
by Wiegand
Version:
v1.0
Date:
6/21/2017
Product:
Access Control Device
Page:
3 of 5

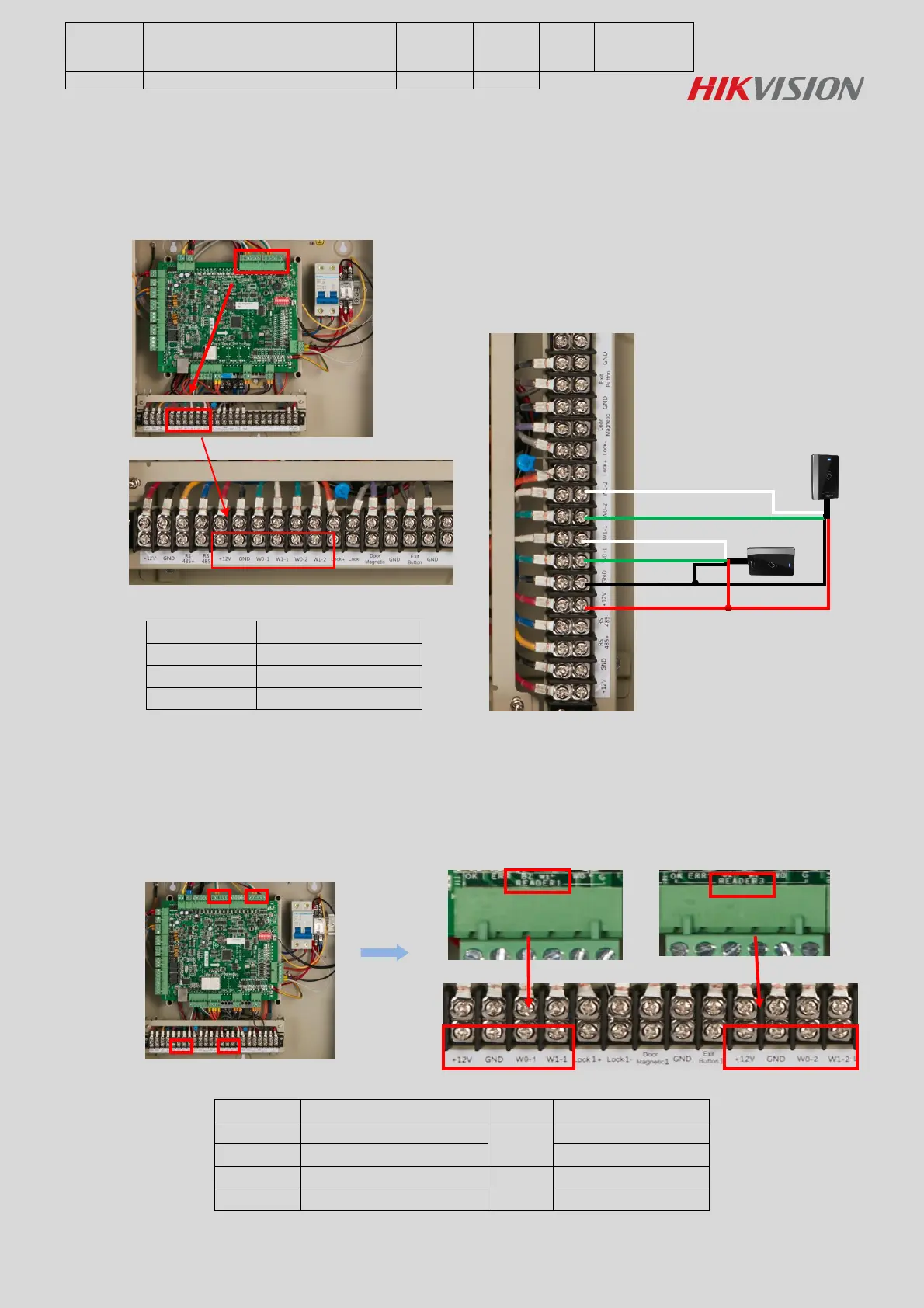

Step 2: Wiegand Wiring
DS-K2601
We extend Wiegand interface to the wiring distribution for easier cable connection, you can find +12V,
GND, W0-1, W1-1, W0-2 and W1-2 interfaces as following picture:
DS-K2602
For double-door access controller, there are four wiegand interfaces in DS-K2602 access controller, but
we only extend two wiegand interfaces to the wiring distribution for easier cable connection, because of
space limitation; for details of the correspondence, please check following pictures and table:
Interface
Wiring Distribution
Door
Reader
READER 1
+12V, GND, W0-1 & W1-1
Door 1
Entrance card reader1
READER 2
Exit card reader2
READER 3
+12V, GND, W0-2 & W1-2
Door 2
Entrance card reader3
READER 4
Exit card reader4
Interface
Reader
+12V & GND
Power supply for reader
W0-1 & W1-1
Entrance card reader1
W0-2 & W1-2
Exit card reader2
W1
W0
GND
+12V
W1
W0
READER1
READER3

HIKVISION DS-K1101MK Specifications

General

Type	Basic access control reader
Certification	FCC, CE
Product color	Black
Housing material	Acrylonitrile butadiene styrene (ABS)
Keypad integrated	Yes
Access code reader	No
Authentication type	Access chip/card, Password
Keypad number of keys	12
International Protection (IP) code	IP64
PC connected	-
DC voltage range	12 - 12 V
Power consumption	500 mA
Operating temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	92.3 mm
Width	132 mm
Height	20.5 mm
Weight	140 g
