HIKVISION DS-K1101MK User Manual

DS-K1100 Series Card Reader
2

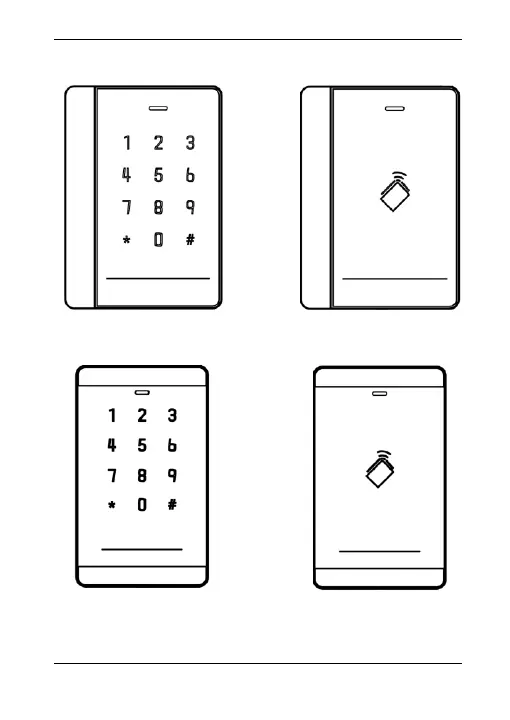

The front view of DS-K1102 series card reader is shown below:
Figure 1-3 DS-K1102MK/DS-K1102CK
Figure 1-4 DS-K1102M/DS-K1102C
The front view of DS-K1103 series card reader is shown below:
Figure 1-5 DS-K1103MK/DS-K1103CK
Figure 1-6 DS-K1103M/DS-K1103C

HIKVISION DS-K1101MK Specifications

General

Type	Basic access control reader
Certification	FCC, CE
Product color	Black
Housing material	Acrylonitrile butadiene styrene (ABS)
Keypad integrated	Yes
Access code reader	No
Authentication type	Access chip/card, Password
Keypad number of keys	12
International Protection (IP) code	IP64
PC connected	-
DC voltage range	12 - 12 V
Power consumption	500 mA
Operating temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	92.3 mm
Width	132 mm
Height	20.5 mm
Weight	140 g
